Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process

I'm Online Chat Now

Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process

China Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process supplier
Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process supplier Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process supplier Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process supplier

Large Image :  Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: si-001

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case

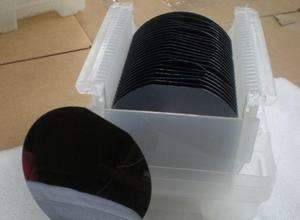

Packaging Details: 25pcs casstle in 100-grade cleaning room
Delivery Time: 20days
Contact Now
Detailed Product Description
Material: Si Single Crystal Industry: IC Semicondctor Wafer,solor ,optical Glass
Application: IC, Solor Wafer,optical Lens, Color: Blank
Method: Cz,Fz

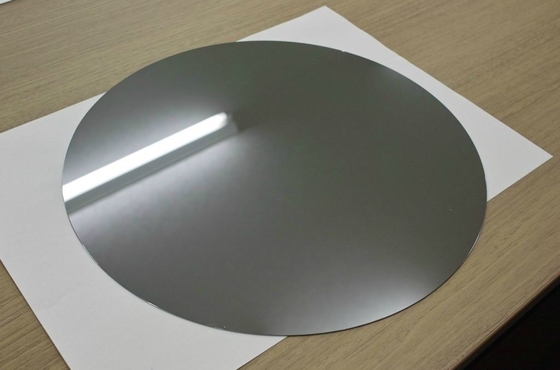

8inch sillicon wafer sillicon optical lens IC sillicon substrates sillicon ingots poly sillicon wafer



1. Specification

Diameter (mm)
50.8
76.2
100
125
150
200
Growth Method
MCZ
Type Dopant N: Arsenic / Antimony / Phosphorus/Red Phos
P: Boron
Resistivity (Ω.cm)* MCZ: 1 × 10-3 ~ 100
Thickness (μm)*
381
381
525
525
675
725
Thickness Tolerance (μm)
Typical ± 25
TTV (μm)
10
Bow (μm)
30
30
40
40
40
60
* Other surface conditions & customized specifications are welcome
Backside Seal LTO & Poly both are available
Other unmentioned parameters are per Semi Standard




CZ 8inch dummy wafer, test wafer for semiconductor process

Diameter : 200 +/- 0.5 mm ; 200 +/- 0.2 mm

Type / Dopant : P/Boron

Orientation ; <100> +/- 1º

Grade : Test ; Prime

Resistivity : 1 - 100 Ω-cm ; 8 - 12 Ω-cm

Radial Resisivity Gradient: — As Specified

Oxygen :— As Specified

Carbon :— As Specified

Metals : < 5 x E10 atoms/cm2

Thickness : 725 +/- 25 μm ; 725 +/- 15 μm

TTV : <= 10 μm ; <= 5 μm

GTIR : <= 2 μm

Bow / Warp : <= 50 μm ; <= 40 μm

STIR :— <= 2 μm

Flats:SEMI Standard

Particle Count : <= 30 @ >= 0.2 μm ; <= 50 @ >= 0.09 μm

Polished : Single Side Polished or Double Side Polished

Etched : Single Side Polished or Double Side Polished

* N type wafers available

Black 8 Inch IC Silicon Wafer Silicon Ingots Polysilicon For Semiconductor Process

About wafer process

crystal growth body--->crystal cutting by wire saw----->spheronizations

----->annealing------>engraving number--->lapped &polished---> Testing



FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: How to pay?

A: T/T, Paypal, Secure payment and Assurance payment.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 25pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

(2) For the special-shaped products, the delivery is 4 workweeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical components

based on your needs.
