Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal
  • Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal
  • Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal
  • Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal
  • Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal
  • Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal

Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal

Place of Origin china
Brand Name zmsh
Model Number 10x10mm
Product Details
Material:
Sic Single Crystal
Industry:
Semiconductor Wafer,
Applications:
Device,epi-ready Wafer, 5G,power Electronics,detector,
Color:
Green,blue,white
Customized:
Ok
Type:
4H-N,6H-N
High Light:

sic wafer

,

sic substrate

Product Description

10x10mm 5x5mm customized square sic substrates ,1inch sic wafers,sic crystal chips, sic semiconductor substrates, 6H-N SIC wafer, High purity silicon carbide wafer
----------------------------------------------------------------------------------------------------------------------------
we offers semiconductor materials, especially for SiC wafer, SiC substate of polytype 4H and 6H in different quality grades for researcher and industry manufacturers. We has a good relationship with the SiC crystal growth factory and,we own also have the SiC wafer processing technology, established a production line to manufacturer SiC substrate and SiC wafer. As a professional company invested by the leading manufacturers from the fields of advanced and high-tech material research and state institutes and China's Semiconductor Lab, we are devoted to continuously improve the quality of SiC wafer, currently substates and develop large size substrates.

Application areas
1 high frequency and high power electronic devices Schottky diodes, JFET, BJT, PiN,
diodes, IGBT, MOSFET
2 optoelectronic devices: mainly used in GaN/SiC blue LED substrate material (GaN/SiC) LED
Customized Size Square Sic Chip Low Lattice Mismatch With High Thermal 0


Advantagement
• Low lattice mismatch• High thermal         conductivity

• Low power consumption

• Excellent transient characteristics

• High band gap


commen 2inch size for sic substrates

2inch diameter Silicon Carbide (SiC) Substrate Specification
GradeZero MPD GradeProduction GradeResearch GradeDummy Grade

Diameter50.8 mm±0.2mm

Thickness330 μm±25μm or 430±25um Or 1000um±25um

Wafer OrientationOff axis : 4.0° toward <1120> ±0.5° for 4H-N/4H-SI On axis : <0001>±0.5° for 6H-N/6H-SI/4H-N/4H-SI

Micropipe Density≤0 cm-2≤5 cm-2≤15 cm-2≤100 cm-2

Resistivity4H-N0.015~0.028 Ω•cm

6H-N0.02~0.1 Ω•cm

4/6H-SI≥1E5 Ω·cm

Primary Flat{10-10}±5.0°

Primary Flat Length18.5 mm±2.0 mm

Secondary Flat Length10.0mm±2.0 mm

Secondary Flat OrientationSilicon face up: 90° CW. from Prime flat ±5.0°

Edge exclusion1 mm

TTV/Bow /Warp≤10μm /≤10μm /≤15μm

RoughnessPolish Ra≤1 nm

CMP Ra≤0.5 nm

Cracks by high intensity lightNone1 allowed, ≤2 mmCumulative length ≤ 10mm, single length≤2mm


Hex Plates by high intensity lightCumulative area ≤1%Cumulative area ≤1%Cumulative area ≤3%

Polytype Areas by high intensity lightNoneCumulative area ≤2%Cumulative area ≤5%


Scratches by high intensity light3 scratches to 1×wafer diameter cumulative length5 scratches to 1×wafer diameter cumulative length5 scratches to 1×wafer diameter cumulative length


edge chipNone3 allowed, ≤0.5 mm each5 allowed, ≤1 mm each

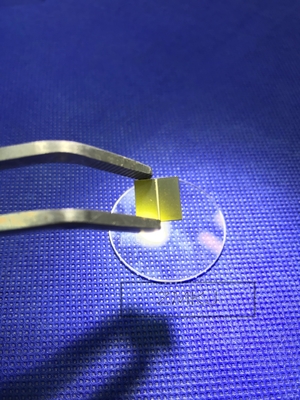

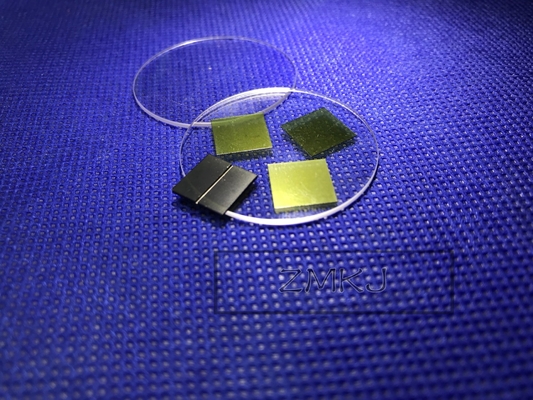

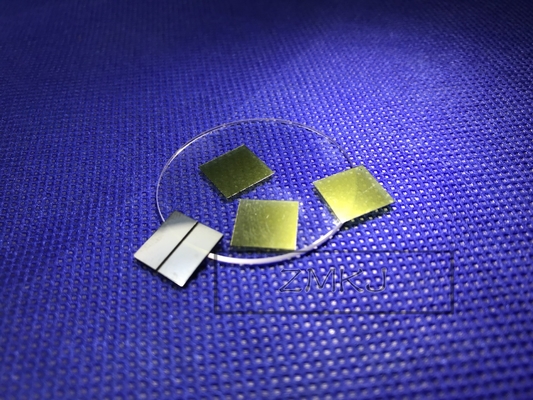

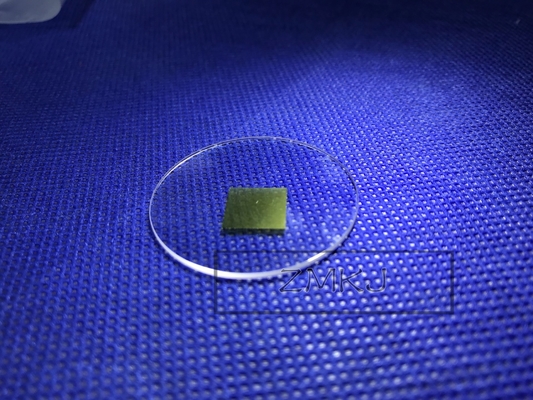

picture size: 10x10x0.5mmt,
tolerance:±0.03mm
match depth x width: 0.4mmx0.5mm
TYPE:4H-semi
surface: polished (ssp or dsp)
Ra:0.5nm
