Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials

I'm Online Chat Now

Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials

China Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials supplier
Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials supplier Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials supplier

Large Image :  Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials

Product Details:

Place of Origin: china
Brand Name: zms
Model Number: lens-025

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: by case
Packaging Details: carton case
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Color: Colorless Transparent Vision Light Transmissivity: 85%
Advantagement: Hardness 9.0,wear Resistance, Applications User: Iphone Camera Glass,phone,protect Window
Industry: Electronic Product Protect Glass Cover,led,optical Glass,epi-ready Wafer Materials: 99.999% Al2O3

sapphire optical glass window,Al2O3 sapphire lens for window ,sapphire glass,sapphire led substrates .sapphire wafer



1.

About Sapphire

Feature

+ can be customized as design size,shape,bevel chamfer,tolerance,artwork;
+ have normal size in stock;
+ Widely uesd for watch glass,optical window,lens,militry etc;
+ The material is synthetic sapphire(hardness 9H) ;
+ Flatness: <20μm;
+ Surface quality:40/20;



Sapphire is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-tech fields.



Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.



Comparison of optical window materials

        Material                                      Properties                                                               Applications
 BK7                           Transmission Range: 330-2100nm
Refractive Index: 1.5164@588nm
          Most popular and low cost
Visible and near IR spectrum applications
       Fused Silica        Transmission Range: 185-2500nm
Refractive Index: 1.4858@308nm
Low Thermal Expansion                  Coefficient: 0.54 x 10-6K
              UV to IR spectrum
    Best choice for thermal resistance
application.
          Sapphire         Transmission Range: 180-4500nm
Refractive Index: 1.755@1000nm
Strong Hardness
      Best choice for scratch resistance    applications Thinner optics Wide Transmission Range
  Calcium Fluoride     Transmission Range: 170-7800nm
Refractive Index: 1.399@5000nm
Little Hygroscopic Susceptibility
High Thermal Expansion                  Coefficient: 18.85 x 10-6K

                IR laser applications

     MgF2               Transmission Range: 120-7000nm
Refractive Index: 1.376@700nm
              UV laser applications



2.specification

sapphire Windows general specifications
Diameter:                       0.2-300mm or customization
Diameter tolerance  :        +/-0.1mm or +/-0.02mm
Thickness :                        0.10-100mm
Thickness tolerance:         ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy :             λ/4, λ/2, λ
Clear Aperture :              >85%, >90%
Parallelism :                  +/-3' ,+/-30''
Bevel :                          0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)



applications



Applications

- For LED substrate application (2-8inch wafer)

Sapphire wafer and substrate applications include:
- Microelectronic IC applications - SOS Silicon-on-Sapphire
- Growth of superconducting compounds / Gallium Nitride - Infrared detectors
- Hybrid microelectronics - Polishing carriers
Sapphire optical lens Aapplications points:(customized shape)

-Hostile environment
-Optical transmission from ultraviolet to near infrared
-High temperature
-Radiation resistance sapphire bearing

-sapphire ball for measuring equipment.



3. Our products

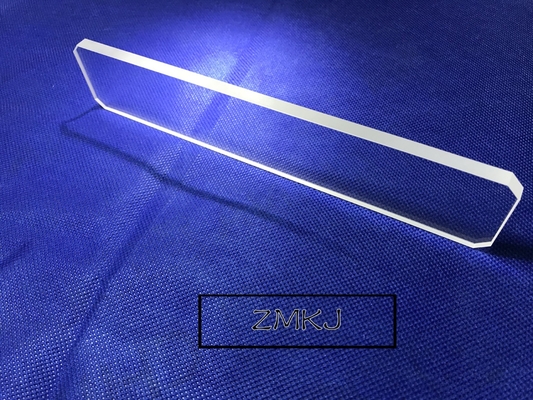

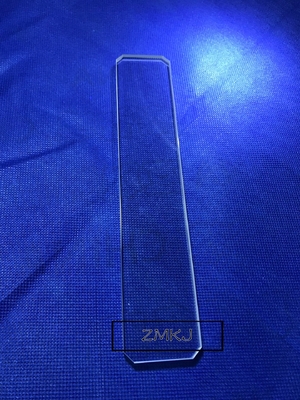

Colorless Transparent Sapphire Optical Windows With 99.999% Al2O3 Materials





FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them

and Freight is in accordance with the actual settlement.



Q: What's your MOQ and Delivery Time ?

A: (1) For inventory, the MOQ is 10pcs. if 25pcs it's better in 10days.

(2) For customized products, the MOQ is 25pcs up in 2-4weeks.





About our package & delivery



Packaging products → PET film in cleaning room
Inner packing → Foam plastics anti-vibration cushion liner for package
Outer packing → five layers corrugated carton paper box or as required
Shipping by air → UPS , DHL , Fedex , TNT, EMS ,SF ,etc
