Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance
  • Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance
  • Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance
  • Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance
  • Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance
  • Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance

Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance

Place of Origin china
Brand Name zmkj
Model Number tube-013
Product Details
Materials:
99.999% Al2O3
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement:
High Hardness9.0,wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance:
85%
Color:
White Or Red Or Blue
Shape:
Tube
Orientation:
C(0001)
Surface:
Rough
Size:
Dia30xdia26x50mm
High Light:

sapphire tube

,

sapphire windows

Product Description

sapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



Why choose the sapphire?4inch C-axis sapphire wafer for led epi-ready,optical  glass lens for  covering by sapphire,sapphire optical windows

1 - Thinner and Stronger than Standard Glass Windows
2 - Transmits Wavelengths Ranging From UV to Mid-Infrared

3 - Features Extreme Surface Hardness and Chemical Resistance

Sapphire rods are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.
-----------------------------------------------------------------------------------------------------------------------------------

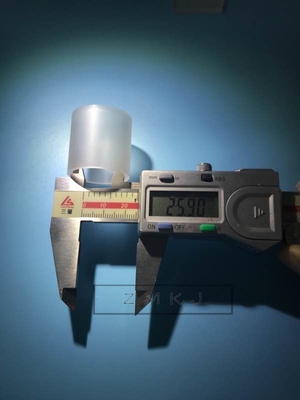

Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 1

                  Item
Aluminum oxide (Al2O3) crystal substrate
      Crystal structure



six square a =4.758 Å c= 12.992 Å
         Crystal direction



(11-20 ) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å
(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å
    Single crystal purity



> 99.99%
         Melting point



2040 oC



commen size for sapphire tube

sapphire Windows general specifications
inner and outer Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)



3.0 sample

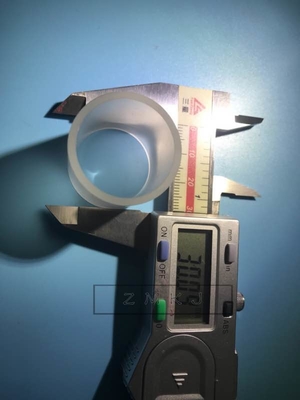

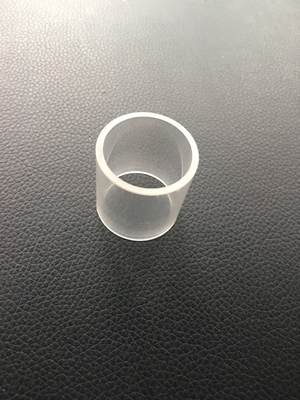

Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 2Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 3

4.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

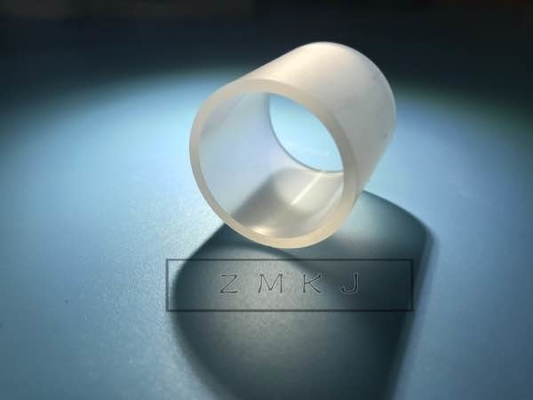

Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 4

other semiconducting material products

Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 5

5.0 packing



Sapphire Optical Glass Lens , Single Crystal Glass With Chemical Resistance 6

6.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
If not, we could assist you to deliver. Freight by FOB.

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.

Q: How to pay?
50%deposit,50% before delivery,T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance on Alibaba and etc..

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics

Q: Do you have inspection report for material?
We can supply detail  report  for our products.
