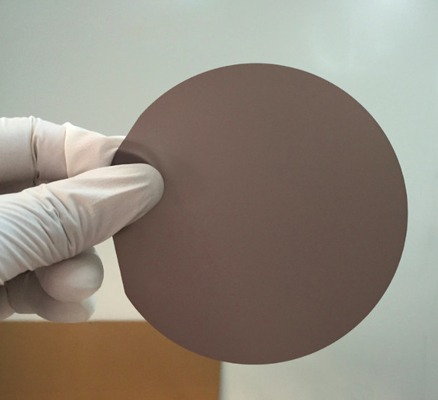

Piezoelectric Crystal LiTaO3 LiNbO3 Wafers , Black LT And LN Wafer For Saw
  • Piezoelectric Crystal LiTaO3 LiNbO3 Wafers , Black LT And LN Wafer For Saw
  • Piezoelectric Crystal LiTaO3 LiNbO3 Wafers , Black LT And LN Wafer For Saw

Piezoelectric Crystal LiTaO3 LiNbO3 Wafers , Black LT And LN Wafer For Saw

Place of Origin CHINA
Brand Name zmkj
Model Number LT-3inch
Product Details
Materials:
LiTaO3 Single Crystal
Industry:
Semiconductor Wafer,saw Wafer,optical Wafer
Application:
5G,SAW Device,optical Glass,
Color:
Yellow, Red,black
Customized:
Ok
Thickness:
0.2~1.0mm By Customized Ok
Size:
2-6inch
High Light:

black lt

,

litao3 wafer

Product Description



3inch dia76.2mm Lithium tantalate LiTaO3 lithium niobate LiNbO3 wafer substrates,

Black LT and LN wafer for saw,​3inch, 4inch,6inch LiTaO3 wafer



Piezoelectric Crystal Lithium Tantalate LT LiTaO3 crystals

Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.



Specification

SAW grade





Orientation

36°Y-cut±0.2° 42°Y-cut±0.2° X-cut±0.2°
Diameter 76.2±0.3mm, 100±0.3mm ,150±0.3mm
1st OF Flat 22±2mm,32±2mm,47.5±2mm perpendicular to X-axis±0.2° 22±2mm,32±2mm,47.5±2mm perpendicular to 112°Y±0.2°
2st OF Flat 10±2mm CW270°from 1st OF 10±2mm CW315°from 1st OF 10±2mm CW315° Or 270°from 1st OF
Thickness 200~250±25um,300-350±25um,500±25um
Front surface "+",Ra<1nm,
Back surface GC#1000, GC#2000 Lapped
LTV <1um,at5x5mm zone
BOW ≤25um



Opitcal Grade LiTaO3/LiNbO3 wafers



Orientations                    X-cut                                           Z-cut



Diameter                   76.2±0.3mm                                   76.2±0.3mm



Orientation Flat

(OF)                                     perpendicular to X±0.2°



Thickness                                   0.2-5mm



Surface Quality                          double side polished S/D 20/10,40/20



TTV                                                    <15um



BOW                                                  <30um



 Curie  Temperature                              605±2°



Edge  beveling                                      Edge   rouding





Feature Piezoelectric Crystal LiTaO3 crystals

Excellent photoelectric property
High Damage Threshold
High Curie Temperature



Piezoelectric Crystal LiTaO3 crystals

Specification Conventional High Precision
Materials LiTaO3(LT) LiTaO3(LT)
Orientation X-112°Y,36°Y,42°Y±0.5° X-112°Y,36°Y,42°Y±0.5°
Parallel 30″ 10''
Perpendicular 10′ 5'
surface Quality 40/20 20/10
Wavefront Distortion

λ/4@632nm



λ/8@632nm



Surface Flatness

λ/4@632nm



λ/8@632nm



Clear Aperture >90% >90%
Chamfer <0.2×45° <0.2×45°
Thickness/Diameter Tolerance ±0.1 mm ±0.1 mm
Maximum dimensions dia150×50mm dia150×50mm





Properties LiTaO3(LT)
Type of Material Single Crystal
Crystal Structure Trigonal,a = 5.154, c = 13.784Å
Melting Point 1650℃
Curie Temperature 607
Transmission Range 400 – 5000 nm
Absorption edge 270nm
Absorption loss < 0.15 %/cm @ 1064 nm
Refractive Index no=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density 7.45g/cm3
Thermal Conductivity 8.78x 10-7 m2/sec
Optical homogeneity ~10-5
Hardness (Mohs) 5
Elastic Coefficient CE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constant ε110 52.7
ε330 44.5
Solubility in Water insoluble in water
NLO Coefficients d33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficients r31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold 2 MW/cm2@532nm
Standard Diameter

dia150x50mm



Piezoelectric Crystal LiTaO3 LiNbO3 Wafers , Black LT And LN Wafer For Saw 0



FAQ



Q1. Is your company a factory or trade company?
We have a factory and we also do export by ourself trading company .

 We are the Sapphire substrates manufactuer  and also can produce many type crystal into wafers.


Q2. Could you supply sample?
Yes,we can supply  sample according to customer's requirement.

Q3. Do you have any stock of wafer or ingots?
We process  many size wafer and lens  according to customer requirement.

almost 3inch ,4inch standard thickness wafers is in stock.

  So we have few size in stock if it's commen specification.

Q4.Where is your company located?
Our company located in shanghai,China. factory is in wuxi city.

Q5. How long will take to get the products?
Generally it will take 1-3 weeks to process,standard wafer size common can be deliveried in 2weeks

if customized size It is depend on the quantity and the size of the products.
