|Material:||SiO2 Crystal||Industry:||Semicondctor Wafer,optical Glass|
|Application:||Commnnicatoin，cover Glass， Semiconductor Cover，||Size:||Dia1-200mm|

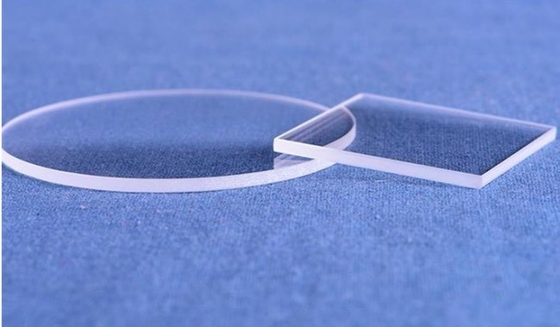

fused silica wafer
quartz optical glass windows , optical glass lens, quartzs glass plates ,quartz optical windows, sio2 quartzs substrates, GS1,GS2 quartz cover lens
|1. Incredibly thermally shock resistant (can be taken from red heat and plunged into water without cracking)||4. Good chemical resistance|
|2. Low thermal coefficient of expansion (TCE) and high softening temperature||5. Excellent electrical insulator|
|3. Optical transmission properties from ultra violet to infra red||6. High radiation resistance|
(Medium transmission ratio)
|0.17~2.10um (Tavg>90%)||0.26~2.10um (Tavg>85%)||0.185~3.52um (Tavg-85%)|
|Fluorescence (ex254nm)||Virtually Free||Strong V-B||Strong V-B|
|Melting Method||Synthetic CVD||Oxy-Hydrogen melting||Electrical melting|
|Applications||Laser substrate, window, lens, prism, mirror||Semiconductor and high temperature window||IR & UV substrate|
sample in details

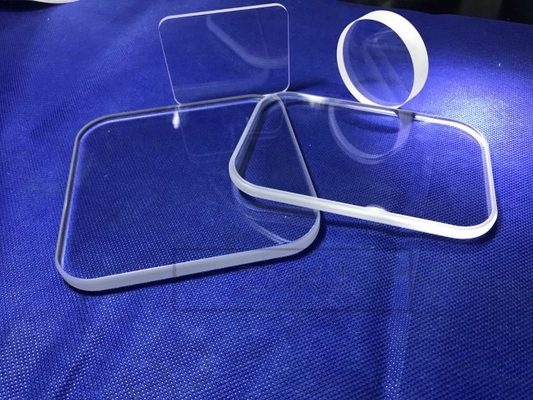

Application for quartz plate
UV curing, optical instrument, sight glass, observation window for furnace, semiconductor, lighting, special light source, photoelectron, military industry, metallurgy, semiconductor, chemistry, optical communication, etc.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them. Freight is in accordance with the actual settlement.
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 25pcs.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
(2) For the special-shaped products, the delivery is 4 workweeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical
components based on your needs.
packing ＆ delivery
>> Packaging – Logistcs
we concerns each details of the package , cleaning, anti-static , shock treatment .
According to the quantity and shape of the product , we will take a different packaging process!
