Double Side Polished Sapphire Windows For Fingerprint Recognition Applications

I'm Online Chat Now

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications
Double Side Polished Sapphire Windows For Fingerprint Recognition Applications Double Side Polished Sapphire Windows For Fingerprint Recognition Applications

Large Image :  Double Side Polished Sapphire Windows For Fingerprint Recognition Applications

Product Details:
Place of Origin: china
Brand Name: zms
Model Number: lens-001
Payment & Shipping Terms:
Minimum Order Quantity: 30pcs
Price: by case
Packaging Details: carton case
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications

Description
Vision Light Transmissivity: 85% Industry: Electronic Product Protect Glass Cover,led,optical Glass,epi-ready Wafer
Materials: 99.999% Al2O3 Color: Colorless Transparent
Advantagement: Hardness 9.0,wear Resistance, Applications User: Iphone Camera Glass,phone,protect Window
High Light:

sapphire glass lens

,

sapphire glass window

Al2O3 sapphire glass lens for window ,sapphire led substrates . optical glass lens by sapphire,sapphie crystal glass





1. Sapphire Feature
+ can be customized as design size,shape,bevel chamfer,tolerance,artwork;
+ have normal size in stock;
+ Widely uesd for watch glass,optical window,lens,militry etc;
+ The material is synthetic sapphire(hardness 9H) ;
+ Flatness: <20μm;
+ Surface quality:40/20;

Sapphire is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-tech fields.

Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.

Property  Specification
Thickness                     0.5-50mm
Size tolerance                0.005mm
Edge Finish             Ground and beveled
Surface Quality        commen 40-20 scratch-dig
Surface Flatness         the best λ/4 @ 633 nm
Parallelism               ≤3 arc min (≤0.9 mrad)
Clear Aperture         >80% of central diameter
Hardness (Knoop)        1370 kg mm-2
Young's modulus        3.4 x 1011 N m-2
Thermal Limit              22 W m-1 K-1
Thermal expansion coefficient 8.4 x 10-6 K-1

Our company provide the sapphire single crystal wafers by KY method,we can supply sapphire ingot(2inch,4inch,6inch,8inch),sapphire wafer(single/double side polishing),sapphire block,

all kinds of sapphire optical window(applied to optical equipment,industry camera,cell phone watches

and other special optical components),if you have any requirements,please contact us,

looking forward to your cooperation.





Sapphire applications:



1. LED substrate     2.mobile cover glass appliations

3.wrist watch and other consumer electronics cover glass

4.fingerprint recognition applications

5.Military applications

6. laser matrix & optical element applications

7.sapphire seed for crystal grow

8.artifical jewelry

9.mecanical parts bearing applications

10.sapphire ball for detecting instrument





2.Commen  Size For Sapphire Lens

Materials: 99.999% sapphire optical grade ,no bubble ,color and crystal boundar.

size:dia0.5~dia300mm

size:Dia10x0.5mmt(pictures sample size)

Orientation:C(0001)±1°,(A,R, M,C ok)

Tolerance:±0.03mm(the best on ±0.01mm)

surface: double side poshlied (1sp also ok)

Ra:<0.5nm              (commen <0.3nm)

SD:40/20 ,60/40          ( commen 40/20)

Flatnees: 1/2 Lambda(or 1/4,1‘~2’, is ok)



specification for led substrates

Crystal Materials 99.995% High Purity, 2-3 Grade Monocrystalline Al2O3
Wafer Surface Orientation C-axis(0001) offset to M (1-100) / A (11-20) 0.2°±0.05° / 0.3°±0.1° / ±0.25°
Diameter 50.8mm ± 0.1mm / 76.2mm ± 0.25mm / 100.0 ± 0.4mm / 125.0 ± 0.3mm / 150.0 ± 0.3mm
Thickness 330um ± 10um 430um ± 10um 500um ± 15um
Major Flat A-axis (1 1-2 0) ± 0.2°
Major Flat Length 16.0mm ± 1.0mm / 22.0mm ± 1.0mm / 32.5 ± 1.0mm / 47.5 ± 2.5mm
Minor None
Front Surface Finish Epi polished, Ra< 0.20nm
Back Surface SSP: Fine ground, Ra 0.4 to 1.0um; DSP: Polished
Edge condition Edge defects not to exceed SEMI M3-91
TTV <15um <10um <10um
BOW <15um <10um <10um
Warp <15um <10um <10um
Bubble & Color None by visual inspection in intensive light
Ground Boundary None by visual inspection in fluorescent light
Cleanliness Free visible contamination
Packaging Packaged in a class 100 clean room environment, in cassettes of 25pcs or single fluroware, under a nitrogen atmosphere.
Note R-plane (1-1 0 2), A-plane (1 1-2 0 ), and M-plane(1-1 0 0) are available; Customer's specification not listed above is also available upon request.

3. Our products

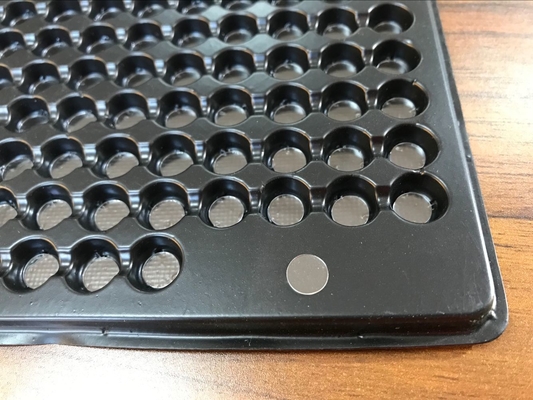

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications 0

other shape and size which we can provide

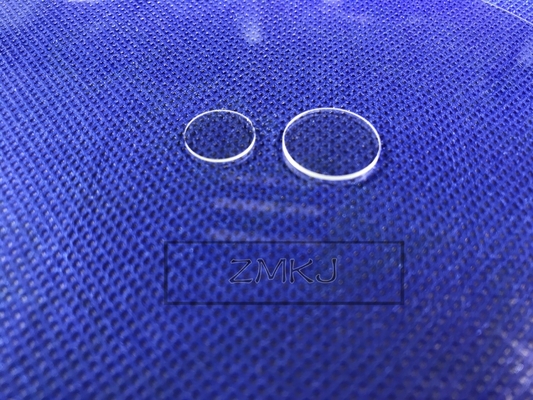

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications 1

We  also supply professional  other semiconductor wafers aslike below

Double Side Polished Sapphire Windows For Fingerprint Recognition Applications 2
