Product Details:
Place of Origin: china
Brand Name: zmsh
Certification: ISO9001
Model Number: hexagon sapphire wafers 21D10W1200
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET Films
Delivery Time: within 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/30days

Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness

Description
Material: Al2O3 Single CRYSTAL Type: Sapphire Wafers
Advantagement: High Hardness9.0,wear Resistance, Application: Semiconductor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
Vision Light Transmissivity: 85% Color: Colorless
Thickness: 0.1mm Shape: Hexagon
High Light:

Polygon Hexagon Sapphire Glass Wafers

,

0.1mm Sapphire Optical Windows

,

Al2O3 Sapphire Optical Windows

polygon hexagon shape sapphire glass wafers by customized ultrathin 0.1mm thickness



 sapphire optical windows





 1. 2 Sapphire Introduce on advantagement



1.high temperature resistant, Sapphire Round / Rectangular Optical Window can work

under 1200°C continuously,and in short time can even work under 1450°C,Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness 0its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.

2.Corrosion resistant, Except hydrofluoric acid, Quartz Plate Of Optical Grade do not

react with any acid and base except hydrofluoric acid.the stability is30 tims of the ceramic,and 150 times of stainless steel .

3.Excellent thermal shock stability

4.High transmission to 85%

5.Electric insulation ,it is 10000 times of usual glass



1. Product Description
Item

Aluminum oxide (Al2O3) crystal substrate

Crystal structure
six square a =4.758
Å c= 12.992 Å
Crystal direction
(11-20 ) - a plane: 2.379
Å (1-102) - r plane: 1.740 Å
(10-10) - m plane: 1.375 Å
(0001) - c plane: 2.165 Å
Single crystal purity > 99.99%
Melting point

2040 oC





2.  our ablity  for sapphire

Grade: sapphire optical no bubble ,chippng ,scrap,

Orientation:C or A, M, R±1°,

thickness :~ 0.05mm:

shape:  by customized

Surface:Double side polished   SD:20/10,

Tolerance:  >0.01mm

Flatness :>1/4 lambda

Ra:<0.3nm





3. About process for sapphire lens

Sapphire Crystals body-->sapphire block/ingots in custiomzed axis---> (anneal->)check--> wire saw cut

--> repair shape-->rough lapped-->polished--> wash & finished check





sapphire window detail:

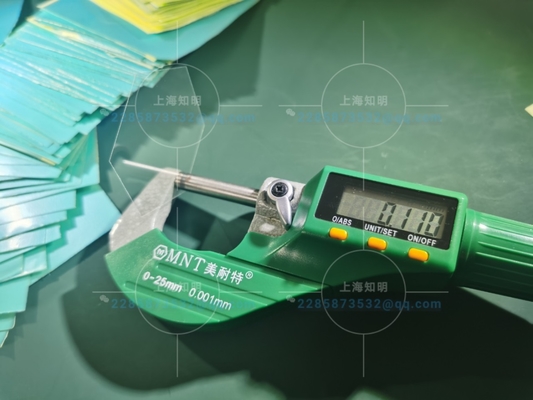

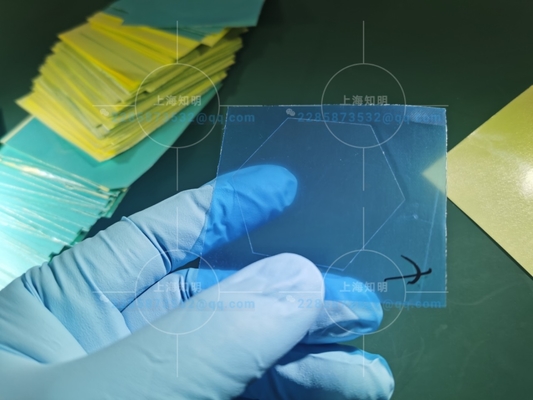

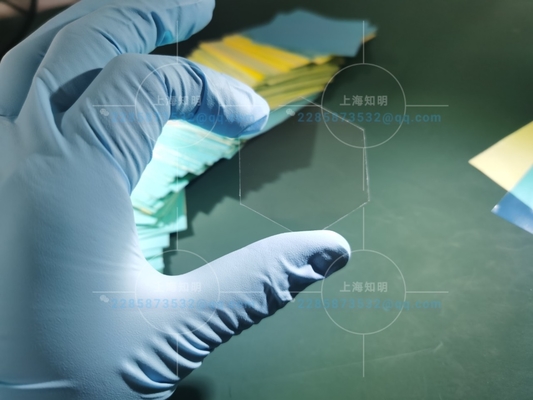

Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness 1Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness 2

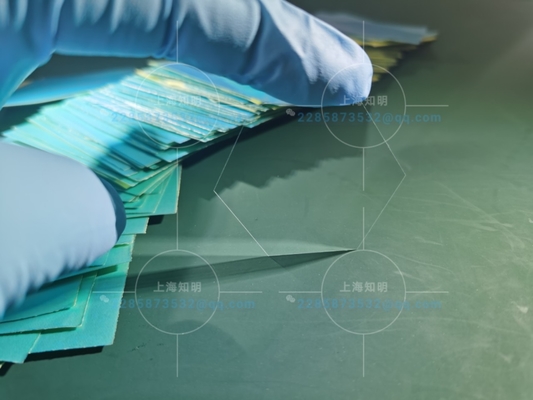

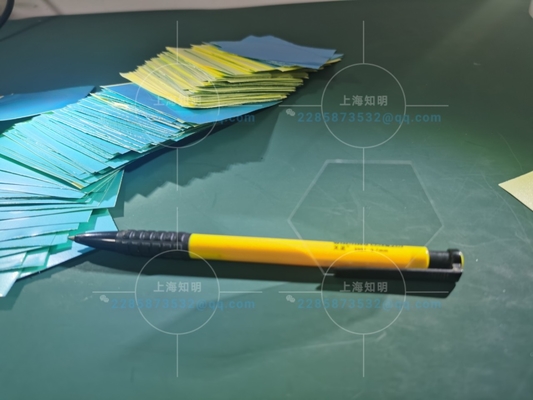

Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness 3Polygon Hexagon Sapphire Glass Wafers 0.1mm Thickness 4



Advantages of us company ZMKJ

1. 5 years experiences on sapphire glass manufacturing and exporting.

2. Top quality glass for exporting to more 80 countries in the world.

3. Provide the quality assurance for 1years

4. Have all equipment shoud have from crystal block to wafer polished process

5. Professional sales team, offering personalized and dedicated services for 24 hours.



4. FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 5pcs Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 10-30 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT by FOB. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer

    you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable
