Sapphire Optical Windows
>
|
| Place of Origin | china |
| Brand Name | ZMKJ |
| Model Number | hole-001 |

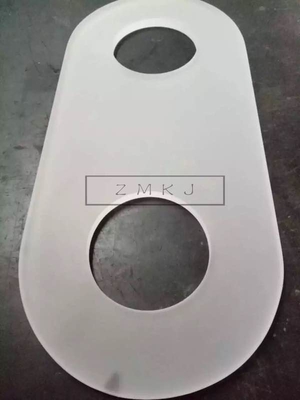

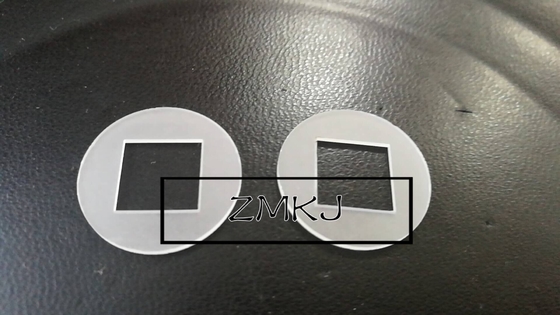

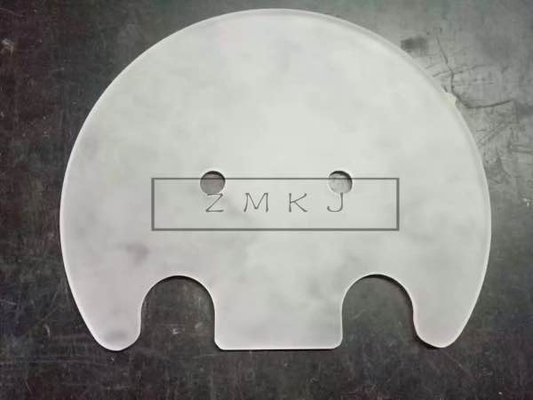

special shape sapphire optical lens with hole , Al2O3 single crystal glass, optical glass sapphire wafer,sapphire glass plate
Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.
Merit from Comparison with other material optical lens
1-Thinner and Stronger than Standard Glass Windows Because Hradeness9.0
2- can use in Close to 2000° temperature environment
3-Transmits Wavelengths Ranging From UV to Mid-Infrared
4-Features Extreme Surface Hardness and Chemical Resistance
----------------------------------------------------------------------------
We can supply professional customized service in time and provide cooperation and support of new
product development and technology appliance.
Professional Customized Optical sapphire window sapphire lens and sapphire sphere
Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes,
Rubysapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/
ruby ball Professional Customized Optical sapphire window sapphire lens and sapphire sphere
Materials characteristic
Refractive index:(nd) 1.768
Coefficient of dispersion (Vd) 72.2
Density(g/cm3) : 3.97
TCE(μm/m℃) 5.3
Soften Temperature(℃) :2000
Knoop hardness(kg/mm2): 2200
-------------------------------------------------------------------------------------------------
sample size
size: diameter30 mm ±0.05mm
Inner size:10x10mm±0.05mm
Thickness: 0.7mm
surface:LP /LP or Polished/LP
orientation:A or C
Sapphire Windows and Sapphire lenses General Specifications
Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)
and we also offer 1-8inch size sapphire ingot.
Material - High Purity Monocrystalline Sapphire (99.996%)
No Grain Boundaries, Twins, Lineages or Crack
Orientation:
C –Plane (0001) A –Plane (11-20)
R –Plane (10-12) M –Plane (10-10)
Diameter Up to 380 mm
Length Up to 200 mm
Surface Finish As Cored / Fine Ground
Available Option Primary Orientation Flat
Customer specification also available!
process for sapphire wafer ＆ lens
crystal—>confirm orientation --> customized size ingot--> cut top and tail--> repair diameter—>
wire cut-->chamfer-->grind lap-->anneal--> fine lapped-->polished to customized size-->check
