Ti Titanium Doped Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness

I'm Online Chat Now

Ti Titanium Doped Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness

China Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness supplier
Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness supplier Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness supplier Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness supplier

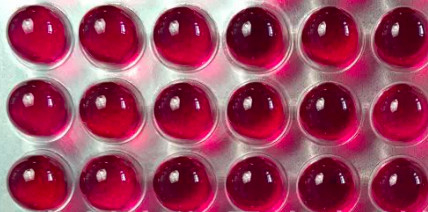

Large Image :  Ti Titanium Doped Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: chips-001

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case by color
Packaging Details: by case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/months
Contact Now
Detailed Product Description
Material: Al2O3 Single Crystal Industry: Semiconductor Wafer ,optical Glass Wafer
Application: Led Eli-ready Wafer, Optical Protective Window,bearing,electric Ceramic, Hardness: 9.0
Vision Light Transmittance: 85% Color: Red 1#-5#
Method: KY Or Cz

Ruby optical glass,Titanium sapphire optical lens,Titanium sapphire laser crystals,ruby glass ball,Sapphire and Ruby Ball Lenses



1. About Specifications Decribtion

Sapphire and Ruby ball lenses are both made from Al203. Ruby or Ruby-Doped sapphire owes its red color to traces of chromium oxide (chromium content for ruby balls is typically >0.5%). While their physical and chemical properties are basically the same, their optical properties are somewhat different. Sapphire has superior optical transmission qualities. Ruby Balls are easier to see and therefore easier to handle for physical applications.



Grade: optical  grade without bubble,

size:(pictures sizes)40x40x50mml,dia100x20mmt,(dia1~100mm ok)

Orientation:C(0001)±0.5°,

surface:polished/lapped either ok

color grade:(picture)block5#, ingot 2#,



Materials Ti3+:Al2O3
Concentrations (0.05~0.35)wt%Ti2O3
Orientation A-Axis within 5°,E-vector parallel to C-Axis
End Configuration flat/flat or Brewster/Brewster ends
Absorption Coefficence 0.5~6.0cm-1
Figure of Merit 100~300
Coatings Standard coating is BBAR with R < 5.0% each face at 532 nm and R < 0.5% each face, 650 nm to 850 nm.Other coatings available.

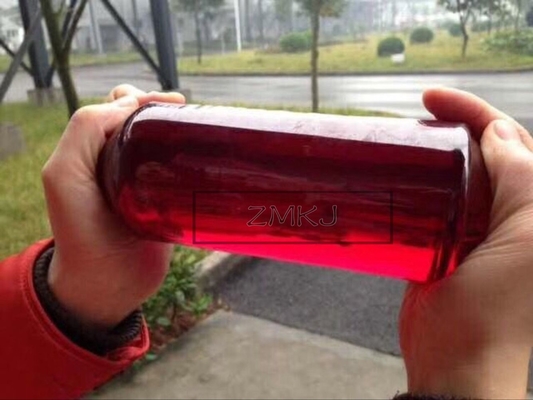

Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness

The Advantagement for Ruby Sapphire

  • Excellent for Severe Environments
  • High Strength and Hardness
  • High Chemical Stability
  • Sapphire and Ruby Half-Ball Lenses Also Available
Common Specifications
Type:Ball Lens
Coating:Uncoated
Diameter Tolerance (μm):±2.54
Sphericity (μm):   0.64
Diameter :dia3mm,dia5mm,dia8mm,dia10mm,dia20mm,dia50mm,dia100mm


we also provide other commen size sapphire glass lens and wafers

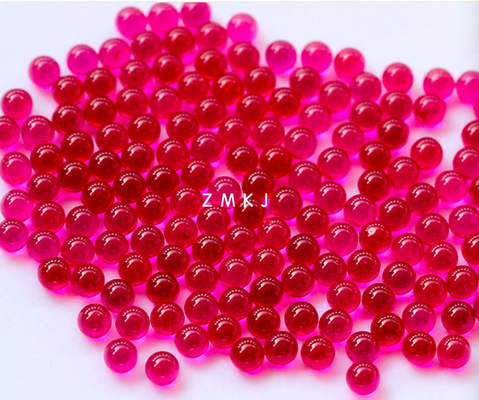

Ti Titanium Doped  Synthetic Ruby Ball Sapphire Ingot 9.0 High Hardness

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: How to pay?

A: 100% T/T, Paypal, Secure payment and Assurance payment.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 25pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

(2) For the special-shaped products, the delivery is 4 workweeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical components

based on your needs.
