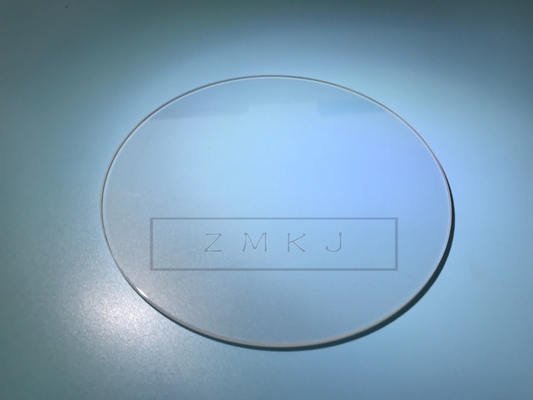

Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size

I'm Online Chat Now

Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size

China Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size supplier
Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size supplier Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size supplier

Large Image :  Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size

Product Details:

Place of Origin: china
Brand Name: zmsh
Model Number: wafer-0156

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 15-30days
Supply Ability: 1000pcs/months
Contact Now
Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,eli-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,
Type: Single Crystal Size: Dia150mm
Orientation: C(0001)

dia103mm 0.43mm C-axis single side polished sapphire substrates wafer, customized size sapphire substrates, Al2O3 crystal optical window,random orientation sapphire wafer, dia152mm sapphire windows, OME Sapphire plates


Sapphire description

Product Name:    Aluminum oxide (Al2O3) crystal substrate Sapphire crystal wafer


Product       Description:

Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal          properties, excellent electrical characteristics and dielectric properties, and anti-                     chemicalcorrosion, it is high temperature, thermal conductivity, high hardness, infrared          transparent, chemically stable good. Widely used in high-temperature infrared window             materials and III-V nitride epitaxial film substrate and a variety of materials to meet the             growing blue, purple, white light-emitting diode (LED) and blue laser (LD) needs, Branch          Crystal company specializing in the production of high quality polished sapphire crystal and   epitaxial substrates will provide you with a lot of high quality and low price monocrystalline      substrate.
Technical parameters:

Crystal structure         Hexagonal a = 4.758 Å c = 12.992 Å
Crystal orientation

(11-20) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å

(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å
Crystal purity             > 99.99%
Mp                             2040 o C
Density                      3.98 g / cm 3
Hardness                   9 (mohs)
Thermal expansion     7.5 (x10 -6 / o C)
Heat capacity            0.10 (cal / o C)
Thermal conductivity   46.06 @ 0 o C 25.12 @ 100 o C, 12.56 @ 400 o C (W / (mK))
Permittivity                   ~ 9.4 @ 300K at A axis ~ 11.58 @ 300K at C axis
Loss tangent               <2x10 -5 at A axis, <5 x10 -5 at C axis
Specifications:

C, A, M, R Tolerance: + / -0.2 degrees
dia1"~dia dia10" x 250mm
Single throw or double throw, Ra <5A
Note: according to customers' requirements and size of the corresponding direction.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging
Sapphire wafer and substrate applications include:
- Microelectronic IC applications - SOS Silicon-on-Sapphire
- Growth of superconducting compounds / Gallium Nitride - Infrared detectors
- Hybrid microelectronics - Polishing carriers
Hostile environment
Optical transmission from ultraviolet to near infrared
High temperature   Radiation resistance
Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size

Dia 103mm C - Axis Sapphire Optical Windows Single Side Polished Customized Size

6inch size specification in details
Material: Single crystal Al2O3 99.999%

Diameter:103.00±0.1mm or 100±0.1mm

Thickness :430±15um (or 1000um,1500um,1300um)

Orientation: C-plane(0001) Off  M -axis 0.2°±0.1°
Surface Roughness:Ra<0.3nm
TTV:<30um
BOW:-30~0um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment

Cleanliness :Free visible contamination

------------------------------------------------------------------------------------------------------------------------------

We can supply professional customized service in time and provide cooperation and support of
new product development and technology appliance.


Item 4″(or customized size aslike dia103mm)
Crystal LED Grade Sapphire
Sapphire Purity ≥99.9996%
Color Transparent
Orientation C plane tiled M axis 0.20°±0.1°
Diameter 100±0.1mm (103±0.1mm)
Thickness 650±25um( 430±15um)
Primary Flat location A-axis±0.2°  (each plane is ok)
Flat length 30.0±1mm   (32±1mm)
Front Side Surface Mirror polished , EPI Ready
Surface Roughness Ra<3A  (0.3nm)
Back Side Roughness Fine ground, Ra=1.0±0.2um
TTV ≤10um
LTV ≤2.5um(8mm*8mm)
BOW ≤- 20um
Warp ≤20um


Sapphire produce flow
