5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

I'm Online Chat Now

5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

China 5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material supplier
5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material supplier 5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material supplier 5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material supplier

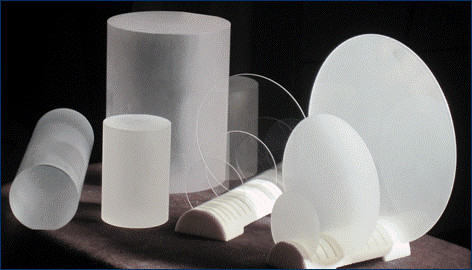

Large Image :  5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

Product Details:

Place of Origin: china
Brand Name: zmsh
Model Number: wafer-5inch R

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 15-30days
Supply Ability: 100pcs/months
Contact Now
Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,eli-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,
Type: Single Crystal

5inch R-plane sapphire wafer,dia125mm sapphire substrates ,6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens




5inch Specifications



Material: Single crystal Al2O3 99.999%
Diameter:125.00±0.1mm
Thickness :1000±25um
Primary flat:42.5±2.5mm
OF Orientation flat: C±0.1°C-plane(0001)
Orientation: R±0.1°Or A-plane,M-plane
Frontside Surface Roughness:Ra<0.3nm
Backside Surface Roughness: 0.8~1.2um
Or double side polished
TTV:<20um
BOW:-25~0um
WARP:<30um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment
Cleanliness :Free visible contamination



Produce step for saphire wafers



Sapphire crystal body--->get rough ingot in customized axis--->cut tail& top off---->

repair diameter shape----> Grind OF surface--->( anneal -->)wire cut--->chamfer-->anneal--->lapped---polished---infection



Synthetic sapphire—sometimes referred to as sapphire glass—is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant.

The key benefits of sapphire windows are:

Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
Significantly stronger than other optical materials or standard glass windows
Highly resistant to scratching and abrasion
Extremely high melting temperature (2030 °C)

-------------------------------------------------------------------------------------------------------------------------------------------

We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.






5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

Some other materials semi substrates also can be provided as like sic, GaN,LaAlO3,LiTaO3 etc.

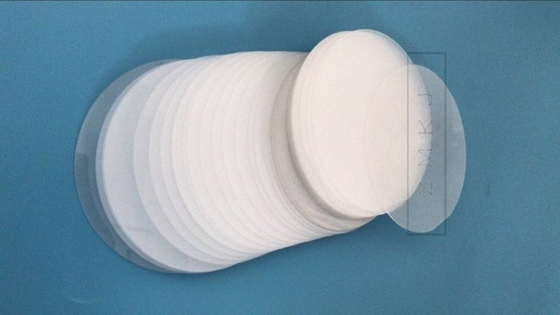

5inch product pictures

5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

picture is 5inch as-cut wafer



FAQ:





Q: What's your MOQ?

A: (1) For inventory, the MOQ is 10pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: How to pay?

A:50%deposit, left before delivery T/T,



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.



Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.
