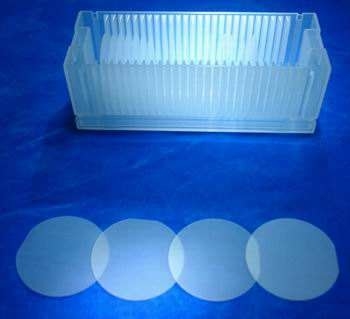

Large Image :  Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type

Product Details:

Place of Origin: china
Brand Name: zmsh
Model Number: m-plane 2inch

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 10-20days
Supply Ability: 1000pcs/months
Contact Now
Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,epi-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,
Type: Single Crystal M-plane

M-axis sapphire wafer for epi-ready test,sapphire optical chips, 2-6inch M-plane,A-axis sapphire epi-ready,2inch sapphire substrates for led




Custom LED Substrate Material Optical Sapphire Window and Sapphire Glass

with crystal orientation A,C,M,R-plane.

  Sapphire glass are ideal for applications where high pressure, vacuum, or corrosive atmospheres are
a consideration.Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to
its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant
 to UV radiation darkening.

  Customizing is available.By using sapphire cutting and machining facilities, sapphire wafers in different orientations, thicknesses and machining accuracies are available. At present, the products mainly are 2″,4″and 6″ sapphire wafer.



2inch M-axis specifications sapphire wafer

  1. Material: Single crystal Al2O3 99.999%
  2. Orientation: M-axis 0.2Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type
  3. Diameter:50.8.±0.2mm
  4. Thickness :430±15um or 330±15um
  5. Primary flat:16±1mm
  6. OF Orientation flat: OFF C axis±0.1°C-plane(0001)
  7. Frontside Surface Roughness:Ra<0.2nm
  8. Backside Surface Roughness: 0.8~1.2um
  9. ( Or double side polished,  both side Ra<0.2nm)
  10. TTV:<10um
  11. BOW:-10~0um
  12. WARP:<10um
  13. Laser Mark Series No. by needs
  14. Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
  15. Cleanliness :Free visible contamination
  16. If needing, 3-6inch M-axis and other orirentations wafers also can be provided.

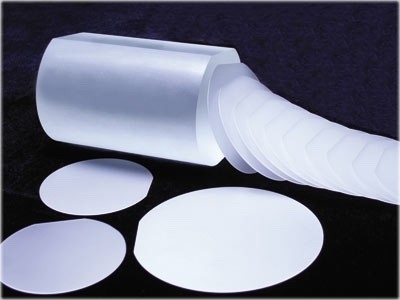

Sapphire  Sample for Application



Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type

Other semiconductor materials substtares can be provided.aslike sic,GaN,GaAs, LiTaO3,MgO,AlN.



FAQ:



Q: Do you have standard products?

A: Our standard products in stock. as like 2inch 0.43mm 1sp or 2sp thickness each orientation in stock.

other size please contect with us at your time.



Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex,  EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them and

Freight is in accordance with the actual settlement by FOB.



Q: How to pay?

A:  T/T in advance.



Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 25pcs for wafers because in 25pcs casttle box.

(2) For customized products, the MOQ is 25pcs up.





Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type



>> Packaging – Logistcs
we concerns each details of the package , cleaning, anti-static , shock treatment . According to the quantity and shape of the product , we will take a different packaging process!

Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type
