Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape

I'm Online Chat Now

Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape

China Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape supplier
Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape supplier Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape supplier Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape supplier

Large Image :  Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape

Product Details:

Place of Origin: china
Brand Name: zms
Model Number: watch-34.5

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: by case
Packaging Details: carton case
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Vision Light Transmissivity: 85% Industry: Electronic Product Protect Glass Cover,led,optical Glass,epi-ready Wafer
Materials: 99.999% Al2O3 Color: Colorless Transparent
Advantagement: Hardness 9.0,wear Resistance, Applications User: Iphone Camera Glass,phone,front Cover Glass,

raw sapphire lens for watch screem glass,optical grade square or roud shaped sapphire watch glass raw plates



1. Why sapphire

Sapphire is a single crystal - Aluminum Oxide (Al2O3) - which is colorless and optically clear. Synthetic sapphire is grown in boules (bulk pieces) no larger than 300mm in diameter. It can also be grown into shapes such as sheets, ribbons, domes and tubes with very smooth surface qualities, high purity and optical translucence. When used "as grown" there is very little need for grinding and polishing.



 Comparison of optical window materials

Material Properties Applications
Sapphire  Transmission Range: 180-4500nm
Refractive Index: 1.755@1000nm
Strong Hardness
Best choice for scratch resistance applications Thinner optics Wide Transmission Range
Fused Silica Transmission Range: 185-2500nm
Refractive Index: 1.4858@308nm
Low Thermal Expansion Coefficient: 0.54 x 10-6K
UV to IR spectrum
Best choice for thermal resistance
application.
other

Comparison Advantagement

  • Mechanically second only to diamond. One of the hardest and most scratch resistant materials
  • available. The high modulus of elasticity and high tensile strength make it extremely wear,
  • abrasion and impact resistant.
  • Colorless optical characteristics are superior to any standard glass, with up to a 98.5%
  • transmission and a transmission window from 190 nanometers in the UV to 5 microns in the IR.
  • No solarization in high-radiation systems.
  • High dielectric constant and low loss tangent makes it a great electrical insulator and low
  • loss long wavelength window.
  • Thermally very stable. Does not lose any of its mechanical and optical qualities from cryogenic
  • to over 2000C.
  • Thermal conductivity greater than other optical materials and most dielectrics.
  • No surface damage and devitrification due to extreme thermal cycling
  • Does not sag or slump at very elevated temperatures.
  • Highly corrosion resistant. More resistant to corrosive chemicals than most standard hard
  • materials available.

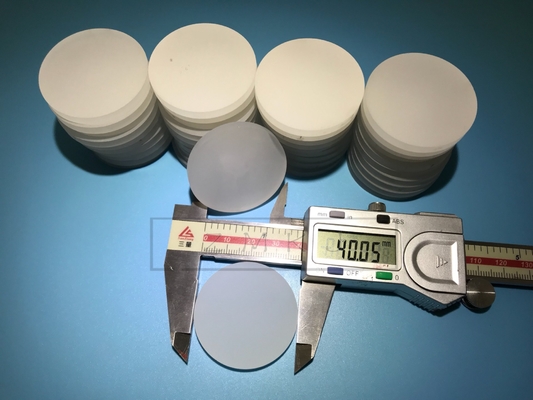

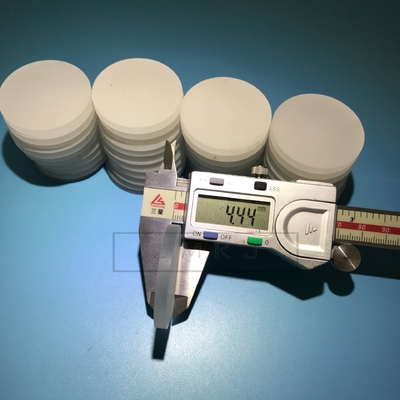

The size for picture sapphire glass sample

size:39.5x4.45mmt  34.5x5.0mmt

thickness:4.45mm as-cut grade no polished

surface: double side  Lapped

Ra:<0.3nm

SD:40/20 ,60/40,20/10 by polished

TTV:<15um

Bow:<20um



sample

Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape

Durable Optical Grade Sapphire Watch Glass Raw Plates Square And Round Shape

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,

If not,we could help you ship them and Freight is iaccordance with the actual settlement.



Q: How to pay?

A:100% T/T, Paypal, Secure payment and Assurance payment.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 50pcs. if 100pcs it's better.

(2) For customized products, the MOQ is 50pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.



Q: Do you have standard products?

A: Our standard products in stock. as like substrates  2inch 0.43mm 1sp or 2sp thickness each orientation in stock.



Thanks~~~
