Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness

I'm Online Chat Now

Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness

China Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness supplier
Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness supplier Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness supplier

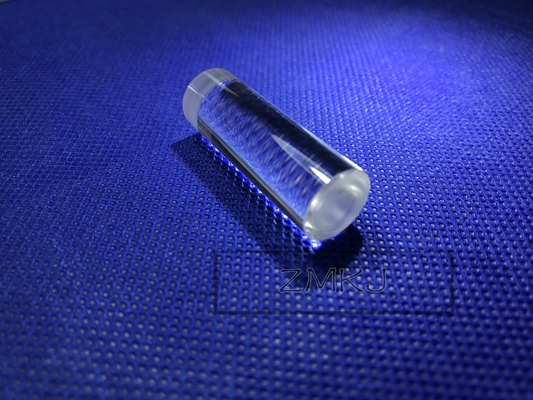

Large Image :  Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: rod-dia20mm

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: 100usd/pcs by FOB
Packaging Details: PET Films
Delivery Time: 20DAYS
Contact Now
Detailed Product Description
Materials: 99.999% Al2O3 Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement: High Hardness9.0,wear Resistance, VisVisible Light TransmittanceVisible Light Transmittance: 85%
Color: Red And White Type: Single Crystal

sapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



What is sapphire ?

1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance

Sapphire rods are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis.  Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.



Rod Lens is designed for use in a variety of laser and imaging applications.

The addition of this product line is part of a continued effort to support current trends toward miniaturization.



Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness



General specifications
Diameter 0.2-300mm
Thickness 0.1-200mm
Dimension tolerance +/-0.1mm or +/-0.01mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Clear aperture >85%, >90%
Surface accuracy L/4, L/2 L
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm x 45 degree
Coating AR, BBAR or Custom

Comparison of optical window materials

Materials characteristics
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120


3.0 sample

Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm ThicknessCustomized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness



4.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Customized Shape Synthetic Sapphire Rod Optical Stick 0.1 - 200mm Thickness



6.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.

Q: How to pay?
T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance

on Alibaba and etc..

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics
