Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity

China Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity supplier
Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity supplier Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity supplier Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity supplier

Large Image :  Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: rod-003

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: 100usd/pcs by FOB
Packaging Details: PET Films
Delivery Time: 20DAYS
Contact Now
Detailed Product Description
Materials: 99.999% Al2O3 Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement: High Hardness9.0,wear Resistance, VisVisible Light TransmittanceVisible Light Transmittance: 85%
Color: Red And White Type: Single Crystal

sapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods


Sapphire physical property

4inch C-axis sapphire wafer for led epi-ready,optical  glass lens for  covering by sapphire,sapphire optical windowsSapphire glass is manufactured from single crystal sapphire(Al2O3 ), making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.



Why choose sapphire glass ?
1- Thinner and Stronger than Standard Glass Windows


2- Transmits Wavelengths Ranging From UV to Mid-Infrared


3- Features Extreme Surface Hardness and Chemical Resistance


---------------------------------------------------------------------------------------------------------------------------

2. Comparison of optical window materials
Material                                                 Properties                                      Applications
  BK7
Transmission Range: 330-2100nm
Refractive Index: 1.5164@588nm  Most popular and low cost  Visible and near IR spectrum applications
Fused Silica
Transmission Range: 185-2500nm          Low Thermal Expansion      UV to IR spectrum
Refractive Index: 1.4858@308nm      Coefficient: 0.54 x 10-6K       Best choice for thermal  resistance


Sapphire
Transmission Range: 180-4500nm       Strong Hardness   Best choice for scratch resistance applications
Refractive Index: 1.755@1000nm                                        Thinner optics Wide Transmission Range

Calcium Fluoride
Transmission Range: 170-7800nm        Little Hygroscopic Susceptibility     IR laser applications
Coefficient: 18.85 x 10-6K                           High Thermal Expansion

Refractive Index: 1.399@5000nm

MgF2
Transmission Range: 120-7000nm                                                              UV laser applications

Refractive Index: 1.376@700nm
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120

3. commen size for sapphire optical parts
Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree

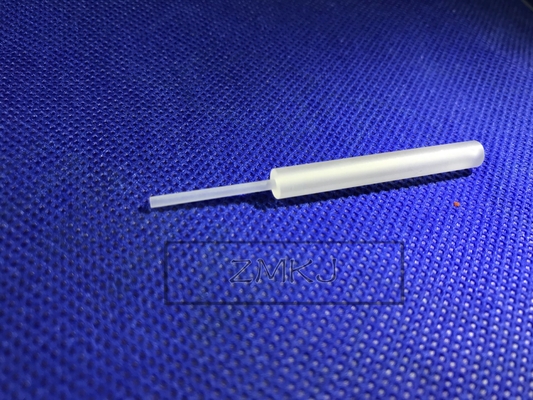

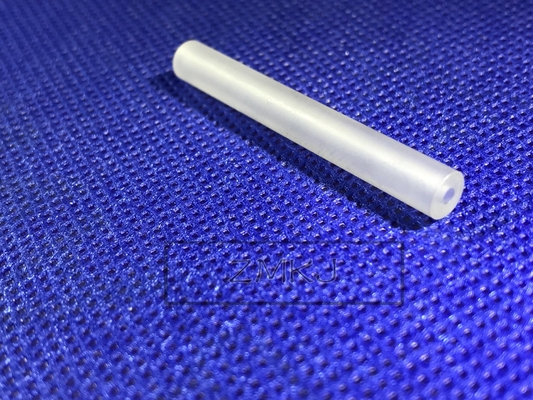

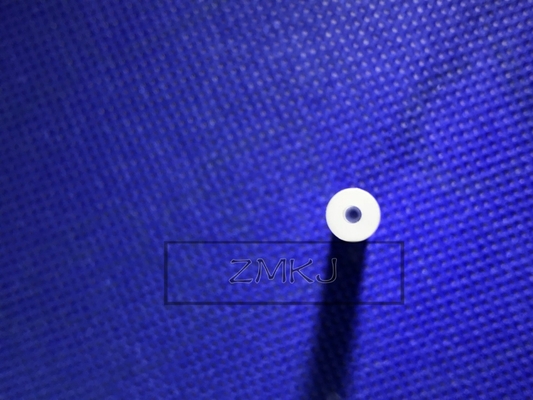

4.0 sample small tube in details

Chemical Resistance Synthetic Sapphire Rod With High Thermal ConductivityChemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity

Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity

5. We can supply professional customized service in time and provide cooperation

and support of new product development and technology appliance.

Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity
6.packing &delivery

Chemical Resistance Synthetic Sapphire Rod With High Thermal Conductivity



Packaging products → PET films or electro-static vinyl paper in cleaning room
Inner packing → Foam plastics anti-vibration cushion liner for package
Outer packing → five layers corrugated carton paper box or as required
Shipping by air → UPS , DHL , Fedex , TNT, EMS ,SF ,etc
