Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film

I'm Online Chat Now

Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film

China Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film supplier
Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film supplier Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film supplier Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film supplier

Large Image :  Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film

Product Details:

Place of Origin: china
Brand Name: zms
Model Number: phone glass cover

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: by case
Packaging Details: carton case
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Vision Light Transmissivity: 85% Industry: Electronic Product Protect Glass Cover,led,optical Glass,epi-ready Wafer
Materials: 99.999% Al2O3 Color: Colorless Transparent
Advantagement: Hardness 9.0,wear Resistance, Applications User: Iphone Camera Glass,phone,front Cover Glass,

double side polished phone cover protective glass film by Al2O3 crystal on

A-axis orientation



1. Sapphire glass are manufactured from Al2O3 single crystal, ideal material for  applications

(such as laser systems) because of their extreme surface hardness, high thermal conductivity,

high dielectric constant and resistance to common chemical acids and alkalis.

Sapphire is the second hardest crystal next to diamonds and, because of their structural strength,

sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in

a transmission range from 0.2 - 5.5µm.
-----------------------------------------------------------------------------------------------------------------------


Comparison of optical window materials

Material Properties Applications
BK7 Transmission Range: 330-2100nm
Refractive Index: 1.5164@588nm
Most popular and low cost
Visible and near IR spectrum applications
Fused Silica Transmission Range: 185-2500nm
Refractive Index: 1.4858@308nm
Low Thermal Expansion Coefficient: 0.54 x 10-6K
UV to IR spectrum
Best choice for thermal resistance
application.
Sapphire Transmission Range: 180-4500nm
Refractive Index: 1.755@1000nm
Strong Hardness
Best choice for scratch resistance applications Thinner optics Wide Transmission Range
Calcium Fluoride Transmission Range: 170-7800nm
Refractive Index: 1.399@5000nm
Little Hygroscopic Susceptibility
High Thermal Expansion Coefficient: 18.85 x 10-6K
IR laser applications
MgF2 Transmission Range: 120-7000nm
Refractive Index: 1.376@700nm
UV laser applications



Materials characteristics
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120



The advantage of comparison

1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance

Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball

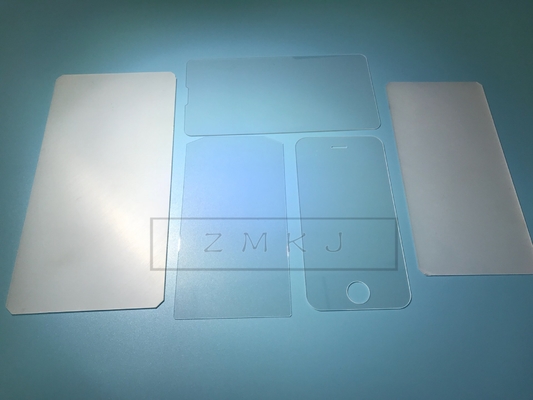

Sapphire glass cover of applications

Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film

common specification of sapphire glass for phone

size:135x63.5mm,  140X70mm,

thickness:260±25um,or 300±25um,

surface: double side poshlied (or as-cut rough plate)

Ra:<0.3nm

SD:40/20 ,60/40,20/10,

TTV:<15um

Bow:<20um

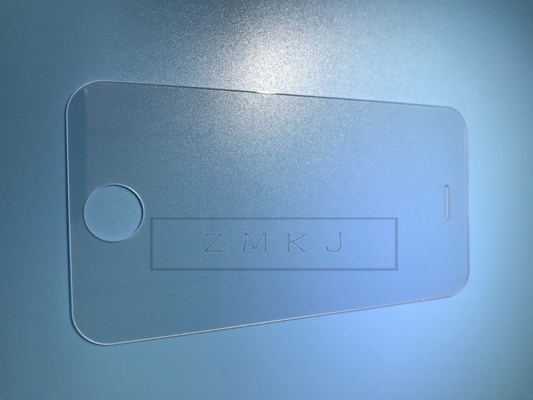

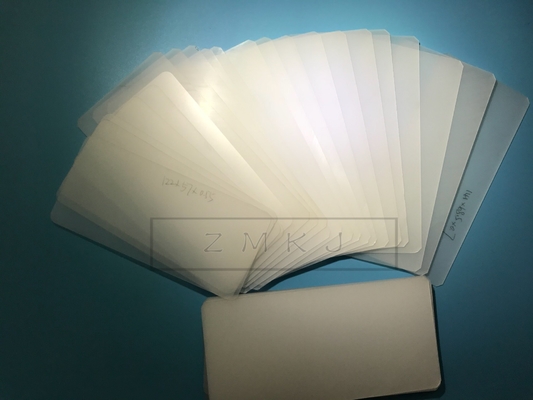

 sample in detail

Al2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass FilmAl2O3 Sapphire Crystal Glass A - Axis Orientation For Phone Cover Protective Glass Film

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them

and Freight is iaccordance with the actual settlement or by FOB.



Q: How to pay?

A: T/T by 50% deposit,rest before delivery.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 50pcs. if 100pcs it's better.

(2) For customized products, the MOQ is 50pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.



Q: Do you have standard products?

A: Our standard products in stock. as like substrates  2inch 0.43mm 1sp or 2sp thickness

each orientation in stock.
