Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor

China Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor supplier
Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor supplier Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor supplier Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor supplier

Large Image :  Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: sapphire blade -001

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: by case by FOB
Packaging Details: PET Films
Delivery Time: 20DAYS
Contact Now
Detailed Product Description
Materials: 99.999% Al2O3 Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement: High Hardness9.0,wear Resistance, VisVisible Light TransmittanceVisible Light Transmittance: 85%
Color: Red And White Type: Single Crystal

sapphire glass blade for razor,Al2O3 single crystal glass wafer,artificial sapphire injector ,sapphre lenssapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens



The Outstanding Advantage For Sapphire

1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance


sapphire physical property

Product Name: Aluminum oxide (Al2O3) crystal substrate Sapphire crystal  glass
Product Description: Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal properties, excellent electrical characteristics and dielectric properties, and anti-chemicalcorrosion, it is high temperature, thermal conductivity, high hardness, infrared transparent, chemically stable good. Widely used in high-temperature infrared window materials and III-V nitride epitaxial film substrate and a variety of materials to meet the growing blue, purple, white light-emitting diode (LED) and blue laser (LD) needs, Branch Crystal company specializing in the production of high quality polished sapphire crystal and epitaxial substrates will provide you with a lot of high quality and low price monocrystalline substrate.
Technical parameters:

Crystal structure Hexagonal a = 4.758 Å c = 12.992 Å
Crystal orientation

(11-20) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å

(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å
Crystal purity > 99.99%
Mp 2040 o C
Density 3.98 g / cm 3
Hardness 9 (mohs)
Thermal expansion 7.5 (x10 -6 / o C)
Heat capacity 0.10 (cal / o C)
Thermal conductivity 46.06 @ 0 o C 25.12 @ 100 o C, 12.56 @ 400 o C (W / (mK))
Permittivity ~ 9.4 @ 300K at A axis ~ 11.58 @ 300K at C axis
Loss tangent <2x10 -5 at A axis, <5 x10 -5 at C axis


---------------------------------------------------------------------------------------------------------------------------------

Applications of sapphire product in Medical
· Sapphire is used in surgical systems for laser transmission and in contact with bodily fluids.
· Surgical tips - sapphire is used in contact tips for various surgical laser applications
· Endoscope lenses - sapphire is often used in endoscope lenses due to its durability in contact with tissues and in sterilisation environments such as autoclaving
· Sapphire knives - with a sapphire knife, thinner sections are possible. The near perfect cutting edge of this knife / blade gives distortion-free sections down to 10 microns thick.

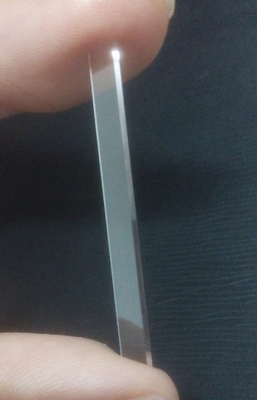

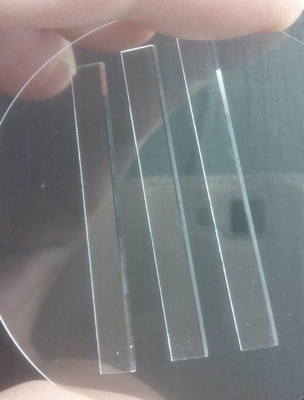

3.0 sample in detail



Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For RazorWear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor



Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor



4. We can supply professional customized sapphire optical service in time and provide cooperation and support of new product development and technology appliance.

Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor

5. Features:

1. OEM Size and Design. Any shape is ok.

2. CE&Rohs Material. Europe, Japan,China, depend on your requirements.

3. Printting logo is ok. Camera Lens

4. Fast delivery date.

Advantages:

+ Sonicleaning,silk-screen printing and electroplating in cleanroon;
+ 100% QC inspection before packing;
+ Without defects on our products,high purity;
+ Vacuum packing;
+ With good leading time;



5.0  FAQ –

Q: What's the MOQ?
(1) For inventory, the MOQ is 10pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.

Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc by FOB.

Q: What's the delivery time?
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.



Package &Delivery
Wear Resistance Sapphire Parts Aluminum Oxide Crystal Substrate Glass Blade For Razor
