Product Details:

Place of Origin: china
Brand Name: zmsh
Model Number: 2inch

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 15-30days
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,eli-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,
Type: Single Crystal Orientation: C,A,R,M

semiconductor sapphire wafer by customized speical orientation 1°2°3°8°off C-axis 2inch dia 50.8mm size for epi-reday test

How About The Advantagement For Sapphire Common Lens Applications ?
  • *Transmits Wavelengths Ranging From UV to Mid-Infrared
  • *Features Extreme Surface Hardness and Chemical Resistance
  • *Thinner and Stronger than Standard Glass Windows

What is Sapphire ?

Sapphire Windows are manufactured from Al2O3 single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. , and is useful in a transmission range from 0.2 - 5.5µm.
-------------------------------------------------------------------------------------------------------------------------------------
As a Sapphire  professional factory We can supply professional customized service  and provide cooperation and support of new product development and technology appliance.

Applications

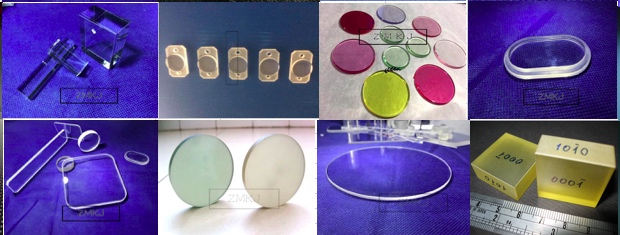

Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation

2inch 1°off C-plane specification
  • Material: Single crystal Al2O3 99.999%
  • Orientation: C-plane(0001) Off M -axis 1°±0.1°,
  • Diameter:50.80±0.2mm
  • Thickness 430±15um or 500±15um or 100±25um
  • Primary flat:16±1mm
  • OF Orientation flat: A axis±0.1°
  • Frontside Surface Roughness:Ra<0.3nm
  • Backside Surface Roughness: 0.8~1.2um
  • ( Or double side polished,  both side Ra<0.3nm)
  • TTV:<15um
  • BOW:-15~0um
  • WARP:<15um
  • Laser Mark Series No. by needs
  • Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
  • Cleanliness :Free visible contamination

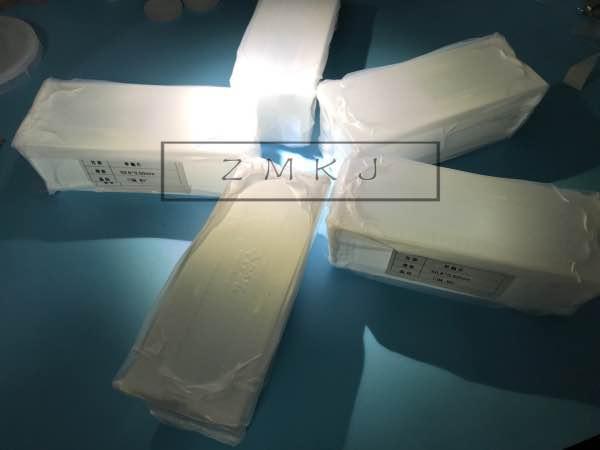

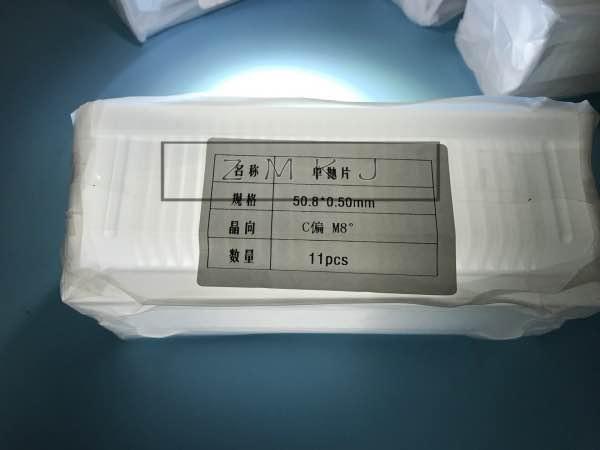

Sample



Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation

Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation
