6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

I'm Online Chat Now

6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

China 6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0 supplier
6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0 supplier 6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0 supplier 6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0 supplier

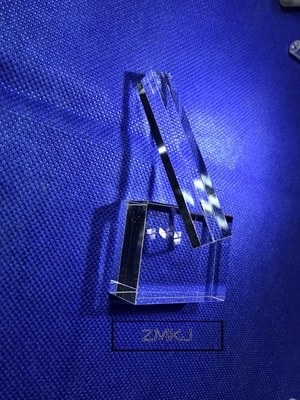

Large Image :  6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: block-001

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET Films
Delivery Time: 10-20DAYS
Contact Now
Detailed Product Description
Materials: 99.999% Al2O3 Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement: High Hardness9.0,wear Resistance, VisVisible Light TransmittanceVisible Light Transmittance: 85%
Color: Red And White Type: Single Crystal

Al2O3 single crystal glass block,6 side sapphire optical block for light guide,Al2O3 single crystal glass lens,optical glass ingots by sapphire Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



 About Sapphire

4inch C-axis sapphire wafer for led epi-ready,optical  glass lens for  covering by sapphire,sapphire optical windows

Single crystal sapphire possesses a unique combination of excellent optical, physicaland chemical properties. The hardest of the oxide crystals, sapphire retains its high strength at high temperatures,

has good thermal properties and excellent transparency. It is chemically resistant to common acids and alkali at temperatures up to 1000 °C as well as to HF below 300 °C . These properties encourage its wide use in hostile environments where optical transmission in the range from the vacuum ultraviolet to the near infrared is required. Sapphire is anisotropic hexagonal crystal. Its properties depend on crystallographic direction (relative to the optical C-axis).



 So what superiority  sapphire  have??

1- Thinner and Stronger than Standard Glass Windows

2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance
6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

Sapphire Windows general specifications

length/width 1x1mm~400X400mml
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)

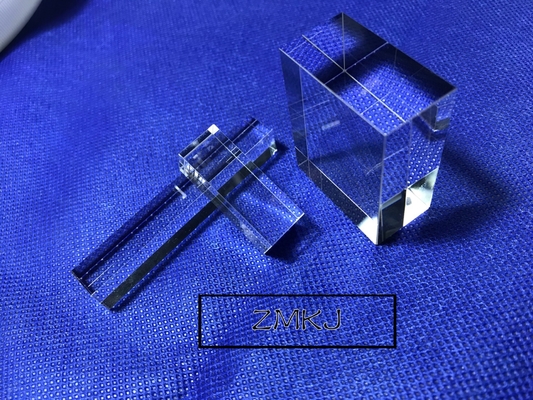

3.0 sample



6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.06 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

Applications of laser diode lens

a. Removing all kinds of hair of all types of skins (cheek hair, lip hair, beard, down rights, back wool,

chest hair, armpit hair, arm hair, bikini hair and leg hair).



b.Cure for pseudo-folliculitis.



c.Treatment of leg veins and the other benign vascular lesions (including angioma and couperose skin).

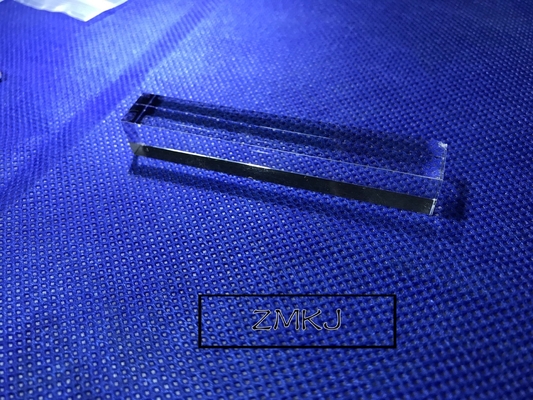

Products show

6 Side Sapphire Parts Al2O3 Single Crystal Optical Block High Hardness 9.0

Company Information



SHANGHAI FAMOUS TRADE CO.,LTD. locates in the city of Shanghai, Which is the best city
of China,and our factory is founded in Wuxi city in 2014.
We specialize in processing a varity of materials into wafers, substrates and custiomized optical
glass parts.components widely used in electronics, optics, optoelectronics and many other fields.
We also have been working closely with many domestic and oversea universities, research
institutionsand companies, provide customized products and services for their R&D projects.
It's our vision to maintaining a good relationship of cooperation with our all customers by our
good reputatiaons.
