Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass

I'm Online Chat Now

Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass

China Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass supplier
Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass supplier Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass supplier

Large Image :  Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass

Product Details:

Place of Origin: china
Brand Name: zms
Model Number: watch34.5

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: by case
Packaging Details: carton case
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Vision Light Transmissivity: 85% Industry: Electronic Product Protect Glass Cover,led,optical Glass,epi-ready Wafer
Materials: 99.999% Al2O3 Color: Colorless Transparent
Advantagement: Hardness 9.0,wear Resistance, Applications User: Iphone Camera Glass,phone,front Cover Glass,

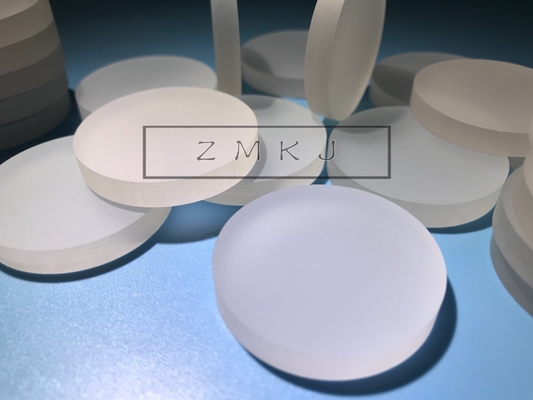

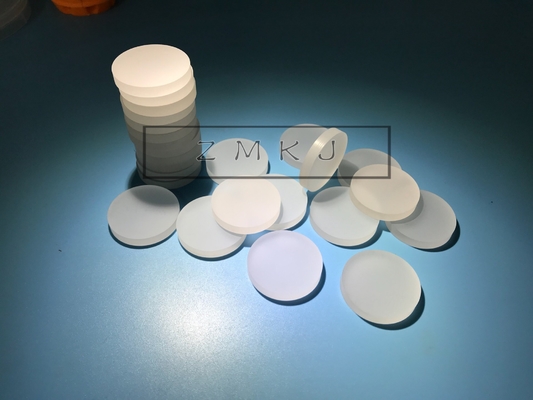

Raw sapphire glass plate for wrist watch,dia34.5mm round shape surface lapped A-axis Al2O3 crystal watch glass

1. Comparison of  Sapphire glass
 sapphire waferis one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire wafercrystal window is intensively applied in high-tech fields.
    sapphire waferoptical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.

MaterialPropertiesApplications
Sapphire Transmission Range: 180-4500nm
Refractive Index: 1.755@1000nm
Strong Hardness
Best choice for scratch resistance applications Thinner optics Wide Transmission Range
Fused SilicaTransmission Range: 185-2500nm
Refractive Index: 1.4858@308nm
Low Thermal Expansion Coefficient: 0.54 x 10-6K
UV to IR spectrum
Best choice for thermal resistance
application.
other


Sapphire glass cover of applications
Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch GlassWrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass
Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass
Specificaitons for sample in details
Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass
materials:sapphire optical grade
orientation:a-plane
size:34.5x5.0mmt t

thickness:5.0mm lapped 2sp
surface: double side lapped
Ra:<2um

TTV:<20um
Bow:<20um









The Sapphire glass process

sapphire crystal (KY)--> customized orientation rough block--> anneal 1600°-->wire saw cut-->
shape rough lapped-->chamfer---> (anneal ) ---> fine groud lapped--> polished -->check test
Wrist Watch Raw Sapphire Plate Dia 34.5mm Surface Lapped Al2O3 Crystal Watch Glass
General specifications
Diameter0.2-300mm
Thickness0.1-100mm
Dimension tolerance+/-0.1mm or +/-0.02mm
Surface quality (scratch & dig)60/40, 40/20 or better
Clear aperture>85%, >90%
Surface accuracyL/4, L/2, L
Parallelism+/-3' ,+/-30''
Bevel0.1~0.3mm x 45 degree
CoatingAR, BBAR or Custom

FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) it is fine If you have your own express account ,
If not,we could help you ship them and Freight is iaccordance with the actual settlement.

Q: How to pay?
A:100% T/T, Paypal, we can Secure payment and Assurance payment.

Q: What's your MOQ?
A: (1) For inventory, the MOQ is 50pcs. if 100pcs it's better.
(2) For customized products, the MOQ is 50pcs up.

Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.

Q: Do you have standard products?
A: Our standard products in stock. as like substrates  2inch 0.43mm 1sp or
2sp thickness each orientation in stock.



Thanks~~~
