Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

I'm Online Chat Now

Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

China Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry supplier
Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry supplier Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry supplier Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry supplier

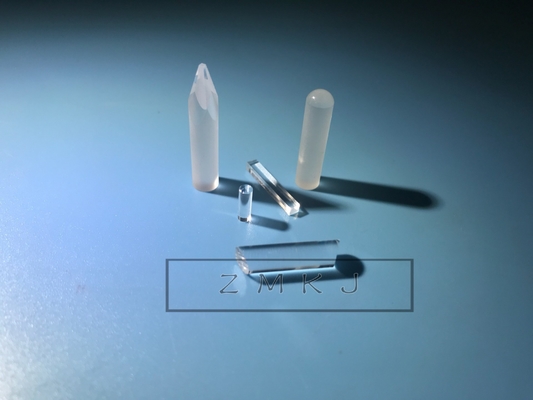

Large Image :  Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: cylinder-020

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET Films
Delivery Time: 20DAYS
Contact Now
Detailed Product Description
Materials: 99.999% Al2O3 Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement: High Hardness9.0,wear Resistance, VisVisible Light TransmittanceVisible Light Transmittance: 85%
Color: Red And White Type: Single Crystal

sapphire optical cylinder , Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



Sapphire is one of the hardest materials, and possesses very good transmission during the range of

visible and near IR spectrum.



It is widely used as optical window in infrared and far infrared military equipments, apparatus and

instruments of satellite and space technology, and navigation and spaceflight, such as night infrared

scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-

tech fields.



 Our sapphire are manufactured from single crystal sapphire by KY method, making them ideal

for demanding applications (such as laser systems) because of their extreme surface hardness, high

thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis.

Sapphire is the second hardest crystal next to diamonds, because of their structural strength,sapphire

windows can be made much thinner than other common dielectric windows with improved

transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a

transmission range from 0.2 - 5.5μm



Typical Sapphire applications:
Sapphire substrates:
· Blue LED's (BLED's) - sapphire is the substrate for the growth of III-V and II-VI compounds such as GaN for LED's,



· for IR Detectors, for the growth of mercury cadmium tellurium (HgCdTe), GaAs wafer carriers, microwave integrated circuits


Aerospace:
· Sapphire is used for its durability and erosion/corrosion resistance, often in combination with the ability to withstand high heat while having a very broad transmission range. Applications include:



· Windows - FLIR (Forward Looking Infra Red) windows for sensors and other optics. Optical clarity over a broad spectral range combines with durability in this application.
· Windows - for erosion resistance in salt and blowing sand environments, sapphire is used in conventional windows and dome shapes in replacement of softer, more fragile IR transmitting materials.



· Countermeasures lamps - sapphire flash lamps are used in IRCM's (Infra red countermeasures). The high temperature performance of sapphire is combined with broad spectral range in this application.
Analytical applications:
· Sapphire is used in analytical applications where combinations of high temperature, pressure, and hydrofluoric acid species are encountered. These applications need the survivability of sapphire, while often needing other properties such as favourable UV (ultraviolet) or IR (infrared) transmission.
·

NMR (Nuclear Magnetic Resonance) tubes; Sapphire is used for very high-pressure applications in replacement of glass or quartz tubes.
·

Sample preparation - sapphire is used in digestion cells as sheaths and liners. When hydrofluoric acid is used, sapphire replaces quartz components
·

Analytical chemistry - for mass spectroscopy, ICAP, and other systems, sapphire replaces quartware to improve durability and reduce contamination while offering good UV transmission.
Medical applications:
· Sapphire is used in surgical systems for laser transmission and in contact with bodily fluids.
·

Surgical tips - sapphire is used in contact tips for various surgical laser applications
·

Endoscope lenses - sapphire is often used in endoscope lenses due to its durability in contact with tissues and in sterilisation environments such as autoclaving


· Sapphire knives - with a sapphire knife, thinner sections are possible. The near perfect cutting edge of this knife / blade gives distortion-free sections down to 10 microns thick.
Optical applications:
· Sapphire is used for short and long wavelength applications (UV and IR) beyond the range where conventional optics performs adequately. High temperatures and hostile environments also necessitate the use of sapphire optics.



· Illumination windows - for very high brightness illumination, sapphire windows survive the very high heat while providing the broadest spectral transmission.


· Sapphire lightguides - sapphire rods; used in high temperature thermometry beyond the range of quartz optics.


· Optical components: lenses, prisms and other laser and infrared optics are fabricated from high optical quality sapphire.


Watch industry: Sapphire is widely used for watch glasses. The world demand in watch industry centres on scratchproof sapphire watch crystals. However, besides traditional flat shapes, crystals with spherical and cylindrical curves are also in great demand.

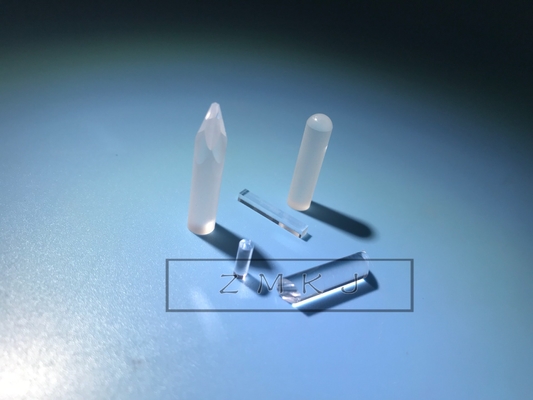

Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

Typical specifications:

Available orientations: C-axis [0001], R-axis [1-102], A-axis [11-20], M-axis [10-10], Random
Sapphire windows / blanks
Diameter / Width: 25.0 - 300.0 mm
Tolerance: Standard ± 2°, Special to ± 0.1°
Thickness: Minimum 0.15, maximum 120.0 mm
Surface finish: As cut, fine ground, lapped, polished s/d 80/50, 60/40, 40/20, 20/10, 10/5, according to the MIL-0-13830A
Ends / Edge quality: Fine ground, 60/40
"As-grown" sapphire ingot dia1-dia300mm
Dimensions Up to 50 mm inner diameter, 0,5 - 4,0 mm wall thickness, 300-600 mm tubes length
Orientation C-axis in the length of the tube
Polished sapphire tubes: Up to 50 mm inside diameter, 0,5 - 3,0 mm wall thickness, 80-350 mm tubes length
Ingots: Diameter/Width 5-300 mm, Thickness/Length 1 – 200 mm
Surface quality As-cut, Ends/Edge Quality Diamond cut




3.0 sample

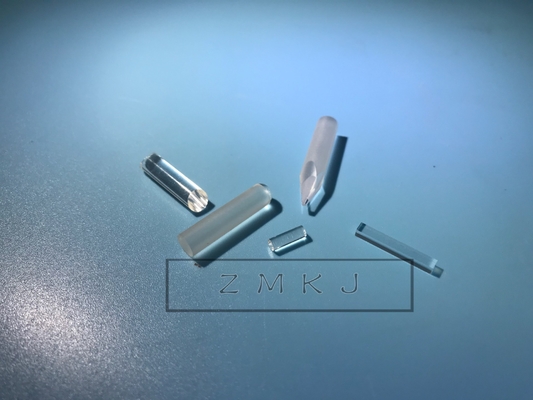

Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry



Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

4.We can supply professional customized service in time and provide cooperation and

support of new product development and technology appliance.

Anti - Corrosion Sapphire Parts , Synthetic Sapphire Rod For High Temperature Thermometry

5.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc by FOB

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.

Q: How to pay?
100%T/Tbefore delivery, Paypal, West Union, MoneyGram.

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.
It depends on quantity and technics
