GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density

I'm Online Chat Now

GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density

China GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density supplier
GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density supplier GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density supplier GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density supplier

Large Image :  GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: round plate

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: by case
Packaging Details: castle case in 100 grade cleaning room
Delivery Time: 2-4weeks/after order
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description

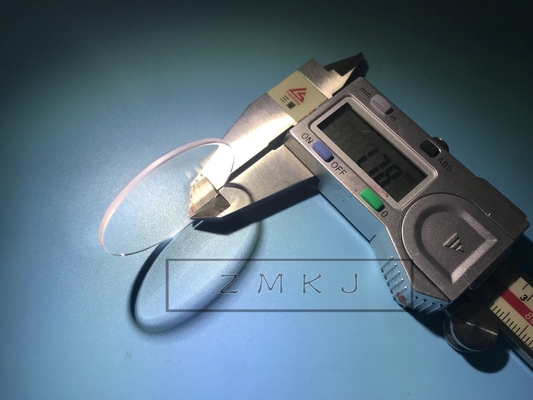

Material: Fused Quartz Szie: Dia30x1.8mm
Shape: Square, Round Melt Point: 1750-1850℃
Application: Optical,semiconductor Wafer,electronic Light, Soften Temperature: 1650°
Density: 2.2g/cm3

2“4”6"quartz optical wafer, GE fused quartz substrates for SEMI,quartz optical glass plate for window, quartz optical glass window,   GE fused quartz optical glass lens, quartz optical window,2“4”6"quartz optical wafer, Fused quartzsubstrate wafer

1. Product Description
1. high temperature resistant, Quartz Slab Or Optical Quartz Glass Plate Or Quartz Substrate,
Fused Quartz Glass can work under 1200°C continuously,and in short time can even work under 1450°C,
its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.
2. Corrosion resistant, Except hydrofluoric acid, Quartz Plate Of Optical Grade do not react with
any acid and base except hydrofluoric acid.the stability is
30 tims of the ceramic,and 150 times of stainless steel .
3. Excellent thermal shock stability
4. High transmission to 85%
5. Electric insulation ,it is 10000 times of usual glass

2. Product Parameters
Property
Typical Values
Property
Typical Values
Density
2.2x103 kg/m3
Electrical Resistivity
7x107 ohm cm (350°C)
Hardness
5.5 - 6.5 Mohs' Scale 570
Index of Refraction
1.4585
Design Tensile Strength
4.8x107 Pa (N/m2)
Strength
5x107 V/m
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
transmittance rate
85%
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Sonic Attenuation
Less than 11 db/m MHz
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10

3. Product Size Description:
1. Translucence Quartz Glass thickness 0.5-30mm, Length: 25-200mm, .Width: 25-200mm
2. Thickness Tolerance: +/-0.2mm
3. Raw Material: Quartz , SiO2: >=99.99%
4. Color : Clear , Translucence.
5. Surface quality :40/20 60/40 80/50
6. Transmittance >90%
7. Sharpe: Square ,round, Can make the size and sharp according to customer's require.

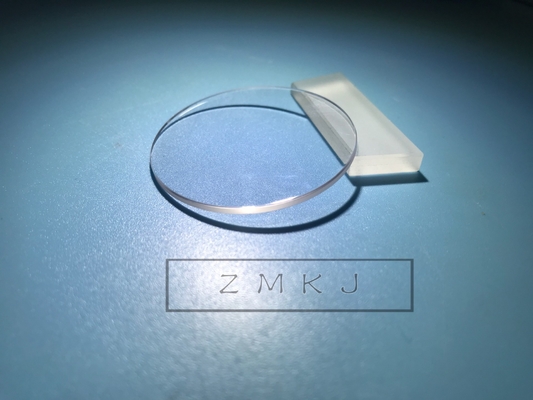

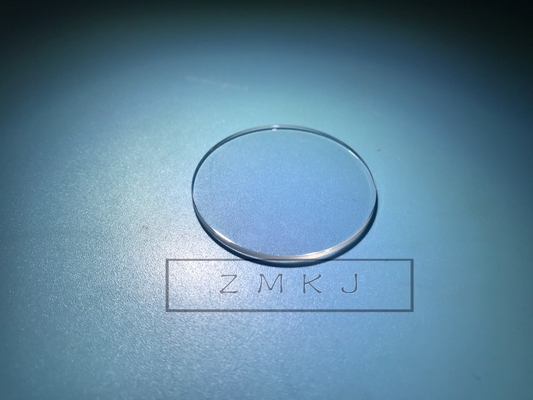

GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ DensityGS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density
4. Process  Step For Optical Lens
GS1 Grade Synthetic Fused Quartz Plate , Quartz Optical Window 2.2g/cm³ Density
5. FAQ
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc by FOB.
Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
Q: How to pay?
100%T/T before delivery, Paypal, West Union, MoneyGram.
Q: What's the MOQ?
(1) For inventory, the MOQ is 25pcs for 2-6inch wafer.
(2) For customized products, the MOQ is 50pcs.
It depends on quantity and technics
6. About Our Factory.

Shanghai famous trade co.,ltd. is established in 2013, and our factory is established in 2014 Wuxi city.
Our team is a professional manufacturer and exporter that is concerned with the semiconductor substrates providing ,optical wafer producting .We are located in shanghai with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have over 30 employees,Our well-equipped facilities and excellent quality control throughout all stagesof production enables us to guarantee total customer satisfaction.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
