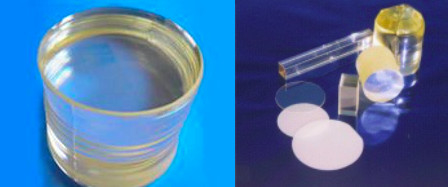

Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical

I'm Online Chat Now

Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical

China Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical supplier
Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical supplier Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical supplier Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical supplier

Large Image :  Three Color Lithium Tantalate Wafers , Litao3 Wafer For Saw And Optical

Product Details:

Place of Origin: CHINA
Brand Name: zmkj
Model Number: LN-wafer

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: by case
Packaging Details: PET Films or 25pcs casstle case by 100 grade cleaning room
Delivery Time: 15-30days
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Materials: LiNbO3 Single Crystal Industry: Semiconductor Wafer,saw Wafer,optical Wafer
Application: 5G,SAW Device,optical Glass, Color: Yellow, Red,black
Customized: Ok Size: 2-6inch
Thickness: 250um Up

4inch diameter 100mm Lithium niobate LiNbO3 substrate wafer, LN wafer for saw and optical,SAW Grade LiNbO3 Crystal ingot​



Description:

Lithium niobate (LiNbO3) is a ferroelectric material suitable for a variety of applications. Its versatility

is made possible by the excellent electro-optic, nonlinear, and piezoelectric properties of the intrinsic

material. It is one of the most thoroughly characterized electro-optic materials, and crystal growing techniques consistently produce large crystals of high perfection.



Applications:

  • Frequency doubling for wavelengths >1μm and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices;

  • Pockel cells, Q-switches, and phase modulators;

  • Waveguide substrates, surface acoustic wave (SAW) wafers.

Physical and Optical Properties:

Crystal Structure Trigonal, space group R3c
Cell Parameters a=0.515,c=13.863,Z=6
Melting Point 1255 +/-5℃
Curie Point 1140 +/-5℃
Mohs Hardness 5
Density 4.64 g/cm 3
Absorption Coefficient ~ 0.1%/cm @ 1064 nm
Solubility insoluble in H2O
Relative Dielectric Constant εT11/ε0: 85
εT33/ε0:29.5
Thermal Expansion ||a, 2.0 x 10 -6/K @ 25℃
Coefficients at 25℃ ||c, 2.2 x 10 -6/K @ 25℃
Thermal Conductivity 38 W /m /K @ 25℃
Transparency Range 420 - 5200 nm
Refractive Indices n e = 2.146, n o = 2.220 @ 1300 nm
n e = 2.156, n o = 2.322 @ 1064 nm
n e = 2.203, n o = 2.286 @ 633 m
Optical Homogeneity ~ 5 x 10 -5 /cm
Sellmeier Equations ( l in mm) n o 2 (l ) = 4.9048+0.11768/(l2- 0.04750) - 0.027169l2
n e 2 ( l) = 4.5820+0.099169/( l2 - 0.04443) - 0.021950 l2



Orientation

36°Y-cut±0.2° 41°Y-cut±0.2° X-cut±0.2°
Diameter  100±0.3mm
1st OF Flat 32±2mm, perpendicular to X-axis±0.2° 32±2mm,perpendicular to 112°Y±0.2°
2st OF Flat 10±2mm CW270°from 1st OF 10±2mm CW315°from 1st OF 10±2mm CW315° Or 270°from 1st OF
Thickness 200~250±25um,300-350±25um,500±25um
Front surface "+",Ra<1nm,
Back surface GC#1000, GC#2000 Lapped
LTV <1um,at5x5mm zone
BOW ≤25um



optical  Crystal LiNbO3 crystals

Specification Conventional High Precision
Materials LiNbO3(LN) LiNbO3(LN)
Orientation X-112°Y,36°Y,42°Y±0.5° X-112°Y,36°Y,42°Y±0.5°
Parallel 30″ 10''
Perpendicular 10′ 5'
surface Quality 40/20 20/10
Wavefront Distortion

λ/4@632nm



λ/8@632nm



Surface Flatness

λ/4@632nm



λ/8@632nm



Clear Aperture >90% >90%
Chamfer <0.2×45° <0.2×45°
Thickness/Diameter Tolerance ±0.1 mm ±0.1 mm
Maximum dimensions dia150×50mm dia150×50mm
