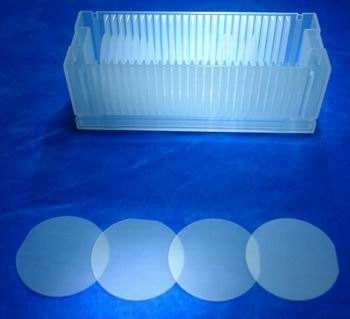

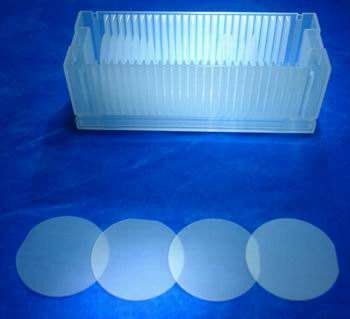

Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens
  • Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens
  • Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens
  • Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens

Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens

Place of Origin china
Brand Name zmsh
Model Number 4inch
Product Details
Material:
99.999% Al2O3
Industry:
Led,optical Glass,eli-ready Wafer
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
Color:
White Or Red Or Blue
Vision Light Transmissivity:
85%
Advantagement:
High Hardness9.0,wear Resistance,
Type:
Single Crystal
Orientation:
C-axis (0001)
Size:
Diameter 100mm
High Light:

sapphire substrate

,

custom sapphire glass

Product Description

4inch C-axis sapphire wafer for epi-ready, Al2O3 single crystal wafer ,sapphire thick glass lens for covering,sapphire optical windows, A plane,
R plane, C plane, M plane and other random plane for sapphire crystal

Custom sizes and shapes Optical sapphire glass wave plate/sapphire glass led wafer plate
OEM Size and Design,any shape is ok; We can provide engineer drawing;
High quality,logo is ok; Fast delivery date;

Feature of Synthetic Optical Sapphire Wafer
High Crystal Purity:> 99.995%;
Crystal orientation: Provide A plane, R plane, C plane, M plane and other random plane for sapphire crystal product.
Directional accuracy: ±0.05°We can always provide high quality service, we will respond for the customer's requirements in a short time.
sapphire crystal

Sapphire is one of the hardest materials, and possesses very good transmission during the range of
visible and near IR spectrum.
It is widely used as optical window in infrared and far infrared military equipments, apparatus and

instruments of satellite and space technology, and navigation and spaceflight, such as night infrared
scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-
tech fields.




Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 0

8inch C-plane specification
Material: Single crystal Al2O3 99.999%
Orientation: C-plane(0001) Off M -axis 0.2°±0.1

Diameter:100.00±0.2mm

Thickness :1000±25um or 650±25um or 500±25um

Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 1

Primary flat:31±1mm

OF Orientation flat: A axis±0.1°

Frontside Surface Roughness:Ra<0.2nm

Backside Surface Roughness: 0.8~1.2um

( Or double side polished,  both side Ra<0.3nm)

TTV:<10um

BOW:-10~0um

WARP:<10um

Laser Mark Series No. by needs

Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment

Cleanliness :Free visible contamination

Sample



Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 2



Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 3





FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex,  EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them. Freight is in accordance with the actual settlement.

Q: How to pay?

A:100% deposit  T/T, Paypal, Secure payment and Assurance payment by alibaba is ok.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 25pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

(2) For the special-shaped products, the delivery is 4  workweeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.

other crystal wafer also can be provide,we have a good relationship with other semiconductor factory

Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 4

packing &delivery

Round C - Axis Sapphire Wafer Diameter 100mm For LED And Optical Lens 5
