Product Details:

Place of Origin: china
Brand Name: zmsh
Certification: no
Model Number: GaAs-3inch

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: 25pcs casstle in 100-grade cleaning room
Delivery Time: 1-4weeks
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Material: GaAs Single Crystal Substrates Industry: Semicondutor Wafer
Application: Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates Method: VFG
Size: 2-6inch Commen Thickness: 675um



VFG metod N-type 3inch,4inch ,6inch dia150mm GaAs Gallium Arsenide Wafers Semi-insulating type for Microelectronics,



--------------------------------------------------------------------------------------------------------------

GaAs) Gallium Arsenide Wafers

Gallium arsenide (GaAs) is a compound of the elements gallium and arsenic. It is a III-V direct bandgap semiconductor with a Zinc blende crystal structure.

Gallium arsenide is used in the manufacture of devices such as microwave frequency integrated circuits, monolithic microwave integrated circuits, infrared light-emitting diodes, laser diodes, solar cells and optical windows.[2]

GaAs is often used as a substrate material for the epitaxial growth of other III-V semiconductors including indium gallium arsenide, aluminum gallium arsenide and others.

GaAs Wafer Feature and Application

Feature Application field
High electron mobility Light emitting diodes
High frequency Laser diodes
High conversion efficiency Photovoltaic devices
Low power consumption High Electron Mobility Transistor
Direct band gap Heterojunction Bipolar Transistor



Specification

Undoped GaAs

Semi-Insulating GaAs Specifications



Growth Method VGF
Dopant Carbon
Wafer Shape* Round (DIA: 2", 3", 4", and 6")
Surface Orientation** (100)±0.5°

*5" Wafers available upon request

**Other Orientations maybe available upon request



Resistivity (Ω.cm) ≥1 × 107 ≥1 × 108
Mobility (cm2/V.S) ≥ 5,000 ≥ 4,000
Etch Pitch Density (cm2) 1,500-5,000 1,500-5,000



Wafer Diameter (mm) 50.8±0.3 76.2±0.3 100±0.3 150±0.3
Thickness (µm) 350±25 625±25 625±25 675±25
TTV [P/P] (µm) ≤ 4 ≤ 4 ≤ 4 ≤ 4
TTV [P/E] (µm) ≤ 10 ≤ 10 ≤ 10 ≤ 10
WARP (µm) ≤10 ≤10 ≤10 ≤5
OF (mm) 17±1 22±1 32.5±1 NOTCH
OF / IF (mm) 7±1 12±1 18±1 N/A
Polish* E/E, P/E, P/P E/E, P/E, P/P E/E, P/E, P/P E/E, P/E, P/P

*E=Etched, P=Polished

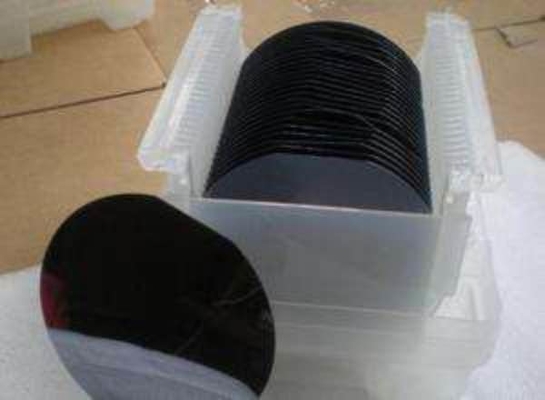

VGF Method Gaas Wafer Dia 150mm Semi - Insulating Type For Microelectronics



FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
(2) For the off-standard products, the delivery is 2 or 6 workweeks after you place the order.

Q: How to pay?
T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance on Alibaba and etc..

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics

Q: Do you have inspection report for material?
We can supply detail report  for our products.


Packaging – Logistcs
Worldhawk concerns each details of the package , cleaning, anti-static , shock treatment . According to the quantity and shape of the product , we will take a different packaging process!

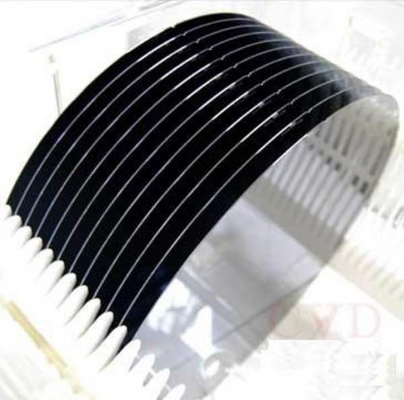

VGF Method Gaas Wafer Dia 150mm Semi - Insulating Type For Microelectronics
