Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate

I'm Online Chat Now

Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate

China Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate supplier
Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate supplier Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate supplier

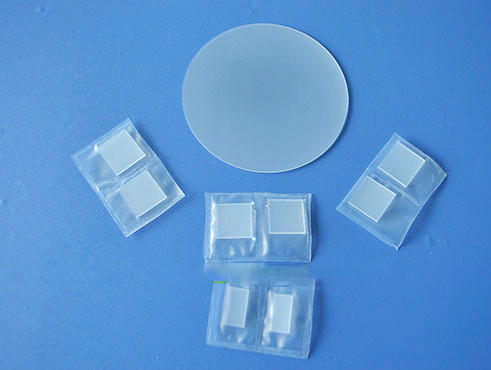

Large Image :  Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate

Product Details:

Place of Origin: china
Brand Name: zmsh
Certification: no
Model Number: ZnO

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET film in 100-grade cleaning room
Delivery Time: 1-4weeks
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Material: LaAlO3 Single Crystal Substrates Industry: Semicondutor Wafer
Application: Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates Method: CZ
Size: 10X10mm Thickness: 0.5mm

LaAlO3 substrates,10X10mm small square Lanthanum aluminate LaAlO3crystal substrate single crystals

--------------------------------------------------------------------------------------------------------------



Application:

LaAlO3 single crystal is the most important single crystal material of high temperature superconducting thin film. Growth of pulling method is CZ method, which can get 2 inches diameter and larger single crystal and the substrate, it  has high temperature superconducting material such as YBaCuO and lattice match well, low dielectric constant and microwave loss is small, which is suitable for making high temperature superconducting microwave electronic devices (such as telecommunication of HTS microwave filter, etc.)

General Properties

Product Name: Lanthanum aluminate (LaAlO3) crystal substrate
Product Description: LaAlO3 perovskite crystal structure of materials on a variety of good lattice matching is epitaxial HTS thin films and giant magnetoresistance excellent substrate material, its dielectric properties suitable for low loss microwave dielectric resonator and the application of . HB is the world's largest existing lanthanum aluminate single crystal growth of manufacturers, the monthly production of 10 to 20 kg can, can provide rods, sheets and cutting rough epitaxial substrate polishing to meet the diverse needs of the global market.
Technical parameters:
Crystal structure Pseudo-cubic
Lattice constant a = 3. 792Å
Growth method Czochralski method
Mp 2080 °C
Density 6.52g/cm3
Mohs hardness 6.5 Mohs
Thermal expansion coefficient 10 × 10 -6 / °C
Permittivity 25
Loss tangent (10GHz) ~ 3 × 10 -4 @ 300K, ~ 0.6 × 10 -4 @ 77K
Color and Appearance By annealing conditions different from brown-yellow to brown polishing a substrate with natural twinned domain
Chemical stability Mineral acids, insoluble at room temperature, the temperature is higher than 150 °C soluble H 3 PO 4
Specifications:

<100>, <110>, <111> Tolerance: + / -0.5 degrees

dia3 "x0.5mm, dia2" x0.5mm, dia1 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm

Single throw or double throw, Ra <5A

Can be customized orientation and size.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging



Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal SubstrateLaalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate

FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
(2) For the off-standard products, the delivery is 2 or 6 workweeks after you place the order.

Q: How to pay?
100%T/T, Paypal, West Union, MoneyGram, Secure payment and Trade

Assurance on Alibaba and etc..

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics

Q: Do you have inspection report for material?
We can supply detail report for our products.


Packaging – Logistcs
Worldhawk concerns each details of the package , cleaning, anti-static , shock treatment .

According to the quantity and shape of the product , we will take a different packaging process!

Laalo3 Substrate ,Gallium Arsenide Wafer Lanthanum Aluminate Crystal Substrate
