116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness

I'm Online Chat Now

116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness

China 116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness supplier
116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness supplier 116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness supplier 116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness supplier 116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness supplier

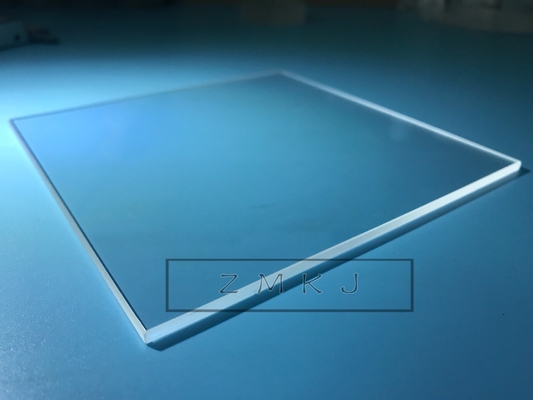

Large Image :  116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness

Product Details:

Place of Origin: wuxi
Brand Name: zmkj
Model Number: 116x116x8.3mmt

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: by case
Packaging Details: pet flm in box
Delivery Time: 10-20days
Contact Now
Detailed Product Description
Material: Al2O3 Single Crystal Orientations: C-plane
Surface: Polished 60/40 Double Side Applications: Glass Window For Equipment
Thickness: 8.3mm

116x116mm square Al2O3 crystal sapphire optical glass widnow,customized sapphire lens,8mm thickness optical glass window



How about Optical Windows functions
Optical windows are applied to isolate different physical environments while allowing light to passing through.When selecting windows,it's important to consider materials,transmission, scattering,wave

front distortion,parallelismand resistance to certain environment.
so,Sapphire feature is more advantageous materials as optical windows.



what is Sapphire Optical Windows Feature

  • 1. suitable for high power,high-pressure applications and vacuum or corrosive atmospheres.
  • 2. Sapphire is a single crystal form of alumina.The material is extremely hard and resistant to attack by srong acid.
  • 3. It has high compressive strength, a high melting point and excellent thermal conductivity.
  • 4. Transmission range is from 150 nm to 5 µm.
  • 5. low distortion,low scatter and excellent parallelism for laser and non-laser applications.

Customized Service
ZMKJ can offer all kinds of windows,which are made from different materials.
Windows of special sizes and materials are available upon requirement.Single
layer or multiplayer anti-reflecting or high-reflecting coatings on optical windows
are available upon customer's requirement.


116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness

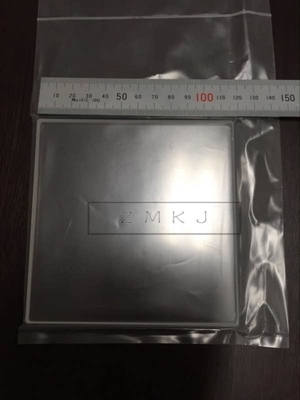

Product Details Show
---------------------------------------------------------------------------------------------------------------------------------
Professional OEM/ODM Factory Supply Custom Design sapphire optical lens with competivive prices
116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness116x116mm Square Sapphire Optical Windows , Sapphire Crystal Glass 8mm Thickness
Production sapphire optical glass window
Raw Meterial sapphire
Diameters Available 0.3mm to 400mm
Diameter Tolerance +/-0.01 mm
Surface Quality 60/40,40/20,20/10
Surface Flatness 1/20 lambda to 3lambda
Surface Irregularity (Peak to Valley) >λ/4
Thickness tolerance +/-0.03mm
Focal length tolerance +/-1%
Clear Aperture >90% of Diameter
Chamfer 0.05-0.5mmx45degree,according to customer’s needs.
Centeration 3 arcmin
Coating AR,Mgf2 is on request,R<0.25% Visible wavelength,laser wavelength
Remark We are the real glass ball lens and half ball lens factory,can offer OEM,best service and compititive unitprice

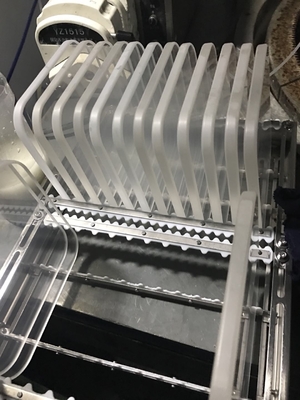

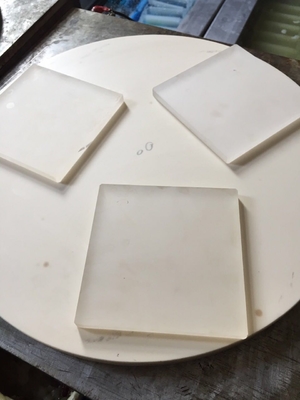

About Our Sapphire Process Step
Sapphire cystal body--->Orienteering-->(sleeve or wire cut)--->rough ingot/blocks-->repair shap
--->wire cut to wafers---->anneal--->grinding ---->polishing ---->cleaning &inspect
Our Service
  • Your inquiry about our products or prices will be replied within 24hrs.
  • Well-trained and experienced staffs to answer all your enquires in time.
  • OEM&ODM, any your customized lightings we can help you to design and put into product.
  • Protection of your sales area, ideas of design and all your private information.
  • Top Quality + Reasonable Price + Responsible After Service=Successful & Win.
