Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,eli-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,
Type: Single Crystal Size: 100x100x0.65mm
Orientation: C(0001)

100x100x0.65mmt C-axis single side polished sapphire substrates wafer, customized size sapphire substrates, Al2O3 crystal optical window,random orientation sapphire wafer, or OEM size


Sapphire description

Product Name:    Aluminum oxide (Al2O3) crystal substrate Sapphire crystal wafer


Product       Description:

Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal          properties, excellent electrical characteristics and dielectric properties, and anti-                     chemicalcorrosion, it is high temperature, thermal conductivity, high hardness, infrared          transparent, chemically stable good. Widely used in high-temperature infrared window             materials and III-V nitride epitaxial film substrate and a variety of materials to meet the             growing blue, purple, white light-emitting diode (LED) and blue laser (LD) needs, Branch          Crystal company specializing in the production of high quality polished sapphire crystal and   epitaxial substrates will provide you with a lot of high quality and low price monocrystalline      substrate.
Technical parameters:

Crystal structure         Hexagonal a = 4.758 Å c = 12.992 Å
Crystal orientation

(11-20) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å

(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å
Crystal purity             > 99.99%
Mp                             2040 o C
Density                      3.98 g / cm 3
Hardness                   9 (mohs)
Thermal expansion     7.5 (x10 -6 / o C)
Heat capacity            0.10 (cal / o C)
Thermal conductivity   46.06 @ 0 o C 25.12 @ 100 o C, 12.56 @ 400 o C (W / (mK))
Permittivity                   ~ 9.4 @ 300K at A axis ~ 11.58 @ 300K at C axis
Loss tangent               <2x10 -5 at A axis, <5 x10 -5 at C axis
Specifications:

C, A, M, R Tolerance: + / -0.2 degrees
dia1"~dia dia10" x 250mm
Single throw or double throw, Ra <5A
Note: according to customers' requirements and size of the corresponding direction.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging

Sapphire wafer and substrate applications include:
- Microelectronic IC applications - SOS Silicon-on-Sapphire
- Growth of superconducting compounds / Gallium Nitride - Infrared detectors
- Hybrid microelectronics - Polishing carriers
Hostile environment
Optical transmission from ultraviolet to near infrared
High temperature   Radiation resistance

Our products cover below:
Polished Double Side Sapphire Wafer Al2O3 Single Crystal Substrate Wear Resistance



100x100x0.65mm specification in details
Material: Single crystal Al2O3 99.999%

Diameter:100x100x0.65mmt

Thickness :650±25um

Orientation: C-plane(0001) Off  M -axis 0.2°±0.1°


Surface Roughness:Ra<0.3nm DSP OR SSP
TTV:<20um, BOW:-25~0um
Laser Mark Series No. by needs


------------------------------------------------------------------------------------------------------------------------------

We also can supply professional customized service in time and provide cooperation and support of
new product development and technology appliance.


Item 4″dia100mm,or dia150mm
Crystal LED Grade Sapphire
Sapphire Purity ≥99.9996%
Color Transparent
Orientation C plane tiled M axis 0.20°±0.1°
Diameter 100±0.1mm
Thickness 650±25um( 500±15um)
Primary Flat location A-axis±0.2°  (each plane is ok)
Flat length 30.0±1mm   (32±1mm)
Front Side Surface Mirror polished , EPI Ready
Surface Roughness Ra<3A  (0.3nm)
Back Side Roughness Fine ground, Ra=1.0±0.2um
TTV ≤10um
LTV ≤2.5um(8mm*8mm)
BOW ≤- 15um
Warp ≤20um


Sapphire produce flow
Polished Double Side Sapphire Wafer Al2O3 Single Crystal Substrate Wear Resistance

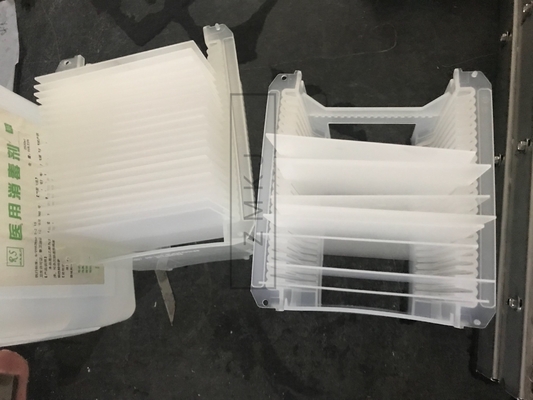

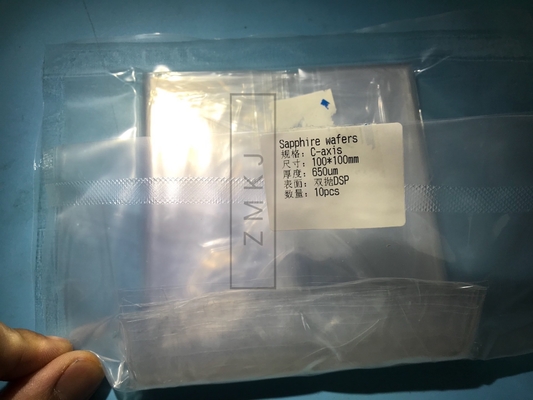

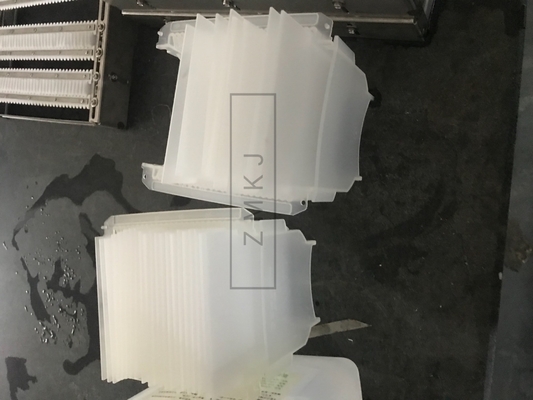

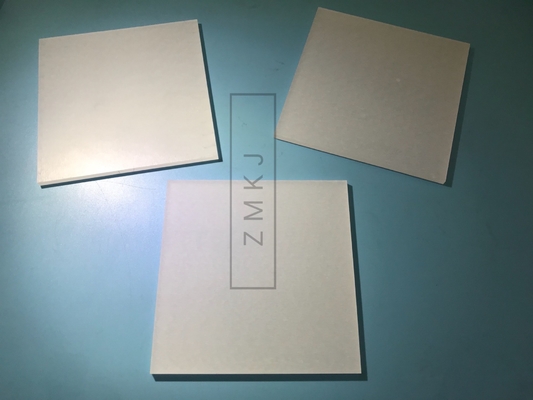

4inchdia103mm  product pictures
