Detailed Product Description
Material: GGG Single Crystal Substrates Industry: Semicondutor Wafer
Application: Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates Thickness: 0.1-1mm
Size: 10x10mm Orientation: 100,111

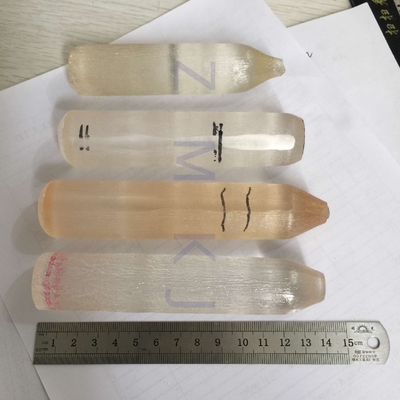

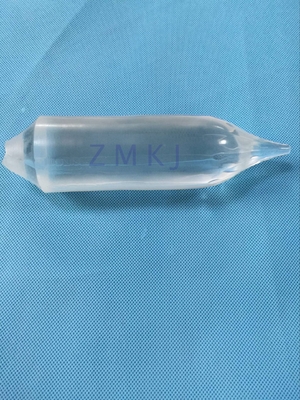

GGG substrates,10X10mm small square Zinc oxide wafer,5x5mm GGG substrates in different orientations, Gadolinium gallium garnet GGG Gd3Ga5012 crystal substrate

--------------------------------------------------------------------------------------------------------------

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a magneto-optical and microwave substrate.

It is the best substrate material for infrared optical isolator (1.3 and 1.5um), which is a very important

device in optical communication. It is made of YIG or BIG film on the GGG substrate plus birefringence parts. Also GGG is an important substrate for microwave isolator and other devices. Its physical, mechanical and chemical properties are all good for the above applications.



Gadolinium gallium garnet (GGG) is used for a magneto-optical film (YIG thin film or BIG) a special substrate in the optical.



Product Type: Gadolinium gallium garnet (Gd3Ga5012) crystal substrate
Product Description: Gadolinium gallium garnet (GGG) is used for a magneto-optical film (YIG thin film or BIG) a special substrate in the optical communication apparatus, YIG or BIG films are 1.3 and 1.5 of the optical isolator core components of different crystal orientation GGG single-crystal substrate may have the best film with such lattice matching and GGG have good physical, mechanical properties and chemical stability, so as to ensure the success of the epitaxial growth film. GGG while also making the best microwave isolator substrate material.
Technical parameters:
Basic Properties
Crystal structure Cube: a = 12.376 Å
Mp 1800 o C
Density 7.09g/cm 3
Hardness 6.5 mohs
Index of refraction 1.95
Crystal Purity > 99.99%
Crystal growth method Czochralski method
Direction of crystal growth <111>
Specifications:

Standard Specification GGG substrate

Maximum crystal size: Ø 30 x 100 mm

Standard chip size: direction <111> ± 0.5 o; Ø 30X 0.5 mm,

10 x 10 x 0.5 mm epitaxial single throw or double throw Ra <5 Å

Note: You can provide special sizes according to customer needs and the direction of the substrate.

Standard Packaging: 1000 clean room, clean bags 100





Specifications for wafer

diameter/size aa28-aa35mm
thickness 0.5mm/customization
Orientation <100><110><111>
surface/back polishing/lap polishi

Our factory can manufacture GGG ( Gd3Ga5O12 ) crystal wafer

diameter/size φ28-φ35mm

thickness 0.5mm/customization
Orientation <100><110><111>

surface/back polishing/lap polishing/polishing

RZ < 0.5nm
