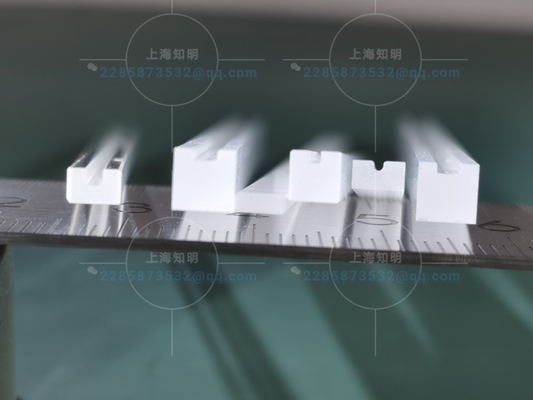

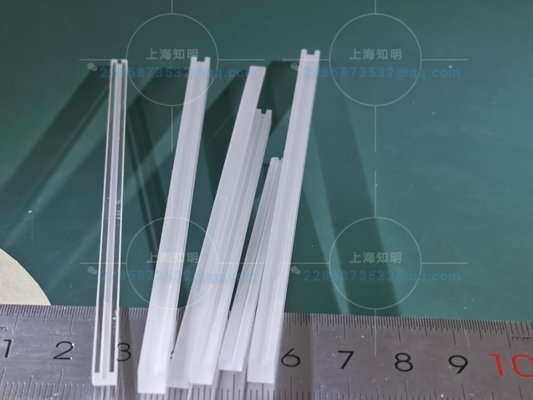

Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth
  • Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth
  • Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth
  • Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth
  • Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth
Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth

Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth

Place of Origin china
Brand Name zmkj
Model Number sapphire bar with groove
Product Details
Materials:
99.999％ Al2O3
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics，bearing
Advantagement:
High Hardness9.0，wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance:
85％
Length:
~350mm
Type:
Single Sapphire Crystal
Groove Depth:
0.5mmx0.5mm
Application2:
Optical Fiber
High Light:

300mm Sapphire Bar

,

Optical Fiber Sapphire Parts

,

0.5mm Depth Sapphire Parts

Product Description

200mm 300mm length sapphire bar with groove 0.5mm depth for optical fiber

Application
Applications of Sapphire crystal glass: Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
●Aircraft windows
●Submarine windows
●FLIR
●Medical/Life Sciences
●Industrial OEM
● Intelligence, surveillance &
reconnaissance(ISR)
Sapphire window
Dimension
8-400mm
Dimensional tolerance
+0/-0.05mm
Surface quality(scratch&dig)
40/20
Surface accuracy
λ/10per@633nm
Clear Aperture
＞85%,＞90%
Parallelism tolerance
±2''-±3''
Bevel
0.1-0.3mm
Coating
AR/AF/upon customer request
For custom size,pls click here to contact with us for quotation

Sapphire characteristics



Materials characteristics
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120



About Our Company ZMKJ Sapphire  Process

ZMKJ locates in the city of Shanghai, Which is the best city of China, and our factory is founded
in Wuxi city in 2014.
We specialize in processing a varity of materials into wafers, substrates and custiomized optical
glass parts as like sapphire, sic, quartz.components widely used in electronics, optics, optoelectronics
and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.
It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputatiaons.





3.0  Sapphire  sample  in detail





Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth 0Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth 1Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth 2Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth 3



4.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance  by other semiconducting material products.


Optical Fiber 300mm Length Sapphire Bar With Groove 0.5mm Depth 4

6.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc by FOB delivery.
 If you have your own express number, it's great.

Q: How to pay?
50％ deposit ,50％ before delivery byT/T, Paypal, West Union, MoneyGram,
Secure payment and Trade  Assurance on Alibaba and etc..

Q: What's the delivery time?
(1) For the standard products such as ball lens, substrates,windows,
     For inventory: the delivery is 5 workdays after order.
   For customized products: the delivery is 2 or 3 workweeks after order.

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.
