120x120mm Semiconductor Etching Polished Sapphire Optical Windows

120x120mm Semiconductor Etching Polished  Sapphire Optical Windows
120x120mm Semiconductor Etching Polished  Sapphire Optical Windows 120x120mm Semiconductor Etching Polished  Sapphire Optical Windows

Large Image :  120x120mm Semiconductor Etching Polished Sapphire Optical Windows

Product Details:

Place of Origin: wuxi
Brand Name: zmkj
Model Number: 120x120x8mmt

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: by case
Packaging Details: pet flm in box
Delivery Time: 10-20days
Detailed Product Description
Material: Al2O3 Sapphire Single Crystal Orientations: C-plane
Surface: Polished 60/40 Double Side Applications: Glass Window For Semiconductor Etching
Thickness: 8.0mm Adavantage: Wear And Corrosion Resistance
Tolerance: ±0.05mm
High Light:

etching Sapphire Optical Windows

,

polished Sapphire Optical Windows

,

Semiconductor etching sapphire plate

120*120*8mm polished Sapphire Optical Window for Semiconductor etching equipment ,

sapphire optical glass widnow,customized sapphire lens,8mm thickness optical glass window



How about Optical Windows functions
Optical windows are applied to isolate different physical environments while allowing light to passing through.When selecting windows,it's important to consider materials,transmission, scattering,wave

front distortion,parallelismand resistance to certain environment.
so,Sapphire feature is more advantageous materials as optical windows.



what is Sapphire Optical Windows Feature

  • 1. suitable for high power,high-pressure applications and vacuum or corrosive atmospheres.
  • 2. Sapphire is a single crystal form of alumina.The material is extremely hard and resistant to attack by srong acid.
  • 3. It has high compressive strength, a high melting point and excellent thermal conductivity.
  • 4. Transmission range is from 150 nm to 5 µm.
  • 5. low distortion,low scatter and excellent parallelism for laser and non-laser applications.

Customized Service
ZMKJ can offer all kinds of windows,which are made from different materials.
Windows of special sizes and materials are available upon requirement.Single
layer or multiplayer anti-reflecting or high-reflecting coatings on optical windows
are available upon customer's requirement.



Product Details Show
---------------------------------------------------------------------------------------------------------------------------------
Professional OEM/ODM Factory Supply Custom Design sapphire optical lens with competivive prices

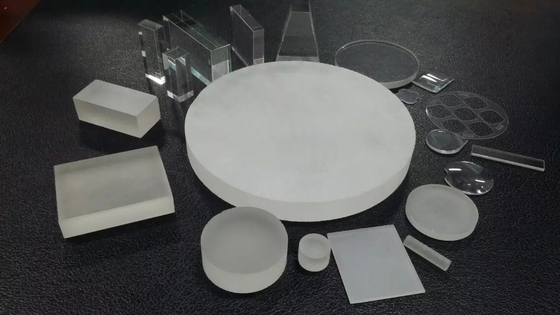

120x120mm Semiconductor Etching Polished  Sapphire Optical Windows 0120x120mm Semiconductor Etching Polished  Sapphire Optical Windows 1

Production sapphire optical glass window
Raw Meterial sapphire
Diameters Available 0.3mm to 400mm
Diameter Tolerance +/-0.01 mm
Surface Quality 60/40,40/20,20/10
Surface Flatness 1/20 lambda to 3lambda
Surface Irregularity (Peak to Valley) >λ/4
Thickness tolerance +/-0.03mm
Focal length tolerance +/-1%
Clear Aperture >90% of Diameter
Chamfer 0.05-0.5mmx45degree,according to customer’s needs.
Centeration 3 arcmin
Coating AR,Mgf2 is on request,R<0.25% Visible wavelength,laser wavelength
Remark We are the real glass ball lens and half ball lens factory,can offer OEM,best service and compititive unitprice
About Our Sapphire Process Step
Sapphire cystal body--->Orienteering-->(sleeve or wire cut)--->rough ingot/blocks-->repair shap
--->wire cut to wafers---->anneal--->grinding ---->polishing ---->cleaning &inspect
