25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment

I'm Online Chat Now

25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment

25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment
25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment 25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment 25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment

Large Image :  25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment

Product Details:
Place of Origin: CHINA
Brand Name: zmkj
Model Number: AlN
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: 25pcs cassette box
Delivery Time: 10-20days
Payment Terms: T/T, Western Union

25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment

Description
Material: AlN Ceramic Plate Applications: Ceramic Plates For Semiconductor Processing
Color: White Size: 25x25x2mmt
Purity: 99.95% High Thermal Conductivity: 200W
Surface: Lapped
High Light:

AlN Ceramic Substrate plates

,

lapped Ceramic Substrate plates

,

lapped surface aln ceramic

25x25x2mmt AlN Ceramic Substrate plates with High Thermal Conductivity 200w



AlN Introduce

The aluminum nitride (AlN) ceramic has high thermal conductivity (5-10 times as the alumina ceramic),

low dielectric constant and dissipation factor, good insulation and excellent mechanical properties, non-toxic, high thermal resistance,chemical resistance, and the linear expansion coefficient is similar with Si.

As a new generation of ceramic material,AlN ceramic attracts more and more attention. In the leading

level of domestic enterprises’, the quality of our company AlN ceramic substrate reaches the international advanced level. It is widely used in communication components, high power led, power electronic devices and other fields.



Our cooperating factory can applied the casting-tape process for the manufacturing of alumina substrate. With good thermal conductivity, insulation, thermal shock resistance, well resistance and anti-acid and alkali etc., our ceramic substrates can be used in thick-film hybrid integrated circuits (HIC), LED ceramic radiating base, power module, semiconductor devices and other fields.



AlN Feature & Advantagement

- Product Name:

Aluminium Nitride / AIN Ceramic Substrate

- Material: Aluminum Nitride / AlN
- Typical Characteristics:

1. Very High Thermal Conductivity

2. Good Electrical Insulation

3. Corrosion Resistance

4. Good Flatness

- Typical Applications:

1. Power Electronic Device

2. High Brightness LED

3. Communication Device


Material Properties
Properties / Material 96% Alumina AlN
Density (g/cm3) 3.6 3.3
Color White Grey
Dielectric Strength (KV/mm) ≥17 ≥17
Dielectric Constant (1MHz) 10.6 8.9
Volume Resistivity (@20°C, Ω.cm) ≥1014 ≥1014
Thermal Conductivity (@20°C, W/mk) ≥24 ≥175
Thermal Expansion Coefficient (10-6/°C) 6.5-8.0 4.8
Flexural Strength (MPa) ≥350 ≥450

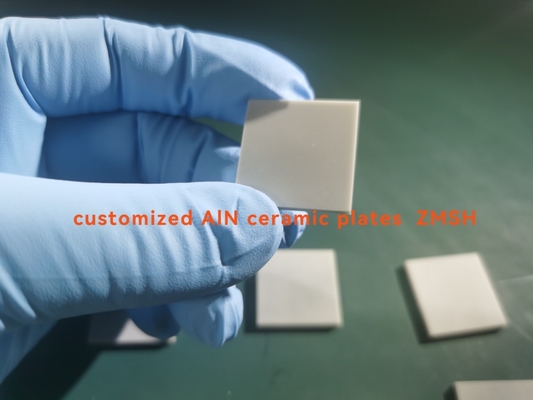

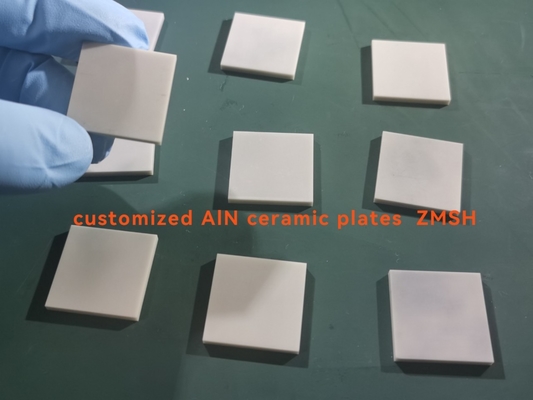

25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment 025x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment 1

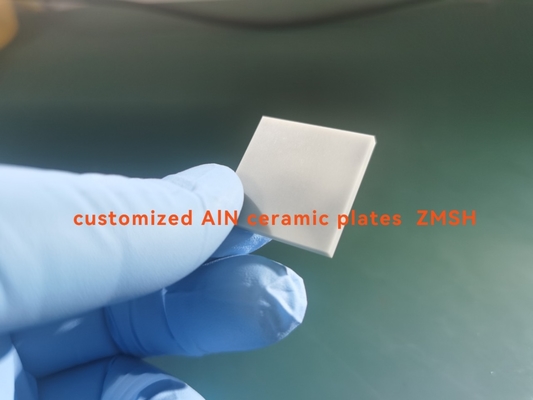

25x25x2mmt AlN Ceramic Substrate Plates With Lapped Surface Treatment 2



 Other related Regular Size
Thickness(mm)                                        lengthx width ( mm)
0.385



       2″* 2″

50.8mm*50.8mm





          3″* 3″

76.2mm*76.2mm



            4″* 4″

101.6mm*101.6mm

              4.5″* 4.5″

    114.3mm*114.3mm

0.5
0.635
1.0
                                            diameter(mm)
1.0

Φ16

Φ19

Φ20

Φ26

Φ30

Φ35

Φ40

Φ45

Φ50

Φ52

Φ60 Φ75 Φ80
1.2
1.5
2.0
2.5

Diameter (mm) Thickness (mm)

2''

(50.8mm )

OF 16mm

3''

(76.2mm)

OF22mm

4''

(100mm)

OF 30mm

5“

(125mm)

OF 42.5mm

6"

(150mm)

OF 47.5mm

0.385
0.5
0.65
1.0





Polishing  Service

   Our AlN substrate can be polished(single and double polish) by the advanced machine which imported

from abroad. Ceramic substrate surface roughness can reach to 1nm without porous after being polished.

  It is perfectly suitable for the device application of small spec, high precision , wiring density and good stability.
