Al2O3 Sapphire Glass Optical Lens
  • Al2O3 Sapphire Glass Optical Lens
  • Al2O3 Sapphire Glass Optical Lens
  • Al2O3 Sapphire Glass Optical Lens
  • Al2O3 Sapphire Glass Optical Lens

Al2O3 Sapphire Glass Optical Lens

Place of Origin china
Brand Name zmkj
Model Number blue colored sapphire lens
Product Details
Al2O3 Single Crystal
Semiconductor Wafer ,optical Glass Wafer, Watch Glass
Led Eli-ready Wafer, Optical Protective Window,bearing,electric Ceramic,
Vision Light Transmittance:
Customized Color 1#-5#
Gemstone Material:
Ruby,Sapphire,Synthetic Ruby Corundum Opaque
Gemstone Type:
Synthetic (lab Created)
Synthetic Ruby,Synthetic Sapphire,Synthetic Ruby/corundum
Jewelry Making
9.0 Moh's Scale
Lab Created Gems,lab Grown Sapphires Loose Gems Synthetic Ruby
High Light:

Al2O3 Sapphire Glass Optical Lens


Hardness 9.0 Sapphire Glass Lens


Synthetic Sapphire Glass Optical Lens

Product Description

blue colored sapphire lens for watch case glass surface/ color sapphire glass optical lens / customized color/ yellow pink orange purple red color sapphire


 Sapphire crystals are active media for highly efficient tunable solid-state lasers. They demonstrate good operation in the pulsed-periodic, quasi-CW and CW modes of operation. Ti:Sapphire is a 4-level, Vibronic laser with fluorescence lifetime of 3.6 µm. The peak of the absorption band is 490 nm which makes it an excellent material for pumping with a variety of sources operating in the green-argon ion, copper vapour, frequency-doubled Nd:YAG, and dye lasers are routinely used. Crystals have also been flashlight pumped by lamps designed to allow short fluorescence lifetime. These factors and broad tunability make it an excellent replacement for several common dye lasing materials. The crystals are grown using the Czochralsky and the Ciropolous techniques.

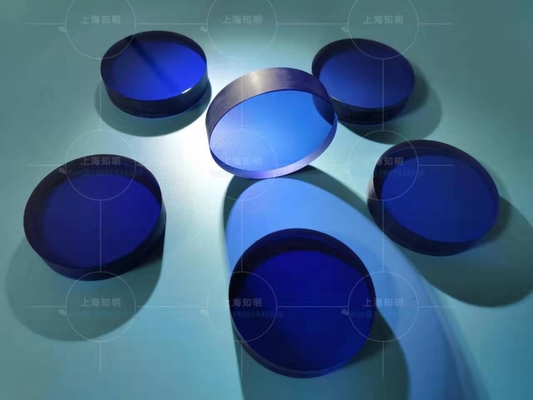

Al2O3 Sapphire Glass Optical Lens 0





Chemical formula Cr3+:Al2O3
Crystal structure hexagonal
Lattice parameters, Å a = 4.748; c = 12.957
Refractive indexes np = 1.759; nm = 1.767
Birefrigence 0.0082
Density, g/cm3 3.98
Mohs hardness 9
Thermal conductivity at 25°C, W x cm-1 x °K-1 -
perpendicular to c-axis 0.35
parallel to c-axis 0.33
Specific heat at 18°C, J x kg-1 x °K-1 761
Thermal expansion coefficient (20 - 100°C) -
perpendicular to c-axis 4.78 x 10-6 x °K-1
parallel to c-axis 5.31 x 10-6 x °K-1
Syngony triangular
Axial characteristic uniaxial

Rods with round cross-sections and slabs are manufactured:

Tuning range, nm 680 - 1100
Pumping range, nm 450 - 532
Ti dopant concentration, at.% 0.02 ÷ 0.35
Absorption coefficient at 510 nm, cm-1 0.5 ÷ 2.5
FOM >200
Orientation 90° to c axis
Geometry flat-flat / Brewster
Endsunparallelity 10"
Flatness 0.2
Orientation tolerance < 5°
Broadband AR coatings, % < 0.2
Diameter, mm (3 ÷ 40) ± 0.1
Length, mm (10 ÷ 140) ± 0.5

We supply rods and slabs with different cross-sections, dimensions and coatings. Different dopant compositions

with different concentrations are available for specific customer requirements.

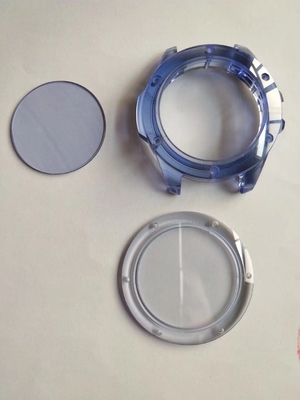

Al2O3 Sapphire Glass Optical Lens 1

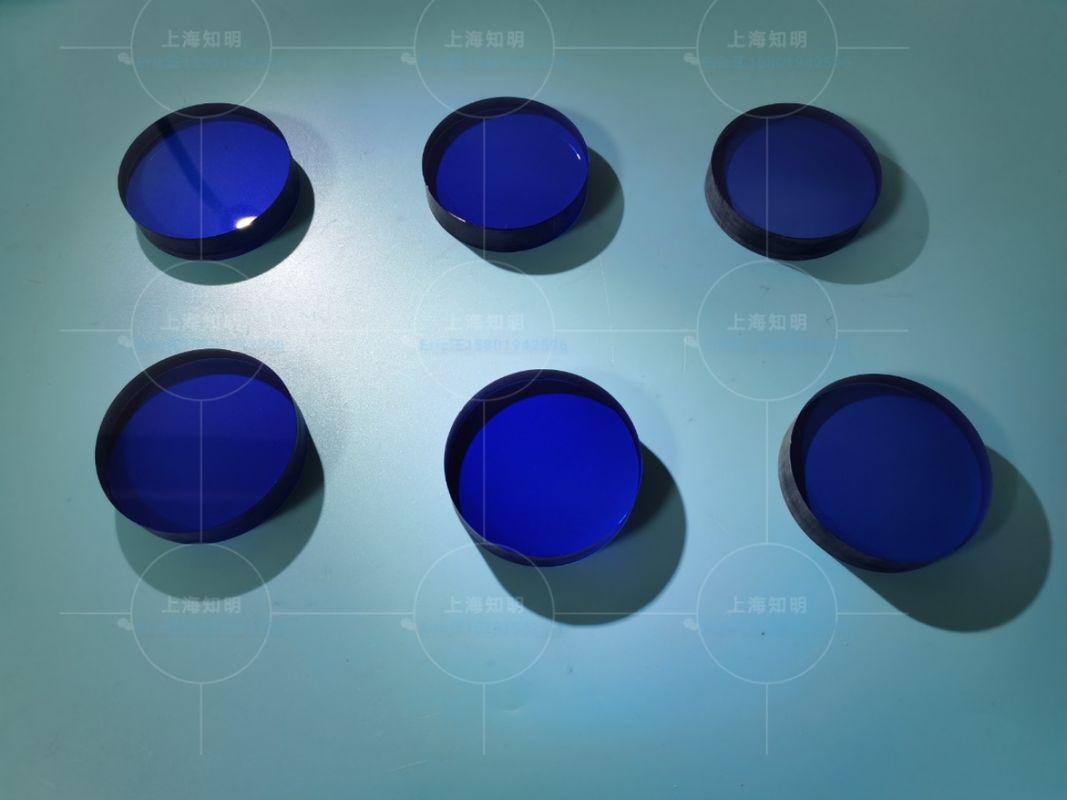

Al2O3 Sapphire Glass Optical Lens 2


Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 5pcs Q3: What’s the lead time?

A: Sample :5 days.Mass production: 10-20 days.

Q4: How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TN by FOB. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again

and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. of course OEM is also acceptable.
