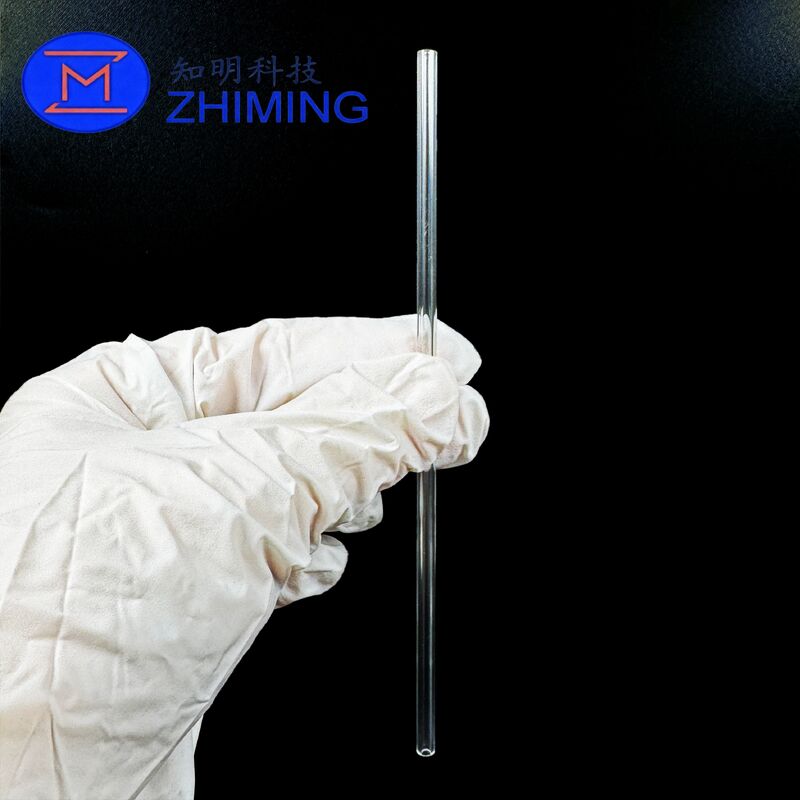

Polished Sapphire Capillary Tube for Analytical Instruments, Laser & High-Pressure Applications

Product Overview

Our polished sapphire capillary tubes are precision-engineered using high-quality single-crystal sapphire (Al₂O₃), offering extreme hardness, excellent thermal resistance, and outstanding chemical stability. These tubes are ideal for applications requiring high-pressure, high-temperature, or corrosive environments, including analytical instruments, laser systems, microfluidics, and biomedical devices.

Sapphire’s broad optical transparency (UV 200 nm – IR 5 μm) makes it suitable for laser and infrared optical applications. Tubes can be provided as blank substrates, AR-coated pieces, or fully precision-polished to meet exact specifications.

Typical applications include:

• Analytical & research instruments (HPLC, GC, ICP, spectroscopy)

• Biomedical & microfluidic systems

• Optical and laser guiding tubes

• Semiconductor process components (CVD, MOCVD)

• Aerospace & defense optical conduits

Key Features & Advantages

• Extreme Hardness: Mohs hardness 9, second only to diamond; highly wear-resistant.

• High Thermal Resistance: Melting point ~2030°C; reliable performance up to 1700–2000°C.

• Chemical Inertness: Resistant to acids, alkalis, and most solvents.

• Optical Clarity: Excellent transmission from 0.20 – 5.50 μm, low optical loss.

• Electrical Insulation: Superior dielectric properties for high-voltage and high-frequency environments.

• Mechanical Stability: Maintains structural integrity under vacuum, vibration, or rapid thermal cycling.

• Customizable Polishing: Single-end, double-end, or full polishing to optimize performance.

• Precision Dimensions: Inner/outer diameters controlled within ±0.005 mm.

Technical Specifications (Customizable)

Applications

• Analytical & research instruments: Chromatography, mass spectrometry, spectroscopic analysis

• Biomedical & life sciences: Microfluidics, diagnostics, pharmaceutical transport

• Optics & lasers: Fiber optic protection, laser beam guidance, optical sensors

• Semiconductor industry: Gas delivery, plasma etching, CVD/MOCVD components

• Aerospace & defense: Optical conduits and sensor protection under extreme conditions

FAQ (Frequently Asked Questions)

Q1: What material are the tubes made of?
A: Synthetic single-crystal sapphire (Al₂O₃), known for extreme hardness, chemical inertness, and high thermal stability.

Q2: Why “semi-polished” instead of “half-polished”?
A: “Semi-polished” indicates selective polishing of critical areas to balance performance and cost, whereas “half-polished” may sound informal.

Q3: How does sapphire compare to quartz or ceramic capillaries?
A: Sapphire is harder, more thermally stable, more chemically resistant, and has superior optical transmission from UV to IR.

Q4: Can these tubes be customized?
A: Yes. ID, OD, length, bore finish, end shape, and coatings can all be tailored to specific requirements.
