|Material:||AlN On Wafer||Method:||HVPE|
|Size:||4inch||Thickness:||430+15um Or 650um|
|Industry:||LD，led，laser Device，detector，||Surface:||Double Or Single Side Polished|

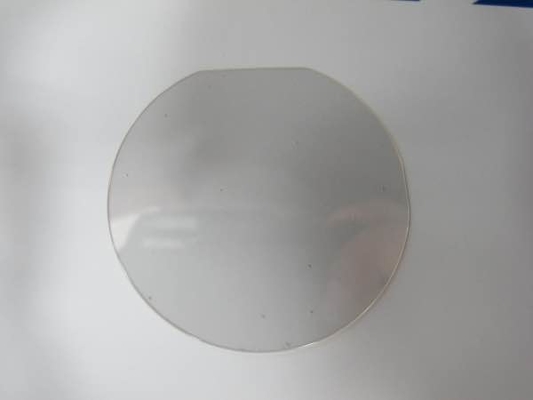

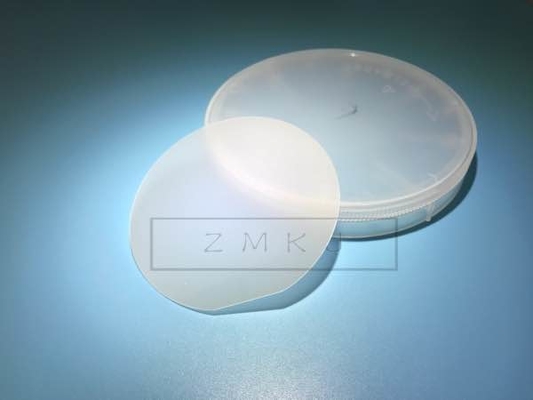

2inch ,4inch Gallium Nitride AlN template wafer on sapphire or sic substrates,HVPE Gallium Nitride wafer,AlN templates
Forbidden band width (light emitting and absorption) cover the ultraviolet, visible light and infrared.
|Product||Aluminum nitride (AlN) film|
|Product Description:||AllN Epitxial proposed model saphhire hydride vapor phase epitaxy (HVPE) method. Aluminum nitride film is also cost-effective way to replace the aluminum nitride single crystal substrate. Branch Crystal sincerely welcome your inquiry!|
10x10x0.5mm, 10x10x1mm, dia2 "x1mm;
Can be customized according to customer demand special orientation and size.
|Standard Packaging:||1000 clean room, 100 clean bag or single box packaging
GaN can be used in many areas such as LED display, High-energy Detection and Imaging,
Laser Projection Display, Power Device, etc.
|4” AlN Templates||2-4inch size also ok|
|Substrate||Sapphire, SiC, GaN|
|Thickness||1000nm+/- 10% (AlN thickness)|
|Orientation||C-axis(0001) ± 1°|
|Dislocation Density||XRD FWHM of (0002) < 200 arcsec.|
|XRD FWHM of (10-12) < 1000 arcsec|
|Useable Surface Area||> 80%|
|Package||Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere. or single cassettes.|
Other size aslike 5x5mm,10x10mm,2inch ,3inch also can be customized.
