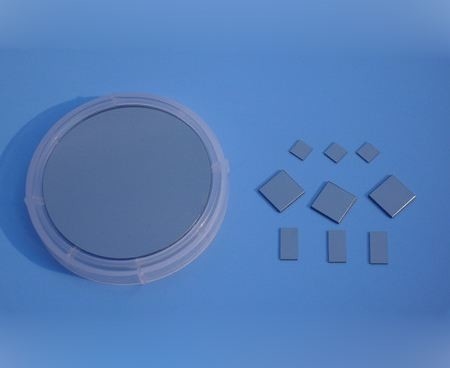

Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate

I'm Online Chat Now

Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate

China Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate supplier
Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate supplier Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate supplier

Large Image :  Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate

Product Details:

Place of Origin: china
Brand Name: zmsh
Certification: no
Model Number: GaAs-001

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: by case
Packaging Details: 25pcs casstle in 100-grade cleaning room
Delivery Time: 1-4weeks
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: GaAs Single Crystal Substrates Industry: Semicondutor Wafer
Application: Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates Method: VFG
Size: 2-6inch Commen

2inch GaAs substrates, GaAs wafer for led,Gallium Arsenide crystal Wafers,Si/Zn Dopant GaAs wafer(A compound of the elements gallium and arsenic. It is a III-V direct bandgap semiconductor with a zinc blende crystal structure)

--------------------------------------------------------------------------------------------------------------



Application:



1. Mainly used in electronics, low temperature alloys, Gallium Arsenide.



2. The primary chemical compound of gallium in electronics, is used in microwave circuits, high-speed switching circuits, and infrared circuits.



3. Gallium Nitride and Indium Gallium Nitride, for semiconductor uses, produce blue and violet light-emitting diodes (LEDs) and diode lasers.

Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate



Specification



Parameter

Guaranteed / Actual Values UOM
Growth Method: VGF
Conduct Type: S-I-N
Dopant: Undoped
Diameter: 50.8± 0.1 mm
Orientation: (100)± 0.50
OF location/length: EJ [ 0-1-1]± 0.50/16±1
IF location/length: EJ [ 0-1 1 ]± 0.50/7±1
Resistivity: Min: 1.0 E8 Max: 2.2 E8 Ω·cm
Mobility: >2000   cm2/v.s
EPD: <1500   / cm2
Thickness: 350± 20 µm
Edge Rounding: 0.25 mmR
Laser Marking: N/A
TTV/TIR: Max: 10 µm
BOW: Max: 10 µm
Warp: Max: 10 µm
Partical Count: 50/wafer(for particle>0.3um)
Surface Finish– front: Polished
Surface Finish –back: Etched
Epi-Ready:

Yes





Parameter Customer’s Requirements Guaranteed / Actual Values UOM
Growth Method: VGF VGF
Conduct Type: S-C-P S-C-P
Dopant: GaAs-Zn GaAs-Zn
Diameter: 50.8± 0.4 50.8± 0.4 mm
Orientation: (100)± 0.50 (100)± 0.50
OF location/length: EJ [ 0-1-1]± 0.50/16±1 EJ [ 0-1-1]± 0.50/16±1
IF location/length: EJ [ 0-1 1 ]± 0.50/7±1 EJ [ 0-1 1 ]± 0.50/7±1
Ingot CC: Min: 1 E19 Max: 5 E19 Min: 1.4 E19 Max: 1.9 E19 /cm3
Resistivity: Min: N/A Max: N/A Min: N/A Max: N/A Ω·cm
Mobility: Min: N/A Max: N/A Min: N/A Max: N/A cm2/v.s
EPD: Max: 5000 Min: 600 Max: 700 / cm2
Thickness: 350±25 350±25 µm
Surface Finish– front: Polished Polished
Surface Finish –back: Etched Etched
Epi-Ready:

Yes

Yes



Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate

FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
(2) For the off-standard products, the delivery is 2 or 6 workweeks after you place the order.

Q: How to pay?
T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance on Alibaba and etc..

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics

Q: Do you have inspection report for material?
We can supply detail report for our products.


Packaging – Logistcs
Worldhawk concerns each details of the package , cleaning, anti-static , shock treatment .

According to the quantity and shape of the product , we will take a different packaging process!

Dia 50.8mm 2 Inch Gallium Arsenide Wafer For Semiconductor Substrate



Contact Details
SHANGHAI FAMOUS TRADE CO.,LTD

Contact Person: Wang

Send your inquiry directly to us (0 / 3000)
