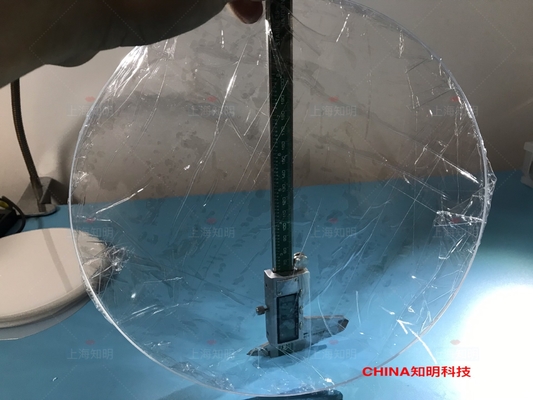

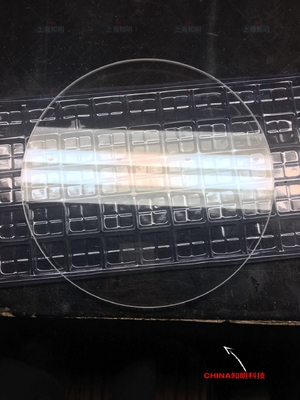

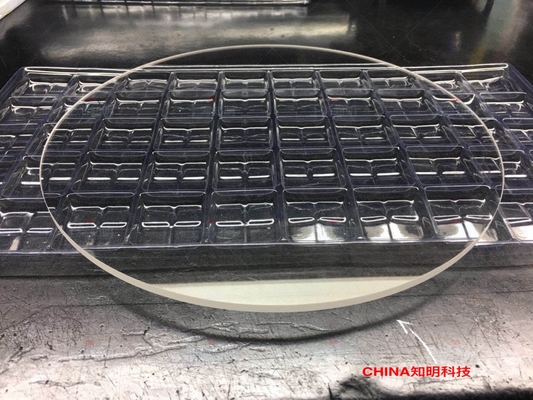

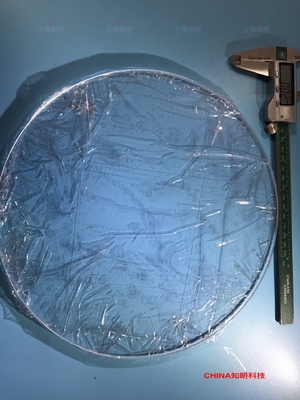

Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

I'm Online Chat Now

Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

China Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window supplier
Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window supplier Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window supplier Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window supplier Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window supplier

Large Image :  Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

Product Details:

Place of Origin: china
Brand Name: zmsh
Model Number: dia300

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 10-30days
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Material: 99.999% Al2O3 Industry: Led,optical Glass,eli-ready Wafer
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color: White Or Red Or Blue
Vision Light Transmissivity: 85% Advantagement: High Hardness9.0,wear Resistance,corrosion Resistance
Type: Single Crystal

diameter 300mm sapphire glass lens; ultrathin sapphire glass wafer ,4inch 0.5mm C-axis sapphire wafer for epi-ready,sapphire thick glass lens for covering,sapphire optical windows,4inch 0.3mm thickness sapphire wafer,


   Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.Sapphire , so making them ideal materials for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. And sapphire also  is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance.
-------------------------------------------------------------------------------------
We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Material Sapphire(Al2O3)
Density(20°C) Kg/m3                 3.98×103
Crystal Structure                         hexagonal
Crystal lattice constant          a=4.785Å c=12.991 Å
Mohs hardness                            9
Melting Point                               2045°C
Boiling Point                                3000°C
Coefficient of Thermal Expansion    α=5.8×10 -6 /K
Specific heat                          0.418W.s/g/k
Thermal conductio                  25.12W/m/k(@100°C)
Refractive Index (nd)               no=1.768ne=1.76
dn/dt                                         13×10-6/K(@633nm)
Tranmission                            T≈85%(0.3~5um)
Permittivity                               11.5(//c), 9.3(⊥c)

Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window



  1. 4inch 0.3mm 0.5mm thickness sapphire wafer specification
  2. Material: Single crystal Al2O3 99.999%
  3. Orientation: C-plane(0001) Off M -axis 0.2°±0.1
  1. Diameter:100±0.2mm or 3inch,2inch,5inch,6inch
  2. Thickness :300±25um  or 500±15um,
  3. Primary flat:30±1mm (or round wafer)
  1. OF Orientation flat: A axis±0.1°
  2. Frontside Surface Roughness:Ra<0.3nm
  3. Backside Surface Roughness: 0.8~1.2um
  4. ( Or double side polished,  both side Ra<0.2nm)
  5. TTV:<15um     BOW:-15~0um      WARP:<20um
  6. Laser Mark Series No. by needs
  7. Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
  1. Cleanliness :Free visible contamination


Sapphire Wafer Process Step
Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

Sample
Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For WindowDiameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window

Diameter 300mm Crystal Glass Sapphire Wafer Double Side Polished For Window


we also can provide other materials crystal seimconductor wafers as like  GaN, SiC,GaAs,InP,MgO etc.


CATALOGU & Stcok List

Standard wafer(customzied)

2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Cut
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
N-plane (1123) sapphire wafer
C-axis with a 0.5°~ 4° offcut, toward A-axis or M-axis
Other customized orientation
Customized Size
10*10mm sapphire wafer
20*20mm sapphire wafer
Ultra thin (100um) sapphire wafer
8 inch sapphire wafer
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS
2inch

DSP C-AXIS 0.1mm/0.175mm/0.2mm/0.3mm/0.4mm

/0.5mm/ 1.0mmt

SSP C-axis 0.2/0.43mm

(DSP&SSP) A-axis/M-axis/R-axis 0.43mm



3inch



DSP/ SSP C-axis 0.43mm/0.5mm



4Inch



dsp c-axis 0.4mm/ 0.5mm/1.0mm

ssp c-axis 0.5mm/0.65mm/1.0mmt





6inch

ssp c-axis 1.0mm/1.3mmm



dsp c-axis 0.65mm/ 0.8mm/1.0mmt
