Product Details
Place of Origin: china
Brand Name: zmkj
Model Number: rod-001
Payment & Shipping Terms
Minimum Order Quantity: 30pcs
Price: 100usd/pcs by FOB
Packaging Details: PET Films
Delivery Time: 20DAYS
Payment Terms: T/T, L/C, D/A, D/P
Materials: |
99.999％ Al2O3 |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics，bearing |
Advantagement: |
High Hardness9.0，wear Resistance, |
VisVisible Light TransmittanceVisible Light Transmittance: |
85％ |
Color: |
Red And White |
Type: |
Single Crystal |
Materials: |
99.999％ Al2O3 |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics，bearing |
Advantagement: |
High Hardness9.0，wear Resistance, |
VisVisible Light TransmittanceVisible Light Transmittance: |
85％ |
Color: |
Red And White |
Type: |
Single Crystal |

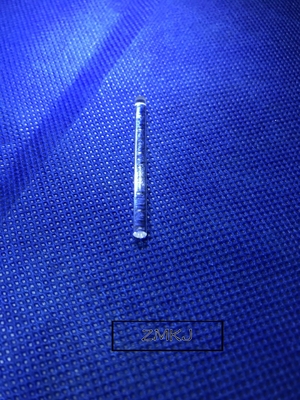

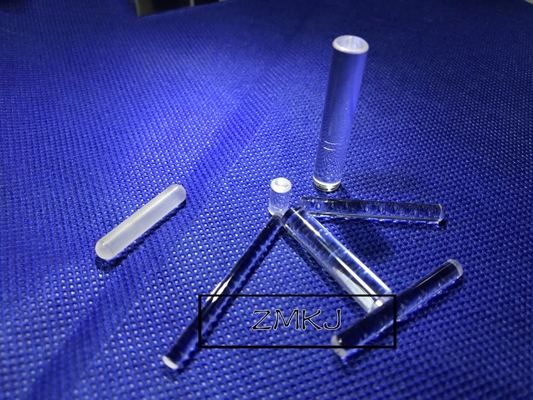

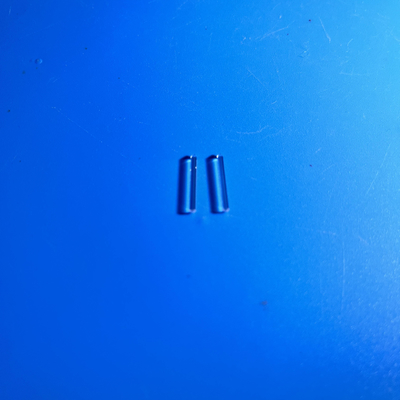

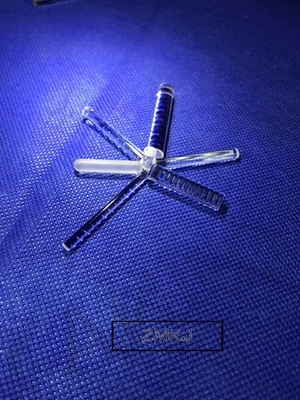

sapphire optical lens Al2O3 single crystal glass sapphire optical glass ingots sapphire rods sapphire optical rods
Surface-polished synthetic sapphire rods and sapphire ingots are precision-engineered materials made from single-crystal aluminum oxide (Al₂O₃). Synthetic sapphire is known for its exceptional hardness, second only to diamond, and its ability to withstand extreme temperatures and harsh environments. The polishing process enhances the surface quality, making it ideal for applications that require high optical clarity and smoothness.
One of the standout features of synthetic sapphire is its high dielectric constant, which makes it an excellent electrical insulator. This property, combined with its mechanical strength and chemical resistance, makes sapphire rods and ingots ideal for use in a wide range of industries, including electronics, optoelectronics, and aerospace.
Sapphire rods are commonly used in optical systems, lasers, and high-precision equipment, while sapphire ingots are used as the base material for slicing into wafers for semiconductor and LED manufacturing. The material’s transparency to UV and infrared light also makes it a preferred choice for windows and lenses in high-performance optical devices. Overall, surface-polished synthetic sapphire components are critical in applications where durability, precision, and insulating properties are required.
1. Material description:
Grade: optical grade without bubble,crystal boundary;
Orientations:C-aixs ±1° or A-axis
Size:dia1-50mm±0.01mm
Surface: LP/ polished
SD:60/40 ,or40/20
Roudness:1um
| Thermal Properties | |
| Thermal Coefficient of Expansion | (0/300°C): 45-53 X 10 -7/°C |
| Softening Point | 2040°C / 3700 °F |
| Mechanical Properties | |
| Density | 3.97 g/cm3 |
| Knoop Hardness | 1525-2000 Kg/mm2 |
| Young's Modulus | 50-55 X 106 psi / 345 GPa |
| Poisson's Ratio | 0.28-0.33 |
| Optical Properties | |
| Refractive Index | 1.768 |
| Electrical Properties | |
| Dielectric Constant | Avg. 9.3-11.5 |
| Dielectric Strength | 4.8 X 105 v/cm |
Advantage from Comprison with other optical glass
1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Chemical Resistance
4- Extreme surface hardness, high thermal conductivity,
high dielectric constant and resistance
4. About ZMKJ Our Factory
4. Our products in fact
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited? A: Our MOQ: 5pcs Q3: What’s the lead time?
A: Sample :2-3 days.Mass production: 10-30 days.
Q4: How do you ship the goods and how long does it take?
A: We usually ship goods by UPS,FEDEX,TNT by FOB. It usually takes 3-5 days to arrive.
Q5: Do you offer guarantee for your products?
A: After test them if not pass test,you can return the goods at any time, we will re-offer you again
and also bear shipping fee.
Q6: Do you accept OEM?
A: We have our own brand-metalaser. OEM is also acceptable.
Q7:What is a sapphire rod?
A:A sapphire rod is a cylindrical form of synthetic sapphire, which is a crystalline form of aluminum oxide (Al₂O₃). Sapphire rods are known for their exceptional hardness, second only to diamond, and their resistance to high temperatures, chemical corrosion, and electrical insulation. These rods are often used in applications that require durability and stability under extreme conditions, such as in optics, lasers, high-temperature furnaces, and scientific instrumentation. They can also be used in precision machining, bearings, and medical devices due to their mechanical strength and biocompatibility.
Would you like to know more about specific applications of sapphire rods?
