Product Details
Place of Origin: CHINA
Brand Name: zmkj
Model Number: GaN-templates
Payment & Shipping Terms
Minimum Order Quantity: 5pc
Price: by case
Packaging Details: single wafer case in 100-grade cleaning room
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T
Material: |
GaN Epi On Sapphire Carrier |
Method: |
HVPE |
Size: |
2inch |
Thickness: |
430um |
Industry: |
LD，led，laser Device，detector， |
Surface: |
Single Side Polished |
Material: |
GaN Epi On Sapphire Carrier |
Method: |
HVPE |
Size: |
2inch |
Thickness: |
430um |
Industry: |
LD，led，laser Device，detector， |
Surface: |
Single Side Polished |

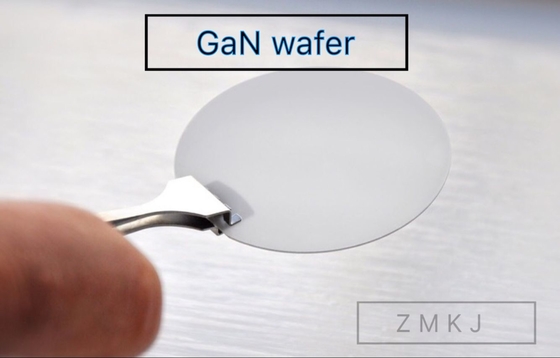

2inch GaN substrates template,GaN wafer for LeD,semiconducting Gallium Nitride Wafer for ld,GaN template, mocvd GaN Wafer,
III-Nitride(GaN,AlN,InN)Forbidden band width (light emitting and absorption) cover the ultraviolet,
visible light and infrared.GaN can be used in many areas such as LED display, High-energy Detection
and Imaging,Laser Projection Display, Power Device, etc.
Specifications:
2” GaN Templates
|
Item |
GaN-T-N |
GaN-T-S |
|
Dimensions |
Ф 2” |
|
|
Thickness |
15 μm, 20 μm, 30 μm, 40 μm |
30 μm, 90 μm |
|
Orientation |
C-axis(0001) ± 1° |
|
|
Conduction Type |
N-type |
Semi-Insulating |
|
Resistivity(300K) |
< 0.05 Ω·cm |
>106 Ω·cm |
|
Dislocation Density |
Less than 1x108 cm-2 |
|
|
Substrate structure |
|
|
|
Useable Surface Area |
> 90% |
|
|
Polishing |
Standard: SSP Option: DSP |
|
|
Package |

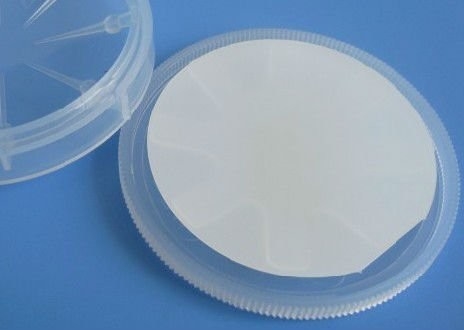

Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere. |
|
-FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF by FOB.
Q: What's the delivery time?
(1) For the standard products such as 2inch 0.33mm wafer.
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
Q: How to pay?
100％T/T In advance, Paypal, West Union, MoneyGram,
