2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material

Products - Gallium Nitride Wafer
  • High Light

    gan substrate

    ,

    gan template

  • Material
    GaN Single Crystal
  • Method
    HVPE
  • Size
    10x10mm, 5x5mm
  • Thickness
    350um
  • Industry
    LD，led，laser Device，detector，
  • Surface
    Sing Or Double Side Poliseed
  • Grade
    For LD
  • Type
    Non-Polar Freestanding GaN Substrates
  • Place of Origin
    CHINA
  • Brand Name
    zmkj
  • Model Number
    GaN-non-polar
  • Minimum Order Quantity
    1pc
  • Price
    by case
  • Packaging Details
    single wafer case in 100-grade cleaning room
  • Delivery Time
    2-4weeks
  • Payment Terms
    L/C, T/T

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material

  • 2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material
  • 2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material
  • 2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material
  • 2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material
  • 2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material
Get Price Contact Now

2inch GaN substrates template,GaN wafer for LeD,semiconducting Gallium Nitride Wafer for ld,GaN template, mocvd GaN Wafer,Free-standing GaN Substrates by Customized size,small size GaN wafer for LED, mocvd Gallium Nitride wafer 10x10mm,5x5mm, 10x5mm GaN wafer,Non-Polar Freestanding GaN Substrates(a-plane and m-plane)



GaN  Wafer Characteristic

Product  Gallium nitride (GaN)  substrates
Product Description: Saphhire GaN template is presented Epitxial hydride vapor phase epitaxy (HVPE) method. In the HVPE process, the acid produced by the reaction GaCl, which is in turn reacted with ammonia to produce gallium nitride melt. Epitaxial GaN template is a cost-effective way to replace gallium nitride single crystal substrate.
Technical parameters:
Size 2 "round; 50mm ± 2mm
Product Positioning C-axis <0001> ± 1.0.
Conductivity type N-type ＆ P-type
Resistivity R <0.5Ohm-cm
Surface treatment (Ga face) AS Grown
RMS <1nm
Available surface area > 90%
Specifications:



GaN epitaxial film (C Plane), N-type, 2 "* 30 microns, sapphire;

GaN epitaxial film (C Plane), N-type, 2 "* 5 microns sapphire;

GaN epitaxial film (R Plane), N-type, 2 "* 5 microns sapphire;

GaN epitaxial film (M Plane), N-type, 2 "* 5 microns sapphire.

AL2O3 + GaN film (N-type doped Si); AL2O3 + GaN film (P-type doped Mg)

Note: according to customer demand special plug orientation and size.
Standard Packaging: 1000 clean room, 100 clean bag or single box packaging

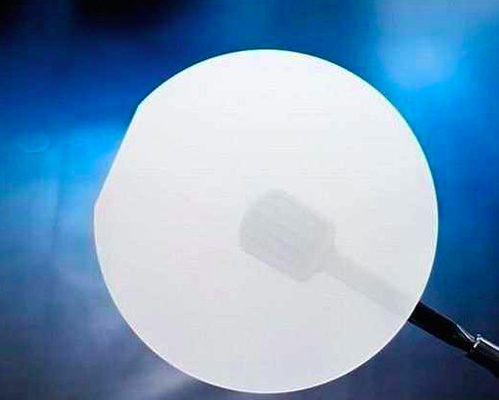

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material 0

Application

GaN can be used in many areas such as LED display, High-energy Detection and Imaging,
Laser Projection Display, Power Device, etc.

  • Laser Projection Display, Power Device, etc.
  • Date storage
  • Energy-efficient lighting
  • Full color fla display
  • Laser Projecttions
  • High- Efficiency Electronic devices
  • High- Frequency Microwave Devices
  • High-energy Detection and imagine
  • New energy solor hydrogen technology
  • Environment Detection and biological medicine
  • Light source terahertz band

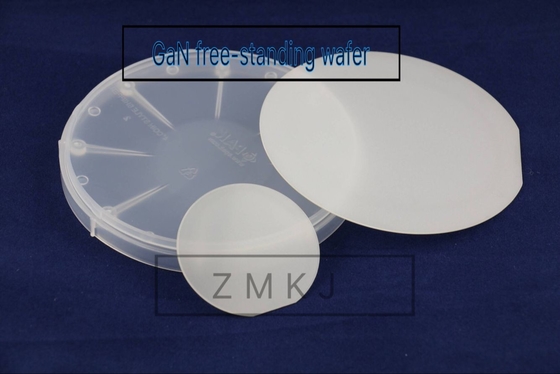

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material 1

Specifications:



GaN Template specification

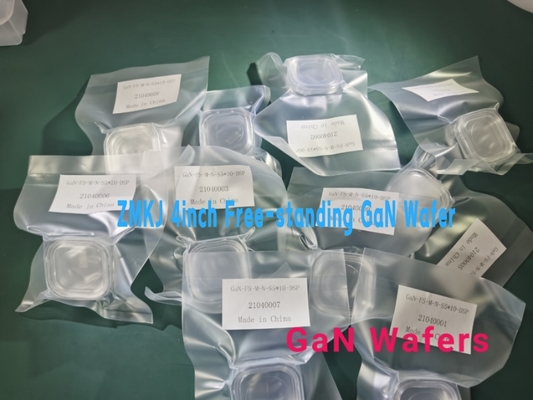

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material 2


2~4inch Free-standing GaN Specification file
Item GaN-FS-C-U-C50 GaN-FS-C-N-C50 GaN-FS-C-SI-C50
 Dimensions e 50.8 mm ± 1 mm
 Thickness 350 ± 25 pm
 Useable Surface Area > 90%
Orientation C-plane (0001) off angle toward M-Axis 0.35° ± 0.15°
 Orientation Flat (1-100) ±0.5°, 16.0 ±1.0 mm
Secondary Orientation Flat (11-20) ±3°, 8.0 ±1.0 mm
TTV(Total Thickness Variation) < 15 pm
BOW < 20 pm
 Conduction Type N-type N-type Semi-Insulating (Fe-doped)
 Resistivity(3O0K) < 0.1 Q・cm < 0.05 Q・cm >106 Q・cm
Dislocation Density From 1x105 cm-2 to 3x106 cm-2
 Polishing Front Surface: Ra < 0.2 nm (polished); or < 0.3 nm (polished and surface treatment for epitaxy)
Back Surface: 0.5~1.5 pm; option: 1~3 nm (fine ground); < 0.2 nm (polished)
Package Packaged in a class 100 clean room environment, in single wafer containers, under a nitrogen atmosphere.

size  4”GaN Substrates
Item GaN-FS-N
Dimensions size Ф 100.0mm ± 0.5mm
Thickness of Substrate 450 ± 50 µm
Orientation of Substrate C-axis(0001) toward M-axis 0.55± 0.15°
Polish SSP Or DSP
Method HVPE
BOW <25UM
TTV <20um
Roughness <0.5nm
resistivity 0.05ohm.cm
Dopant Si
(002) FWHM&(102) FWHM
 <100arc
Quantity and maximum size of holes
and pits
Production grade ≤23@1000 um;Research grade ≤68@1000 um
Dummy grade ≤112@1000 um
Useable area P level>90%; R level>80%: Dlevel>70%(edge and macro defects exclusion)



  Non-Polar Freestanding GaN Substrates(a-plane and m-plane)
Item GaN-FS-a GaN-FS-m
Dimensions 5.0mm×5.5mm
5.0mm×10.0mm
5.0mm×20.0mm
Customized Size
Thickness 330 ± 25 µm
Orientation a-plane ± 1° m-plane ± 1°
TTV ≤15 µm
BOW ≤20 µm
Conduction Type N-type
Resistivity(300K) < 0.5 Ω·cm
Dislocation Density Less than 5x106 cm-2
Useable Surface Area > 90%
Polishing Front Surface: Ra < 0.2nm. Epi-ready polished
Back Surface: Fine ground
Package Packaged in a class 100 clean room environment, in single wafer containers, under a nitrogen atmosphere.

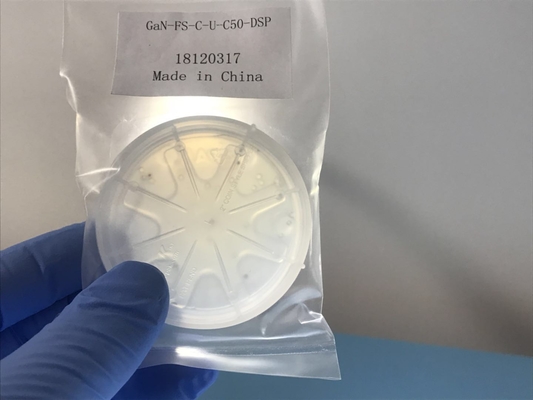

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material 3

2.ZMKJ  provides GaN wafer to microelectronics and optoelectronics industry in diameter 2" to 4".

GaN epitaxial wafers are grown by HVPE or MOCVD method , can be used as an ideal and excellent substrate for high frequency , high speed and high power device . Currently we can offer GaN epitaxial wafer for fundamental research and device product development use, including GaN template , AlGaN

and InGaN . Besides standard GaN based wafer,you are welcome to discuss your epi layer structure .

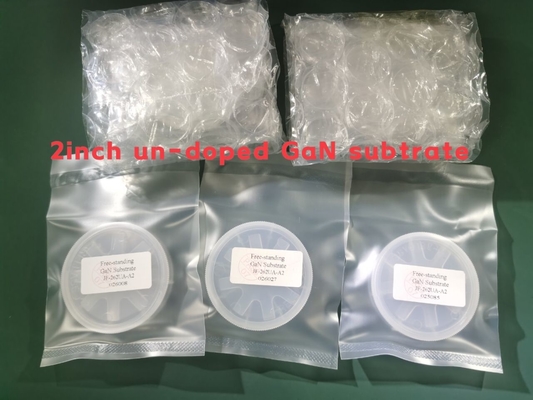

2-4inch HVPE GaN Wafer Customized Size Free - Standing GaN Single Crystal Material 4
