Square 10 X10 Mm Sapphire Wafer 0.5mm Thickness Al2O3 Single Crystal Lens

Product Details

Place of Origin: china

Brand Name: zmsh

Model Number: parts-020

Payment & Shipping Terms

Minimum Order Quantity: 30pcs

Price: by case

Packaging Details: by customized case

Delivery Time: 7-30days

Supply Ability: 10000pcs/months

Get Best Price
Highlight:

sapphire optics

,

custom sapphire glass

Material:
99.999% Al2O3
Industry:
Led,optical Glass,
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
Color:
White Or Red Or Blue
Color:
White Or Red Or Blue
Vision Light Transmissivity:
85%
Vision Light Transmissivity:
85%
Advantagement:
High Hardness9.0,wear Resistance,
Advantagement:
High Hardness9.0,wear Resistance,
Type:
Single Crystal
Type:
Single Crystal
Size:
10x10mm,5x5mm,20x20mm,10x20mm,10x5mmt
Size:
10x10mm,5x5mm,20x20mm,10x20mm,10x5mmt
Material:
99.999% Al2O3
Industry:
Led,optical Glass,
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
Color:
White Or Red Or Blue
Color:
White Or Red Or Blue
Vision Light Transmissivity:
85%
Vision Light Transmissivity:
85%
Advantagement:
High Hardness9.0,wear Resistance,
Advantagement:
High Hardness9.0,wear Resistance,
Type:
Single Crystal
Type:
Single Crystal
Size:
10x10mm,5x5mm,20x20mm,10x20mm,10x5mmt
Size:
10x10mm,5x5mm,20x20mm,10x20mm,10x5mmt
Square 10 X10 Mm Sapphire Wafer 0.5mm Thickness Al2O3 Single Crystal Lens

Small square sapphire substrates, 10x10mm sapphire wafer, 5x5mmsapphire substrtes,sapphire glass lens , sapphie optical lens, watch glass lens by sapphire, sapphire rough lens​,sapphire glass parts for bearing, sapphire bearing,sapphire convex lens,Al2O3 single crystal lens by customized



1.0 sapphire introduce



Property
Specification
Thickness
0.5-50mm
W/L: 5x5mm,10x10mm,10x5mm,20x20mm
Size tolerance
+0.0/-0.25
Edge Finish
Ground and beveled
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/4 @ 633 nm λ/10, λ/2, λ
Parallelism
≤3 arc min (≤0.9 mrad)
Clear Aperture
>80% of central diameter
Orientations

(0001)C-Plane, A-plane(10-10),

  M-plane,         R-plane

Young's modulus
3.4 x 1011 N m-2
Thermal Limit
22 W m-1 K-1
Thermal expansion coefficient
8.4 x 10-6 K-1



2. Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball



No.1-12 by turn is :

color Sapphire watch glass->step lens--> rod lens--InP wafer--> 4inch windows--> MgO WAFER

---->3inch sapphire ingot--->rod lens-->8inch sapphire optical -->sapphire polished watch lens-->

 ruby parts-->sapphire phone rough wafers

Features:

1. OEM Size and Design. Any shape is ok.
2. CE&Rohs Material. Europe, Japan,China, depend on your requirements.
3. We can provide engineer drawing.
4. Printting logo is ok. Camera Lens
5. Fast delivery date.
6. High quality

Advantages:

+ Sonicleaning,silk-screen printing and electroplating in cleanroon;
+ 100% QC inspection before packing;
+ Without defects on our products,high purity;
+ Vacuum packing;
+ Germany technology,Chinese price;

3.0 Products

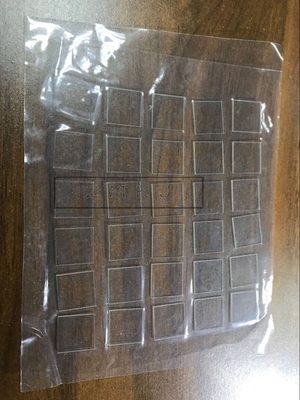

Square 10 X10 Mm Sapphire Wafer 0.5mm Thickness Al2O3 Single Crystal Lens 0

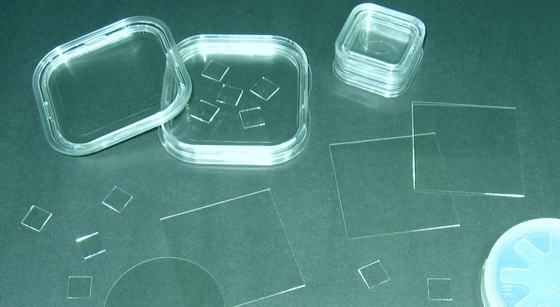

Square 10 X10 Mm Sapphire Wafer 0.5mm Thickness Al2O3 Single Crystal Lens 1

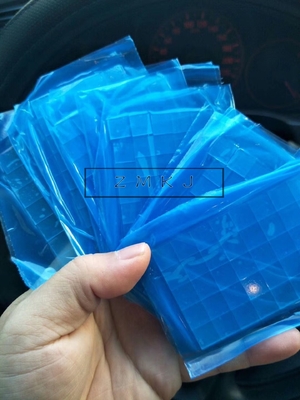

Square 10 X10 Mm Sapphire Wafer 0.5mm Thickness Al2O3 Single Crystal Lens 2


FAQ



1. Q: Where is your company located? How can I visit there?
A: Our factory is located in wuxi city from shanghai 1h of driving.
2. Q: Can I get sample and how long will it take?
A: Yes. We can supply sample by FOB delivery.

About 7days after receiving the payment, we will send it out.
3. Q: What's the MOQ?
A: Our MOQ is 10 pieace. of coure by case by size.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for logo, design, package, carton mark,

your language manual etc. are very welcome.
5. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
6. Q: What is the payment terms?
A:100% T/T in advance.
