Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument
  • Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument
  • Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument
  • Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument
  • Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument

Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument

Place of Origin china
Brand Name zmkj
Model Number block-001
Product Details
Materials:
99.999% Al2O3
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement:
High Hardness9.0,wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance:
85%
Color:
Red And White
Type:
Single Crystal
High Light:

sapphire tube

,

sapphire windows

Product Description

six side sapphire optical block for light guide,Al2O3 single crystal glass lens,optical glass ingots by sapphire Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



About Sapphire light guide block

it is used for Hair reduction, skin rejuvenation and certain procedures like birth mark removal.



Treatment Theory of laser diode lens

  The development of modern laser hair removal treatment machine, application and development of selective photothermolysis theory is proposed. Based on this theory, if the target for a particular wavelength of light with good absorbency, therapeutic target for the time equal to or less than the thermal relaxation time, the heat will be generated after the light confined within the target goal. So, just select the appropriate laser wavelength, pulse energy density and illumination can be accurately without causing damage to the hair follicle damage to adjacent tissue.



Research to date suggest that in normal human hair follicles, there are two-part structure comprising pluripotent cells, and is the basis for hair follicle regeneration. One is located on top of the ball of hair bulge, about 1.0 ~ 1.5mm subcutaneously at; another is the hair bulb, located at the subcutaneous 3 ~ 7mm. Therefore, to achieve permanent hair removal, laser should also undermine the structure of the two parts.


 So IPL filter or light guides are the key optical element for IPL (Intense Pulsed Light) machine, which
filters the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser for hair removal, vascular and acne treatment.

4inch C-axis sapphire wafer for led epi-ready,optical  glass lens for  covering by sapphire,sapphire optical windows



What is sapphire ?

Single crystal sapphire possesses a unique combination of excellent optical, physicaland chemical properties. The hardest of the oxide crystals, sapphire retains its high strength at high temperatures,

has good thermal properties and excellent transparency. It is chemically resistant to common acids and alkali at temperatures up to 1000 °C as well as to HF below 300 °C . These properties encourage its wide use in hostile environments where optical transmission in the range from the vacuum ultraviolet to the near infrared is required. Sapphire is anisotropic hexagonal crystal. Its properties depend on crystallographic direction (relative to the optical C-axis).



So what superiority sapphire have??

1- Thinner and Stronger than Standard Glass Windows

2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance



Materials characteristics
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120



Sapphire Windows general specifications

length/width 1x1mm~400X400mml
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)



 sample in details

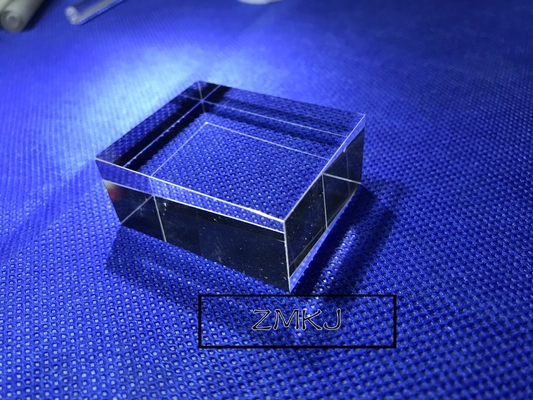

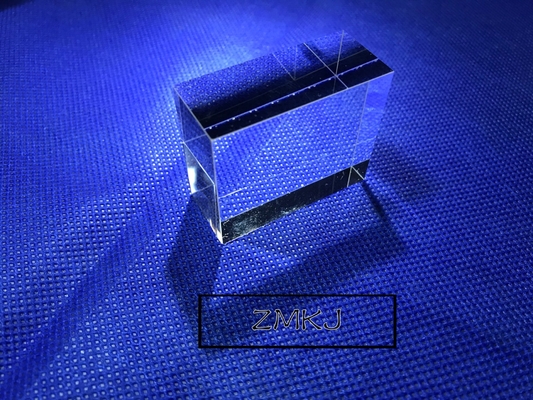

Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 1Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 2

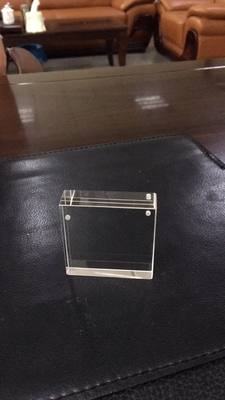

Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 3

We can supply professional customized service of other sapphire lens and provide cooperation

and support of new product development and technology appliance.

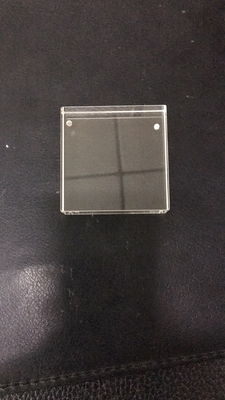

Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 4
How about our factory process?
Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 5

6.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc. by FOB

Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.

Package &Delivery

Hexahedron Sapphire Parts Optical Light Guide Block Lens For Laser Cosmetic Instrument 6
