150mm length Sapphire Tube Wear Resistance Customized Design And Shape

150mm length Sapphire Tube Wear Resistance Customized Design And Shape

  • High Light

    sapphire bearings

    ,

    sapphire windows

  • Materials
    99.999% Al2O3
  • Application
    Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
  • Advantagement
    High Hardness9.0,wear Resistance,
  • Visible Light TransmittanceVisible Light Transmittance
    85%
  • Color
    Red And White
  • Type
    Sapphire Single Crystal Tube
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Model Number
    tube-050
  • Minimum Order Quantity
    10pcs
  • Price
    by case by FOB
  • Packaging Details
    PET Films in case box
  • Delivery Time
    10-30DAYS
  • Supply Ability
    1000pcs

150mm length Sapphire Tube Wear Resistance Customized Design And Shape

sapphire optical lens, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods

About Sapphire Feature

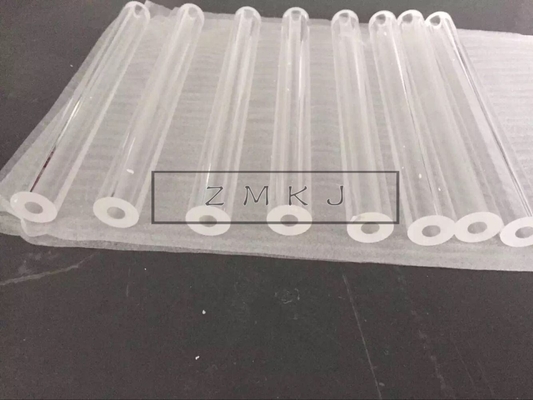

+ can be customized as design size,shape,bevel chamfer,tolerance,artwork;150mm length Sapphire Tube Wear Resistance Customized Design And Shape 0

+ have normal size in stock as like led substrates ;

+ Widely uesd for ,optical window,lens,
   watch coverglass militry etc;

+ The material is synthetic sapphire(hardness 9H) ;

Visible light transmittanceVisible light transmittance 85% without coating


   Sapphire is one of the hardest materials, and possesses very good transmission during the range
of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.
The sapphire wafercrystal window is intensively applied in high-tech fields.

Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.

Property

               Specification

Thickness

                 0.5-50mm

Size tolerance

                       0

Edge Finish

           Ground and beveled

Surface Quality

           40-20 scratch-dig

Surface Flatness

            λ/4 @ 633 nm

Parallelism

          ≤3 arc min (≤0.9 mrad)

Clear Aperture

       >80% of central diameter

Hardness (Knoop)

               1370 kg mm-2

Young's modulus

             3.4 x 1011 N m-2

Thermal Limit

              22 W m-1 K-1

Thermal expansion coefficient

               8.4 x 10-6 K-1


Our company sapphire single crystal are made by KY method,we can supply sapphire led ingot
(2inch-8inch),sapphire wafer(1sp,2sp lapped),sapphire wafer block,all kinds of sapphire optical
cover window(applied to optical equipment,industry camera,cell phone watches and other special
 optical components). So we can supply professional customized service in time and provide
cooperation and support of new product development and technology appliance,products as like

:

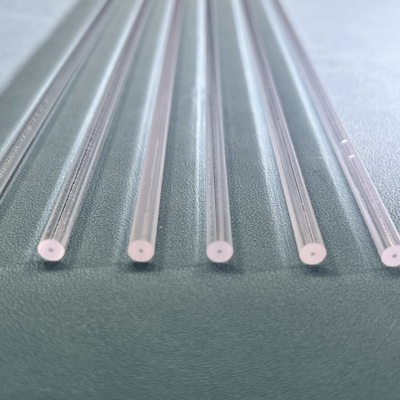

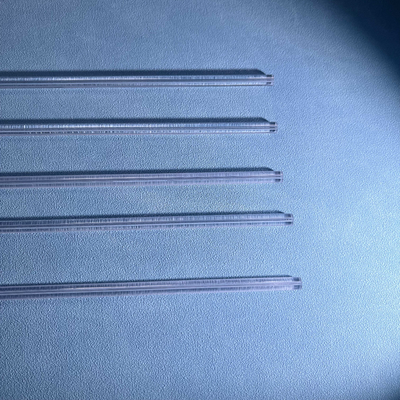

150mm length Sapphire Tube Wear Resistance Customized Design And Shape 1150mm length Sapphire Tube Wear Resistance Customized Design And Shape 2

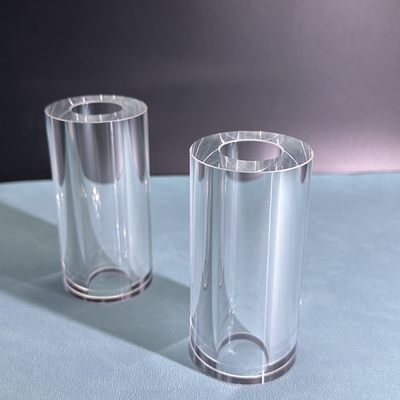

150mm length Sapphire Tube Wear Resistance Customized Design And Shape 3

commen specifications we can provide in sapphire optical lens filed.

Specifications Our manufacturing capacity
Diameter(outer) 0.1--350mm
Thickness 0.1--200mm
Length 0.1--400mm
Width 0.1--400mm
TTV 0-30um
Bow ±30um
Warp <0.01
Side damage <0.01
Roughness <0.3nm
S/D 20/10--80/50
Thinest Wall thickness 0.1mm
Chamfering According to the customer requirement
Crystal Orientation ±0.01°
Vertical degree 5′
parallelism 5′
Surface line/Flatness 1/10L-10L
Transmittance 85%


Packing &Delivery

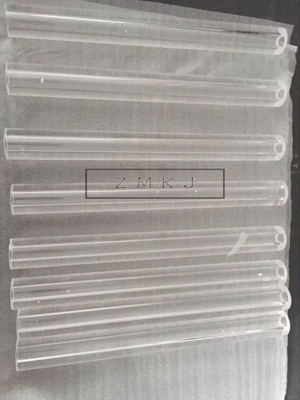

150mm length Sapphire Tube Wear Resistance Customized Design And Shape 4
