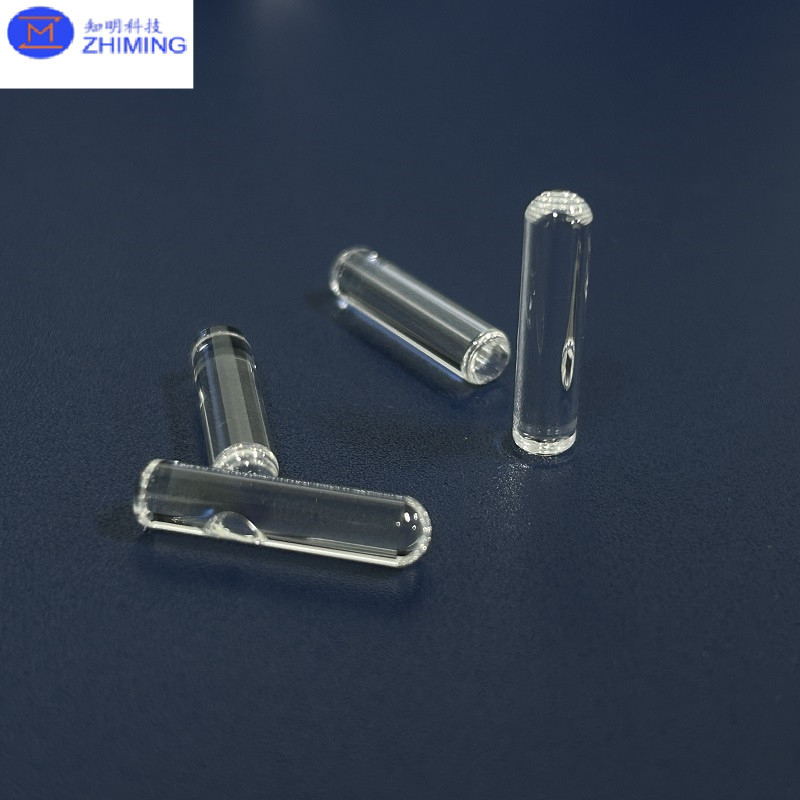

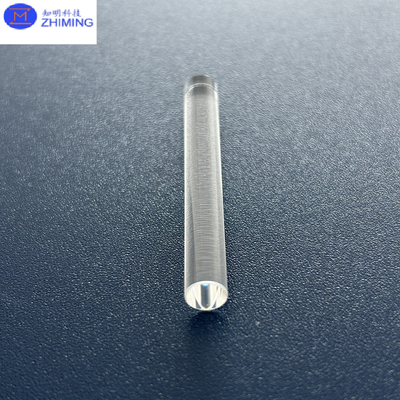

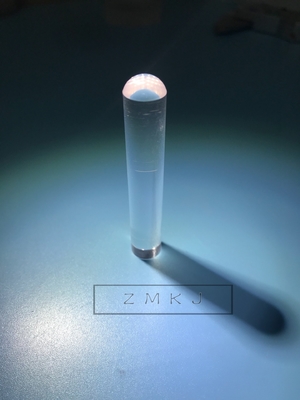

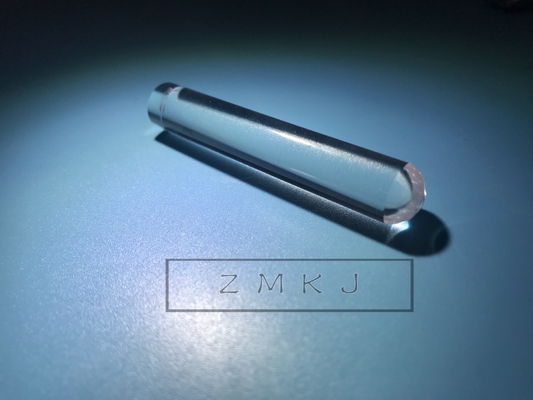

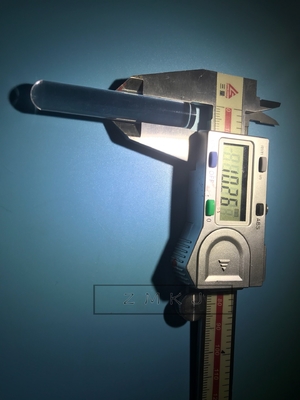

High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide

Product Details

Place of Origin: china

Brand Name: zmkj

Model Number: cylinder-024

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: by case

Packaging Details: PET Films

Delivery Time: 20DAYS

Get Best Price
Highlight:

sapphire bearings

,

sapphire tube

Materials:
99.999% Al2O3
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement:
High Hardness9.0,wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance:
85%
Color:
Red And White
Type:
Single Crystal
Shape:
Rod And Cylinder
Surface:
Polished
Materials:
99.999% Al2O3
Application:
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing
Advantagement:
High Hardness9.0,wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance:
85%
Color:
Red And White
Type:
Single Crystal
Shape:
Rod And Cylinder
Surface:
Polished
High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide

sapphire optical cylinder , Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire , polished sapphire optical rods



where is sapphire from?

Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, alumina,

and single crystal Al2O3. Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense. The combination of favourable chemical, electrical, mechanical, optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications, sapphire is the best choice in comparison with other synthetic single-crystals.

Main properties of sapphire:

Chemical formula Al2O3
Crystal class Hexagonal system, rhomboidal class 3m
Lattice constants, A a=4.785, c=12.991
Density, g/cm3 3.98
Melting point, °K 2303
Hardness Knoop(daN/mm2): 1800 parallel to C-axis, 2200 perpendicular to C-axis, Mohs: 9
Optical transmission range, µm 0.17 - 5.5
Refractive index at 0.532 µm n0=1.7717, ne=1.76355
Water absorption nil
Young Modulus, Gpa 345
Shear Modulus, Gpa 145
Bulk Modulus, Gpa 240
Bending Modulus (Modulus of Rupture), Mpa 420 at 20°C, 280 at 500°C
Elastic Coefficient C11=496, C12=164, C13=115, C33=498, C44=148
Poisson ratio 0.25-0.30
Friction Coefficient 0.15 on steel, 0.10 on sapphire
Tensile strength, MPa 400 at 25°, 275 at 500°, 345 at 1000°
Flexural strength, daN/mm2 35 to 39
Compressive strength, GPa 2.0
Young’s modulus E, daN/mm2 3.6 x 104 to 4.4 x 104
Specific heat, J/(kg x K) 105 at 91°K, 761 at 291°K
Thermal coefficient of linear expansion, K-1,at 323K 6.66 x 10-6 parallel to optical axis, 5 x 10-6 perpendicular to optical axis
Thermal conductivity, W/(m x K) at 300K 23.1 parallel to optical axis, 25.2 perpendicular to optical axis
Resistivity, Ohm x cm 1016 (25°), 1011 (500°), 106 (1000°)
Dielectric constant 11.5 (103 - 109 Hz, 25°) parallel to C-axis, 9.3 (103 - 109 Hz, 25°) perpendicular to C-axis
Dielectric strength, V/cm 4 x 105
Loss tangent 1 x 10-4
Solubility
-in water
-in HNO3,H2SO4, HCl, HF
-in alcalis
-in melts of metals Mg, Al, Cr, Co, Ni, Na, K, Bi, Zn, Cs

insoluble
insoluble to 300°C
insoluble to 800°C
insoluble to 800-1000°C
g -radiation stability No change in transmission above 2.5 mm after exposure to 107 Rads. No visible coloration after exposure to 108 Rads/hr for 60 minutes at - 195°C
Proton radiation stability No change in transmission below 0.3 µm after exposure to 1012 proton/cm2 total dose
Chemical resistance

Sapphire is highly inert and resistant to attack in most process environments including hydrofluoric acid and the fluorine plasma applications commonly found in semiconductor wafer processing (NF3, CF4)



what is advantagement of sapphire?

1-Thinner and Stronger than Standard Glass Windows
2-Transmits Wavelengths Ranging From UV to Mid-Infrared

3-Features Extreme Surface Hardness and Chemical Resistance



  • High Hardness: Sapphire rods are extremely hard and durable, second only to diamond on the Mohs scale, making them resistant to scratches and wear.
  • Excellent Thermal Conductivity: Sapphire rods efficiently dissipate heat, making them ideal for high-temperature applications or environments where thermal management is crucial.
  • High Optical Clarity: Sapphire rods are optically transparent over a broad range of wavelengths (UV to IR), which makes them suitable for optical components like lenses and windows.
  • Chemical Resistance: Sapphire is chemically inert, offering resistance to most acids, alkalis, and solvents, making sapphire rods ideal for use in harsh chemical environments.
  • Electrical Insulation: Sapphire rods are excellent electrical insulators, making them useful in electronic or semiconductor applications where electrical isolation is necessary.
  • High Mechanical Strength: Sapphire rods have high tensile and compressive strength, making them reliable in demanding mechanical conditions.
  • Corrosion Resistance: Sapphire’s resistance to corrosion adds to its durability, even under challenging conditions such as extreme temperatures or exposure to corrosive substances.



High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide 0

what is applications for sapphire ?

Sapphire substrates / wafers: EPI-polished, optically polished, lapped or as-cut sapphire disks, windows, substrates, blanks as well as epitaxial structures “silicon-on-sapphire” (SOS) .

High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide 1



commen specification for sapphire optical lens

Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm to +/-0.01mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.01mm
Surface quality (scratch & dig) 60/40, 40/20 or better20/10
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)



3.0 sample



High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide 2

High Performance System Sapphire Parts Crystal Optical Cylinder For Light Guide 3





4.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.
