Fe+ doped 6INCH lINbO3 Lithium Tantalate Wafers LiTaO3 Single Crystal Materials

Fe+ doped 6INCH lINbO3 Lithium Tantalate Wafers LiTaO3 Single Crystal Materials

  • High Light

    lithium niobate wafer

    ,

    litao3 wafer

  • Materials
    LiTaO3 Single Crystal
  • Industry
    Semiconductor Wafer,saw Wafer,optical Wafer
  • Application
    5G,SAW Device,optical Glass,
  • Color
    Yellow, Red,black
  • Customized
    Ok
  • Size
    6inch
  • Thickness
    350um,500um
  • Place of Origin
    CHINA
  • Brand Name
    zmkj
  • Model Number
    LT-6inch
  • Minimum Order Quantity
    25pcs
  • Price
    by case
  • Packaging Details

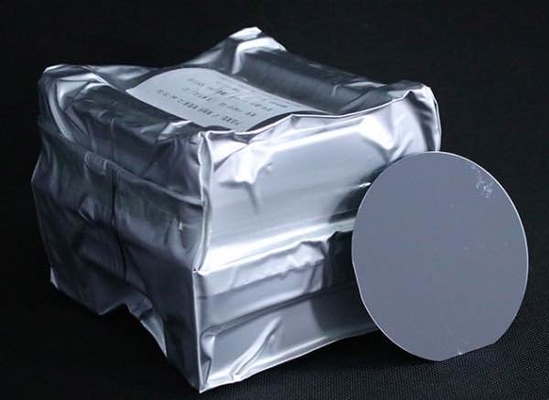

    PET Films or 25pcs casstle case by 100 grade cleaning room
  • Delivery Time
    15-30days
  • Supply Ability
    5000pcs/month

Fe+ doped 6INCH lINbO3 Lithium Tantalate Wafers LiTaO3 Single Crystal Materials

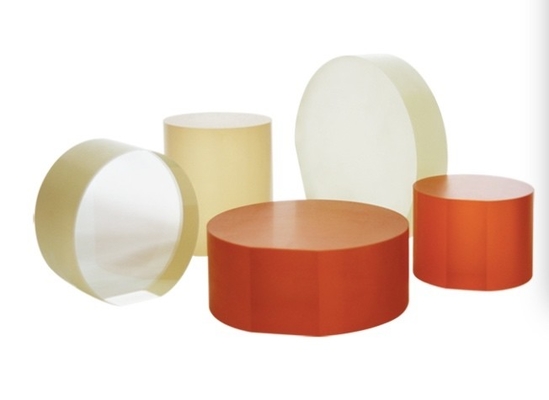

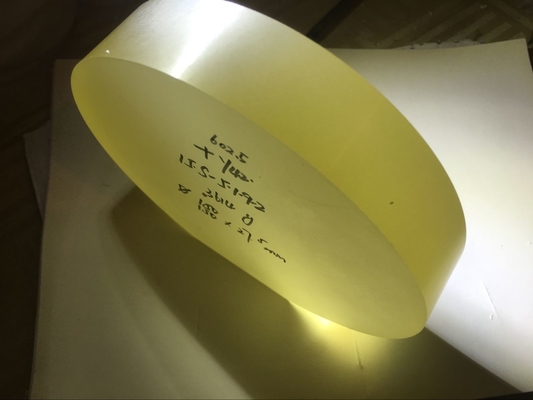

Lithium Tantalate crystal 6inch dia150mm LiTaO3 LT wafer ingot, lithium niobate crystal LiNbO3 substrates wafer for saw

Piezoelectric Crystal Lithium Tantalate LT LiTaO3 crystals
Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.

PropertiesLiTaO3(LT)
Type of MaterialSingle Crystal
Crystal StructureTrigonal,a = 5.154, c = 13.784Å
Melting Point1650℃
Curie Temperature607℃
Transmission Range400 – 5000 nm
Absorption edge270nm
Absorption loss< 0.15 %/cm @ 1064 nm
Refractive Indexno=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density7.45g/cm3
Thermal Conductivity8.78x 10-7 m2/sec
Optical homogeneity~10-5
Hardness (Mohs)5
Elastic CoefficientCE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constantε11/ε0 52.7
ε33/ε0 44.5
Solubility in Waterinsoluble in water
NLO Coefficientsd33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficientsr31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold2 MW/cm2@532nm
Standard Diameter

dia150x50mm



Feature Piezoelectric Crystal LiTaO3 crystals

Excellent photoelectric property
High Damage Threshold
High Curie Temperature


Specification for Saw grade


Orientation

36°Y-cut±0.2°42°Y-cut±0.2°X-cut±0.2°
Diameter100±0.3mm ,150±0.5mm
1st OF Flat

22±2mm,32±2mm,47.5±2mm
perpendicular to X-axis±0.2°

22±2mm,32±2mm,47.5±2mm perpendicular to 112°Y±0.2°
2st OF Flat10±2mm CW270°from 1st OF10±2mm CW315°from 1st OF10±2mm CW315° Or 270°from 1st OF
Thickness200~250±25um for3-4inch,,300-350±25um,   500±25um(6inch)
Front surface"+",Ra<1nm,
Back surfaceGC#1000, GC#2000 Lapped
LTV<1um,at5x5mm zone
BOW≤25um


Piezoelectric Crystal LiTaO3 crystals

SpecificationConventionalHigh Precision
MaterialsLiTaO3(LT)LiTaO3(LT)
OrientationX-112°Y,36°Y,42°Y±0.5°X-112°Y,36°Y,42°Y±0.5°
Parallel30″10''
Perpendicular10′5'
surface Quality40/2020/10
Wavefront Distortion

λ/4@632nm


λ/8@632nm


Surface Flatness

λ/4@632nm


λ/8@632nm


Clear Aperture>90%>90%
Chamfer<0.2×45°<0.2×45°
Thickness/Diameter Tolerance±0.1 mm±0.1 mm
Maximum dimensionsdia150×50mmdia150×50mm
