Test Grade Monocrystalline Silicon Wafer , High Resistivity Silicon Wafer

Place of Origin china shanghai
Brand Name zmkj
Model Number si-6inch
Minimum Order Quantity 25pcs
Price by case
Packaging Details 25pcs casstle in 100-grade cleaning room
Delivery Time 5-30days
Product Details
Material Si Single Crystal Industry IC Semicondctor Wafer,solor ,optical Glass
Application IC, Solor Wafer,optical Lens, Size Dia150mm
Method Cz,Fz Type Dopant: P(B), N(P)
Grade Prime Grade/test Grade
High Light

semiconductor wafer


polished silicon wafer

Leave a Message
Product Description

semiconductor wafer 6inch prime sillicon wafer, sillicon optical lens, IC sillicon substrates  , poly sillicon wafer,Semiconductor 3' inch silicon wafer, single crystal ,2inch, 3inch,4inch,5inch,6inch,8inch,12inch  silicon wafer, single side polished silicon wafer
1. Description


Dope type no dope doped B doped P
Type              I     P   N
resistivity Ø 1000Ωcm 10-3~40Ωcm 10-3~40Ωcm
E P D ≤100∕cm2 ≤100∕cm2 ≤100∕cm2
Oxygen content (∕cm3) ≤1~1.8×1018 ≤1~1.8×1018 ≤1~1.8×1018
Carbon content(∕cm3) ≤5×1016 ≤5×1016 ≤5×1016
Size 10×3m,10×5m,10×10mm,15×15mm,
Dia50.8mm,Dia76.2mm,Dia100mm  dia6-12inch
or by customized size
thickness 0.5mm,1.0mm or other
tolerance <±0.1mm
thickness tolerance <±0.015mm (or <±0.005mm)
surface 1sp or 2sp
orientation ±0.5°
orientation <100>,<110>,<111>
package 100grade in1000 grade cleaning room

we receive customized size by any type!
2. specification for 4-6inch size.

Name: 6Inch P-type 99.9999% Purity Price Silicon Wafer
Size 4"/5"/6"
Growth method CZ
Grade Prime grade
Diameter 100±0.4mm / 125±0.5mm / 150±0.5mm
Orientation <111>/<100>
Type N-type/P-type
Dopant P-type:Boron
Purity 11N(99.999999999%)
Oxygen Content ≤18 New PPMA
Carborn Content ≤1 New PPMA
Resistivity ≥0.001Ω·cm
Thickness ≥200um, or according to your requirement
Others TTV≤10um, Bow≤35um,Warp≤35um
Particles ≥0.3um@≤10PPW
Surface Frond side polished,back side etched.
MOQ 100pcs
Package Packed in cassette,and sealed in vacuum bag,25pcs/cassette.
Price According to your specification,especially resistivity and thickness

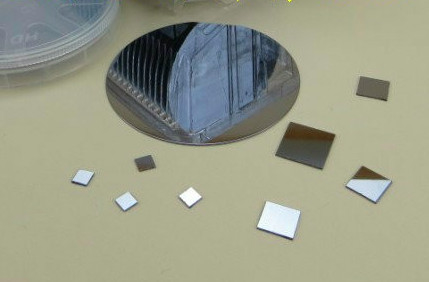

Test Grade Monocrystalline Silicon Wafer , High Resistivity Silicon Wafer 0

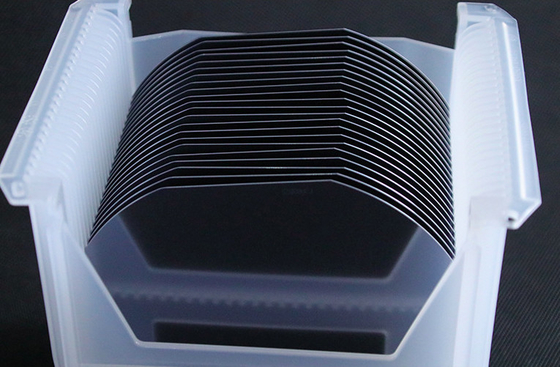

Test Grade Monocrystalline Silicon Wafer , High Resistivity Silicon Wafer 1
3 About our company
   SHANGHAI FAMOUS TRADE CO.,LTD. locates in the city of Shanghai, Which is the best city of China,
and our factory is founded in Wuxi city in 2014.
We specialize in processing a varity of materials into wafers, substrates and custiomized optical glass parts.components widely used in electronics, optics, optoelectronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.
It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputatiaon.

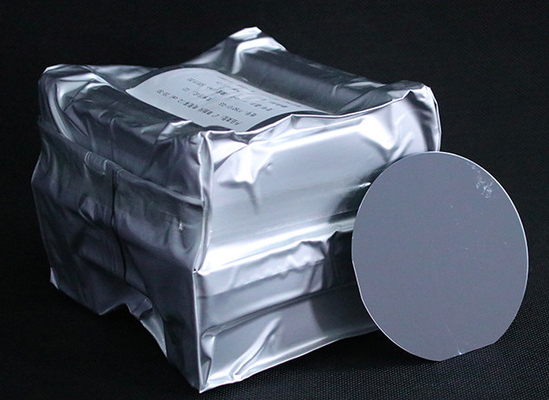

4. packing and delivery
Test Grade Monocrystalline Silicon Wafer , High Resistivity Silicon Wafer 2
-FAQ –

Q: Are you trading company or manufacturer ?

A: zmkj is a  trading company but have a  sapphire manufacturer and,
 as a  supplier of semiconductor materials  wafers for a wide span of applications.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD,
50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
