10X10mm Srtio3 Substrate Small Square Strontium Titanate For Optical Glass Window

Name: 10X10mm Srtio3 Substrate Small Square Strontium Titanate For Optical Glass Window
Brand: zmsh
SKU: ZnO
Rating: 5 (111 reviews)

Product Details

Place of Origin: china

Brand Name: zmsh

Certification: no

Model Number: ZnO

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: by case

Packaging Details: PET film in 100-grade cleaning room

Delivery Time: 1-4weeks

Supply Ability: 500pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                gaas wafer, indium arsenide wafer


Material:	LaAlO3 Single Crystal Substrates	Industry:	Semicondutor Wafer
Application:	Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates	Method:	CZ
Size:	10X10mm	Thickness:	0.5mm

Material:	LaAlO3 Single Crystal Substrates
Industry:	Semicondutor Wafer
Application:	Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates
Method:	CZ
Size:	10X10mm
Thickness:	0.5mm

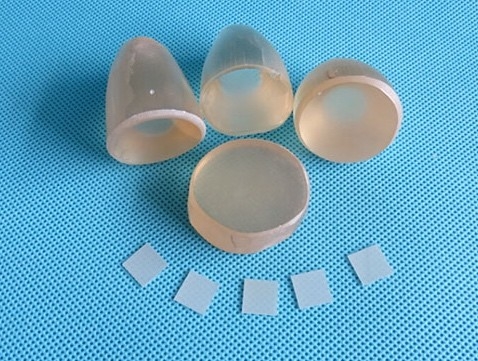

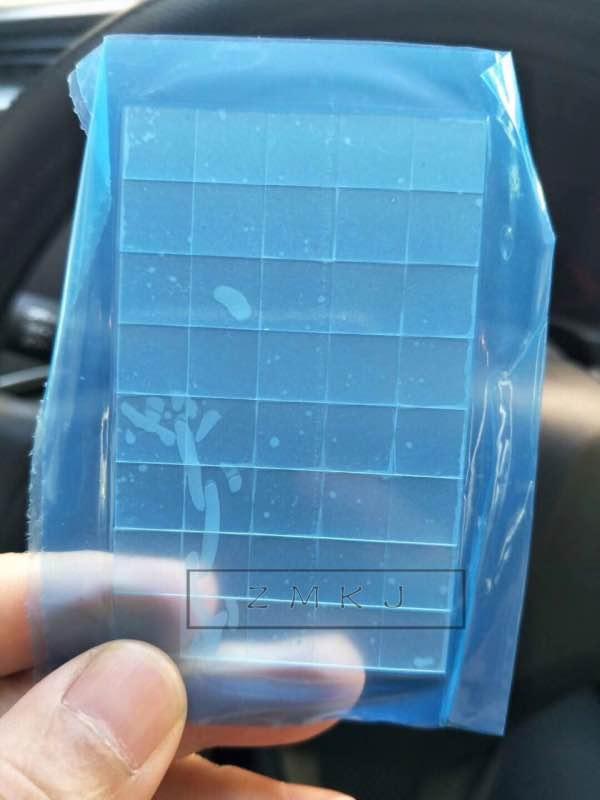

10X10mm Srtio3 Substrate Small Square Strontium Titanate For Optical Glass Window

SrTiO3 substrates,10X10mm small square Strontium titanate
SrTiO3 substrate,10x10 SrTiO3 wafer
--------------------------------------------------------------------------------------------------------------

General Properties
Strontium titanate (SrTiO3) is one of the most widely used high-temperature superconducting
single crystal substrate. It is well matched with the crystal lattice of YBaCuO7 and other
high-temperature superconducting materials, with no twin structure, good physical and
mechanical properties.
By useing a variety of the membrane technology (such as magnetic sputtering, pulsed laser
deposition,laser molecular beam epitaxy, etc.) a variety of high temperature superconducting
thin film(Y -, Bi -, La - system, etc.) can be get that are available to TCO acuity 90 ° K, JCO
acuity 106 a/cm2. SrTiO3 is also the preferred single crystal material for high temperature
superconducting junction technology (use of double crystal substrate or step-shaped substrate)
and substrate step - cutting and heat treatment at a specific Angle.

Product Name:

Strontium titanate (SrTiO 3) crystal substrate

Product Description:

SrTiO 3 perovskite crystal structure with a variety of good lattice matching material, which is a variety of high-temperature superconducting oxide thin film and the substrate material quality, but also widely used in special optical window and the highest quality sputtering target timber.HB company has an independent set of production line, from high-quality SrTiO3 powder, SrTiO3 single crystal polished to a variety of sizes epitaxial substrate for high-quality low-cost global provider of monocrystalline and SrTiO3 substrates.

Technical parameters:

Crystal orientation	<100>, <110>, <111>
Crystal structure	Cube
Lattice constant	a = 3.905Å
Growth method	Czochralski method
Mp	2080 °C
Density	5.122g/cm3
Mohs hardness	6.5 Mohs
Thermal expansion coefficient	9.4 × 10 -6 / °C
Permittivity	~ 300
Loss tangent	~ 5x10 -4 @ 300K, ~ 3 x10 -4 @ 77K
Color and Appearance	Transparent (sometimes under the annealed condition with a slight brown) No twinning
Chemical stability	Insoluble in water

Specifications:

Gauge
Epitaxial polishing a substrate <100>, <110>, <111> ± 0.5 o,single throw or double throw,
Ra <5 Å;φ30 × 0.5mm, φ1 "× 0.5mm, 10 × 10 × 0.5mm, 10 × 5 × 0.5mm.
20 × 20 × 0.5 mm Other sizes customizable
Note: You can provide special sizes according to customer needs and direction of the substrate.
