6 Inch 1.0mm Ceramic Substrate , Alumina Ceramic Plate For Semiconductor Processing

6 Inch 1.0mm Ceramic Substrate , Alumina Ceramic Plate For Semiconductor Processing

  • High Light

    silicon carbide ceramic

    ,

    alumina ceramic substrate

  • Material
    AlN Ceramic Substrates
  • Applications
    Ceramic Plates For Semiconductor Processing
  • Color
    White Or Red Or Blue
  • Size
    Customized Size
  • Purity
    98%
  • Place of Origin
    CHINA
  • Brand Name
    zmkj
  • Model Number
    AlN
  • Minimum Order Quantity
    20pcs
  • Price
    by case
  • Packaging Details
    25pcs cassette box
  • Delivery Time
    10-20days

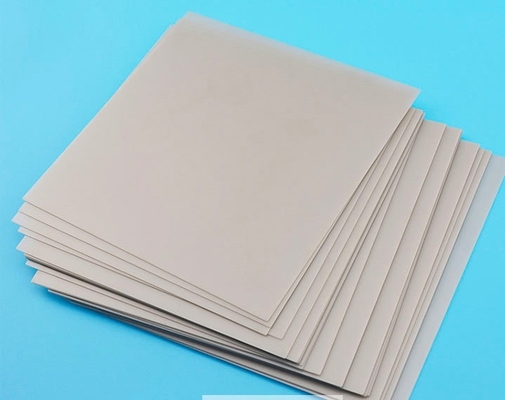

6 Inch 1.0mm Ceramic Substrate , Alumina Ceramic Plate For Semiconductor Processing

6inch 1.0mmAluminum Nitride AlN Ceramic Substrate, High Thermal Conductivity, Customized AlN Ceramic,6inch ceramic substrates



AlN Introduce

The aluminum nitride (AlN) ceramic has high thermal conductivity(5-10 times as the alumina ceramic),

low dielectric constant and dissipation factor, good insulation and excellent mechanical properties, non-toxic, high thermal resistance, chemical resistance ,and the linear expansion coefficient is similar with Si,which is widely used in communication components, high power led, power electronic devices and

other fields.Special spec products can be produced upon requests.



PRODUCT PERFORMANCE
High thermal conductivity, high flexural strength, high temperature,Good electrical insulation
Low dielectric constant and loss

APPLICATIONS

  • RF/Microwave Components

  • Power Modulus

  • Power Transformers

  • High Power LED package

  • Laser Diode Sub-mounts

  • LED Chip Sub-mount

  • Microelectronic Packages

  • Transistors

​Our cooperating factory can applied the casting-tape process for the manufacturing of alumina substrate. With good thermal conductivity, insulation, thermal shock resistance, well resistance and anti-acid and

alkali etc., our ceramic substrates can be used in thick-film hybrid integrated circuits (HIC), LED ceramic radiating base, power module, semiconductor devices and other fields.



AlN Feature & Advantagement

- Product Name:

Aluminium Nitride / AIN Ceramic Substrate

- Material: Aluminum Nitride / AlN
- Typical Characteristics:

1. Very High Thermal Conductivity

2. Good Electrical Insulation

3. Corrosion Resistance

4. Good Flatness

- Typical Applications:

1. Power Electronic Device

2. High Brightness LED

3. Communication Device


Material Properties
Properties / Material 96% Alumina AlN
Density (g/cm3) 3.6 3.3
Color White Grey
Dielectric Strength (KV/mm) ≥17 ≥17
Dielectric Constant (1MHz) 10.6 8.9
Volume Resistivity (@20°C, Ω.cm) ≥1014 ≥1014
Thermal Conductivity (@20°C, W/mk) ≥24 ≥175
Thermal Expansion Coefficient (10-6/°C) 6.5-8.0 4.8
Flexural Strength (MPa) ≥350 ≥450




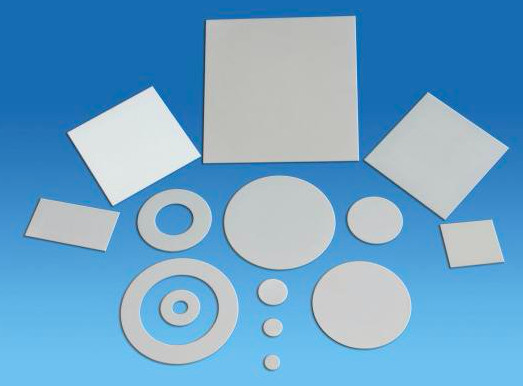

Regular Size
Thickness(mm)                                        lengthx width ( mm)
0.385



       2″* 2″

50.8mm*50.8mm





          3″* 3″

76.2mm*76.2mm



            4″* 4″

101.6mm*101.6mm

              4.5″* 4.5″

    114.3mm*114.3mm

0.5
0.635
1.0
                                            diameter(mm)
1.0

Φ16

Φ19

Φ20

Φ26

Φ30

Φ35

Φ40

Φ45

Φ50

Φ52

Φ60 Φ75 Φ80
1.2
1.5
2.0
2.5

Diameter (mm) Thickness (mm)

2''

(50.8mm )

OF 16mm

3''

(76.2mm)

OF22mm

4''

(100mm)

OF 30mm

5“

(125mm)

OF 42.5mm

6"

(150mm)

OF 47.5mm

0.385
0.5
0.65
1.0

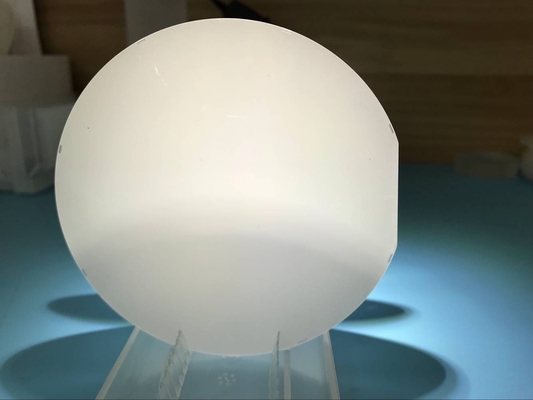

Polishing  Service

   Our AlN substrate can be polished(single and double polish) by the advanced machine which imported

from abroad. Ceramic substrate surface roughness can reach to 1nm without porous after being polished.

  It is perfectly suitable for the device application of small spec, high precision , wiring density and good stability.
