Customized Size Silicon Carbide Polishing Ceramic Bearing Ring 98% Purity
  • name
  • name
  • name

Customized Size Silicon Carbide Polishing Ceramic Bearing Ring 98% Purity

Brand Name: zmkj
Model Number: AlN
MOQ: 20pcs
Price: by case
Delivery Time: 10-20days
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Material:
SiC Ceramic Substrates
Applications:
Ceramic Plates For Semiconductor Processing
Color:
Black
Size:
Customized Size
Purity:
98%
Packaging Details:
25pcs cassette box
Supply Ability:
10000pcs
Highlight:

alumina ceramic substrate

,

aln ceramic substrate

Product Description

Silicon Carbide Ceramic Substrate,SIC ceramic parts, customized polishing silicon carbide ceramic bearing ring





1. Introduction:

1. SIC Cermaic has the advantages of super hardness, high wear-resisting,

good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.

Good smoothness, mechanical seal good, polishing surface and so on.



2. Forming methods includes:
Drying pressing
Isostatic pressing
Hot pressing casting


3. The application of our product:

Ceramic shaft,sleeve for different pump.
Ceramic plunger for high pressure cleaner.
Wearlessness,resistant acid-base and high intensity ceramic assembly

apply to petroleum,chemical industry.
Wearlesness,corrosion resistance,thermos table parts apply to precision machine.


Item SSIC
SIC Purity(%) >98
Bulk Density(g/cm3 ) 3.06-3.15
Max. Service Temp.(℃) 1800
Compressive strength (Mpa) ≥3900
Bending strength(MPa) 400-580
Fracture strength(MPa) 3.05-4.6
Young's modulus(Gpa) 380-410
Thermal conductivity W/MK 102.6
Thermal expansion a(1/℃) 4.02x10
Poisson's ratio 0.14
Apparent porosity % 0

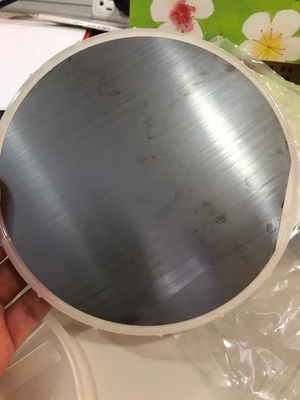

Regular Size
common size for substrates, other use product by customized
Diameter (mm) Thickness (mm)

2''

(50.8mm )

OF 16mm

3''

(76.2mm)

OF22mm

4''

(100mm)

OF 30mm

5“

(125mm)

OF 42.5mm

6"

(150mm)

OF 47.5mm

 0.385
0.5
0.65
1.0

Polishing  Service

   Our product can be polished(single and double polish) by the advanced machine which imported

from abroad. Ceramic substrate surface roughness can reach to 1nm without porous after being polished.

  It is perfectly suitable for the device application of small spec, high precision , wiring density and good stability.

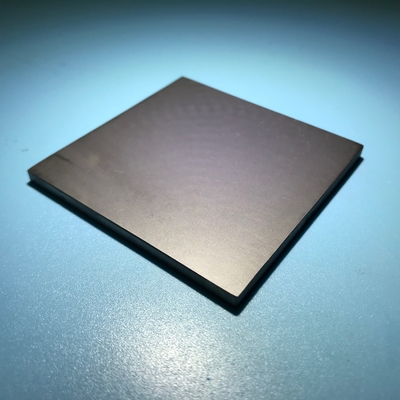

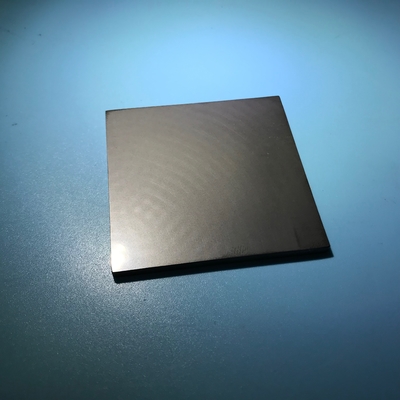

Customized Size Silicon Carbide Polishing Ceramic Bearing Ring 98% Purity 0Customized Size Silicon Carbide Polishing Ceramic Bearing Ring 98% Purity 1
